SERIES 9000

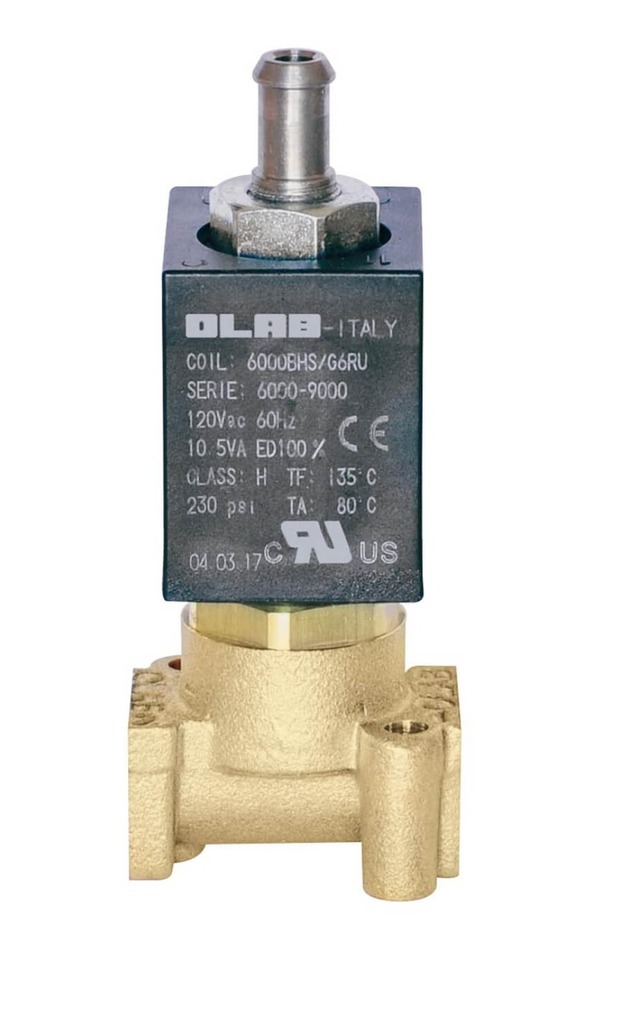

3/2 WAYS SERVICEABLE SOLENOID VALVES (22 MM)

serie 9000NC 3-2 VIE-802a5f.jpg

Category: DIRECT ACTION SOLENOID VALVES

Ways: 3/2

Surface treatments applicable: TM1-TM4 upon request

Notes: 0

The solenoid valves of the 9000 series are 3/2 ways, normally closed, serviceable, with 22 mm coil

  • Direct action (minimum pressure not required)
  • Suitable to be cleaned inside
  • Semi-professional applications
  • Small size (22mm coil)

Air, water, steam, food & beverage. Other fluids after checking compatibility.

The main construction components of the solenoid valves of the 9000 series are:

  • EN12165-CW617N forged brass body
  • EN12164-CW614N brass or AISI 303 stainless steel sleeve
  • AISI 430F stainless steel cores
  • AISI 302 stainless steel spring
  • Sealing gaskets: NBR, EPDM, FKM  for food contact, FKM  PLUS for food contact
  • 22mm coil H class

9000BH
close
9000BH
6000BH
close
6000BH

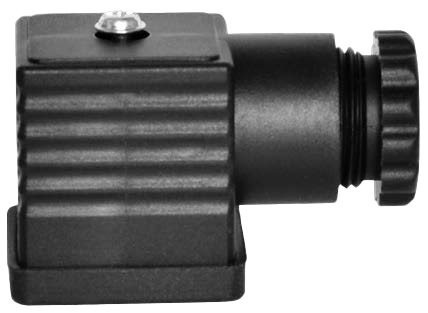

6000-CON
close
6000-CON
models

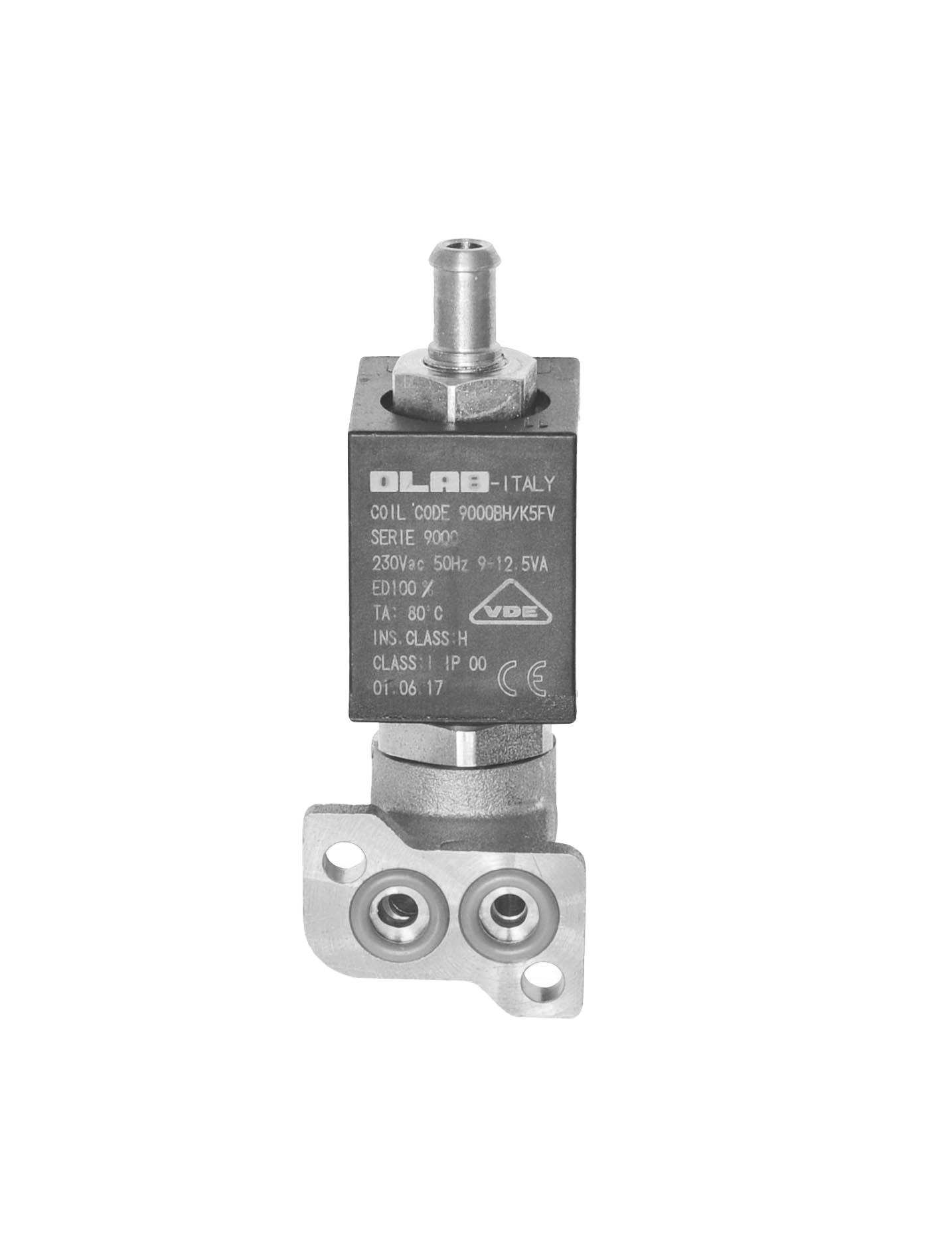

7509
close
7509

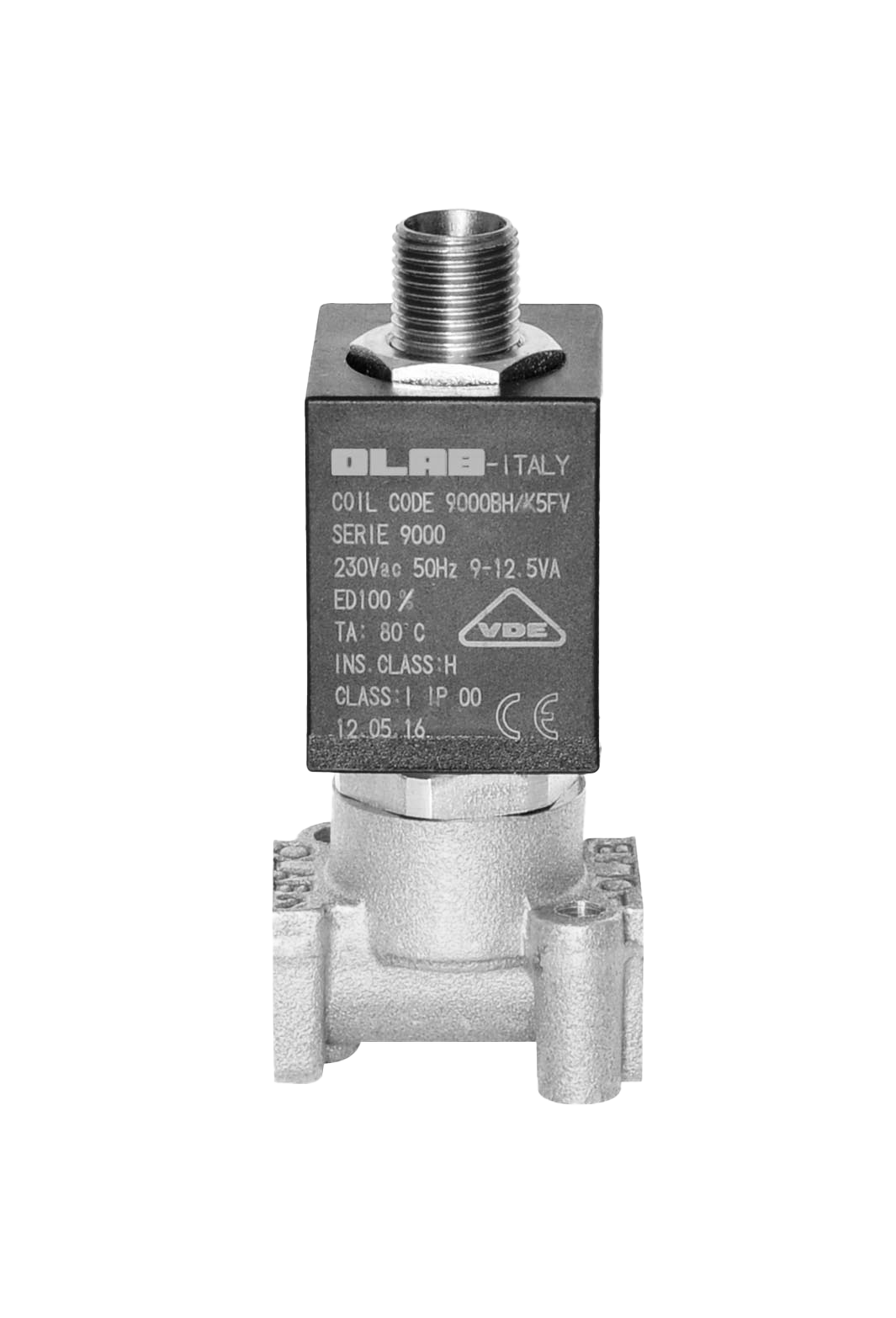

9300
