9000 N.O. SERIES

N.O. 2/2 ways serviceable solenoid valves food-grade thermoplastic - 22mm

 9000 N.O. SERIES N.O. 2/2 ways serviceable solenoid valves  food-grade thermoplastic - 22mm

Category: DIRECT ACTION SOLENOID VALVES

Ways: 2/2

Surface treatments applicable: TM1-TM4 upon request

Notes: 0

The solenoid valves of the 9000 series are 2/2 ways, normally open, serviceable and with 22mm coil
  • Direct action (minimum pressure not required)
  • Low pressure applications
  • Low cost
  • Small size (22mm coil)
Air, water, steam. Other fluids after checking compatibility.
The main construction components of the solenoid valves of the 9000 N.O. series are:
  • EN12165-CW617N or EN12164-CW614N forged brass body
  • EN12164-CW614N brass or AISI 303 stainless steel sleeve
  • AISI 430F stainless steel cores
  • AISI 302 stainless steel spring
  • Sealing gaskets: NBR, EPDM, FKM for food contact, FKM for food contact
  • 22mm coil H class
9000BH
9000BH

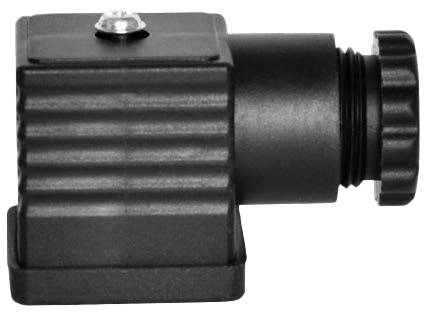

6000-CON
6000-CON
models
6091
6091
8141
8141
7586
7586
