SERIES 8000 2/2

N.C. 2/2 WAYS SERVICEABLE SOLENOID VALVES 30 mm d.n. Ø14

SERIES 8000 2/2 N.C. 2/2 WAYS SERVICEABLE SOLENOID VALVES 30 mm d.n. Ø14

Category: DIRECT ACTION SOLENOID VALVES

Ways: 2/2

Surface treatments applicable: TM1-TM4 upon request

Notes: 0

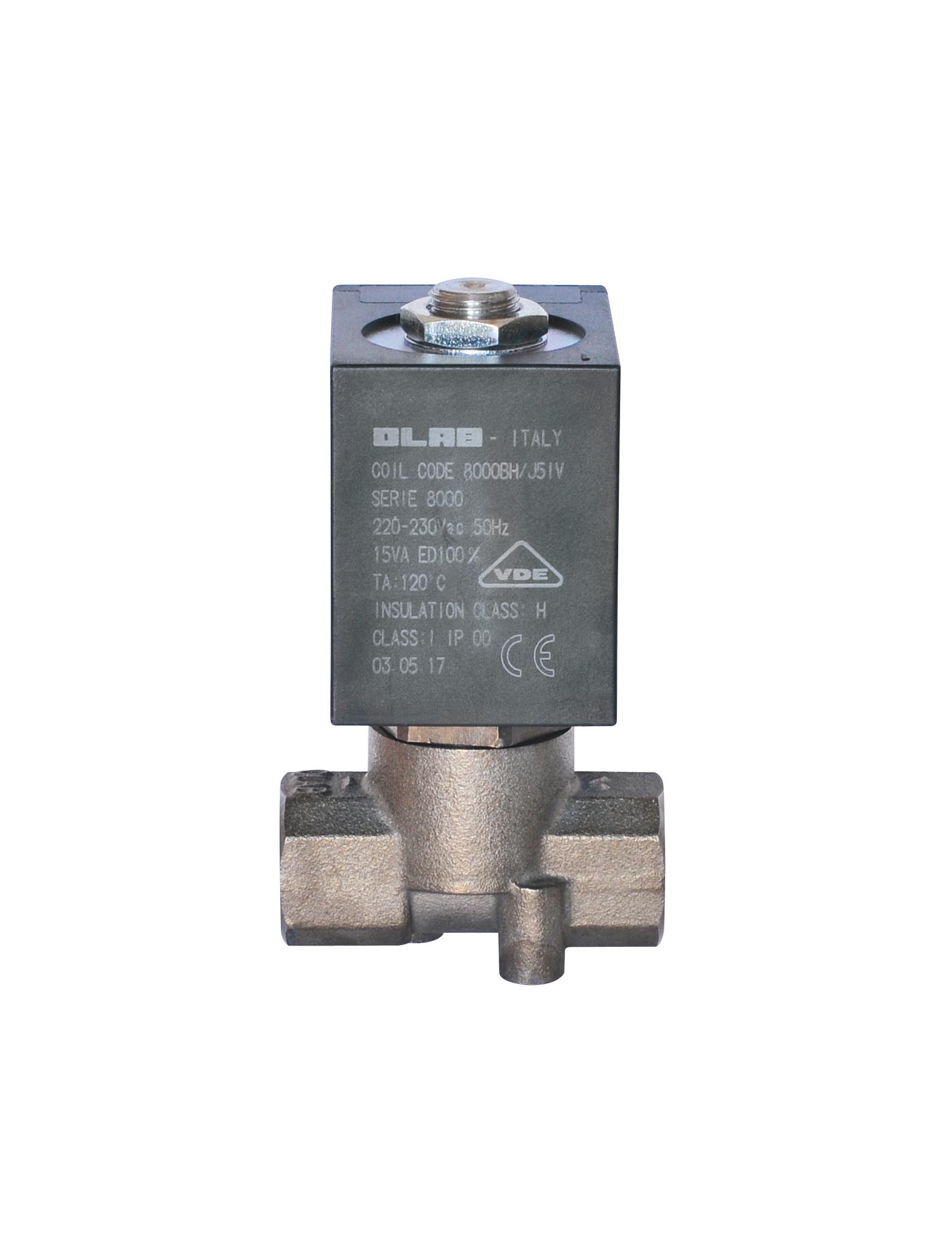

The solenoid valves of the 8000 series are 2/2 ways, normally closed, serviceable, with 30 mm d.n. Ø14 coil
  • Direct action (minimum pressure not required)
  • Semi-professional/professional applications
  • Serviceable
  • 30 mm d.n. Ø14 coil
Air, water, steam, industrial automation, car washes, compressors, industrial washing, food & beverage. Other fluids after checking compatibility.
  • EN12165-CW617N forged brass body
  • AISI 430F stainless steel cores
  • AISI 302 stainless steel spring
  • Sealing gaskets: NBR, EPDM, FKM  for food contact
  • Sealing gasket of sleeve/core made of PTFE
  • 30 mm class H coil
8000BH
8000BH

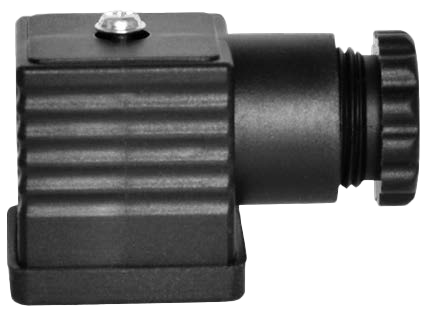

7000-CON
7000-CON
models
