SERIES 8000 3/2

N.C. 3/2 WAYS SERVICEABLE SOLENOID VALVES 30 mm d.n. Ø14

SERIES 8000 3/2 N.C. 3/2 WAYS SERVICEABLE SOLENOID VALVES 30 mm d.n. Ø14

Category: DIRECT ACTION SOLENOID VALVES

Ways: 3/2

Surface treatments applicable: TM1-TM4 upon request

Notes: 0

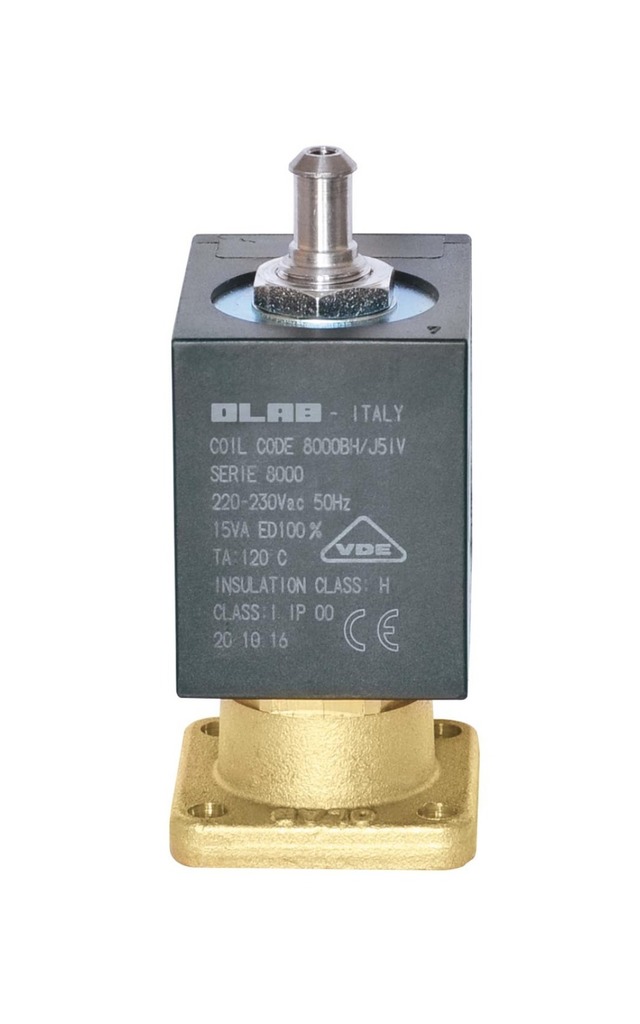

The 8000 series solenoid valves are 3/2 ways, normally closed, serviceable, with 30 mm coil, DN d.n. Ø14
  • Azionamento diretto (non è richiesta una pressione minima per l’azionamento)
  • Elettrovalvole per utilizzo semiprofessionale/professionale
  • Ispezionabili
  • Bobina da 30 mm Ø14
Air, water, steam, industrial automation, car washes, compressors, industrial washing, food & beverage. Other fluids after checking compatibility.
The main construction components of the solenoid valves of the 8000 3/2 ways series are:
  • EN12165-CW617N forged brass body
  • EN12164-CW614N brass sleeve
  • AISI 430F stainless steel cores
  • AISI 302 stainless steel spring
  • Sealing gaskets: NBR, EPDM, FKM for food contact, FKM PLUS for food contact
  • Sleeve/fixed core sealing gasket made of PTFE
  • 30 mm H class coil

8000BH
8000BH

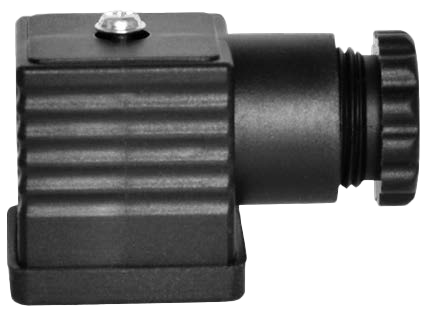

7000-CON
7000-CON
models

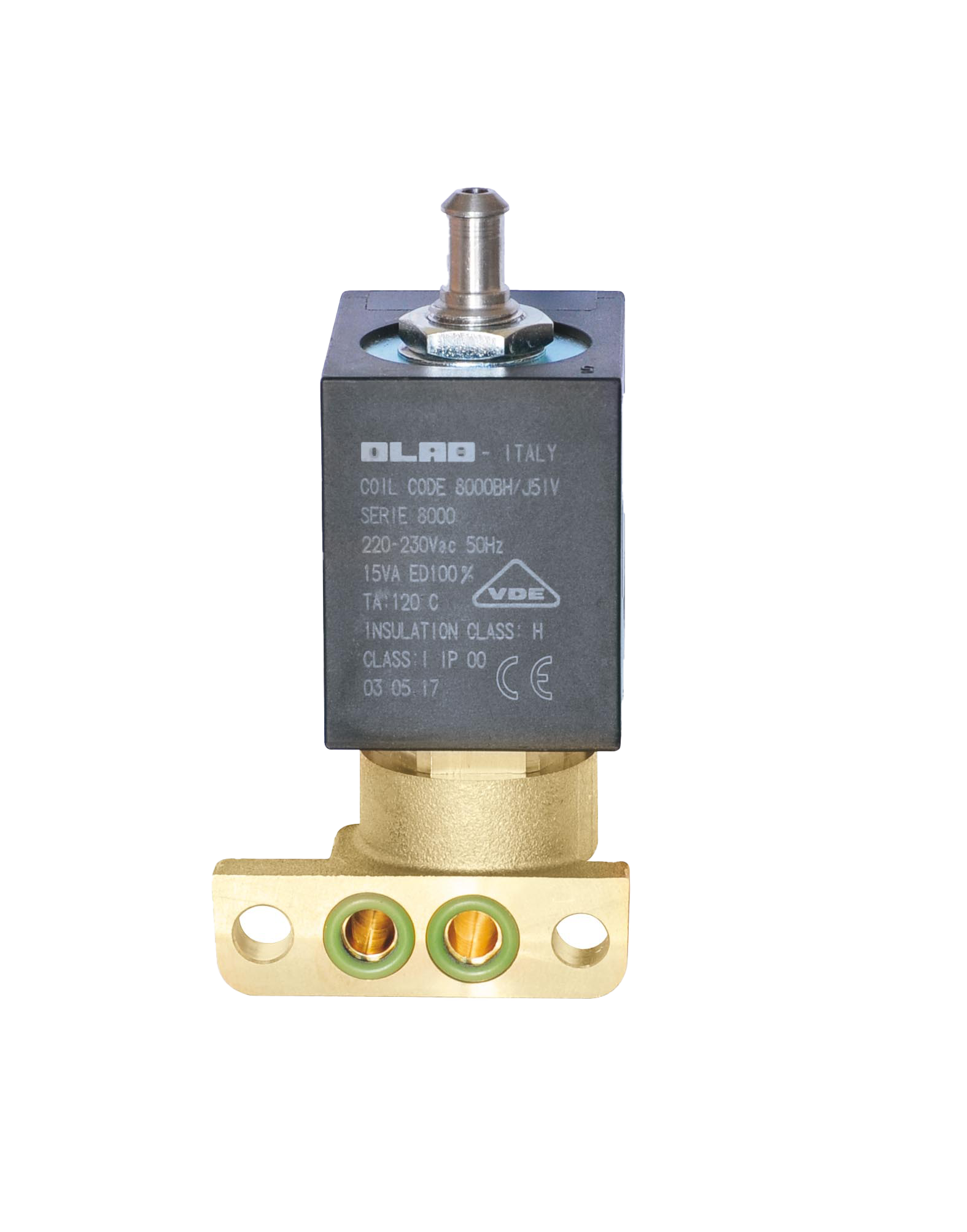

8000-1
8000-1

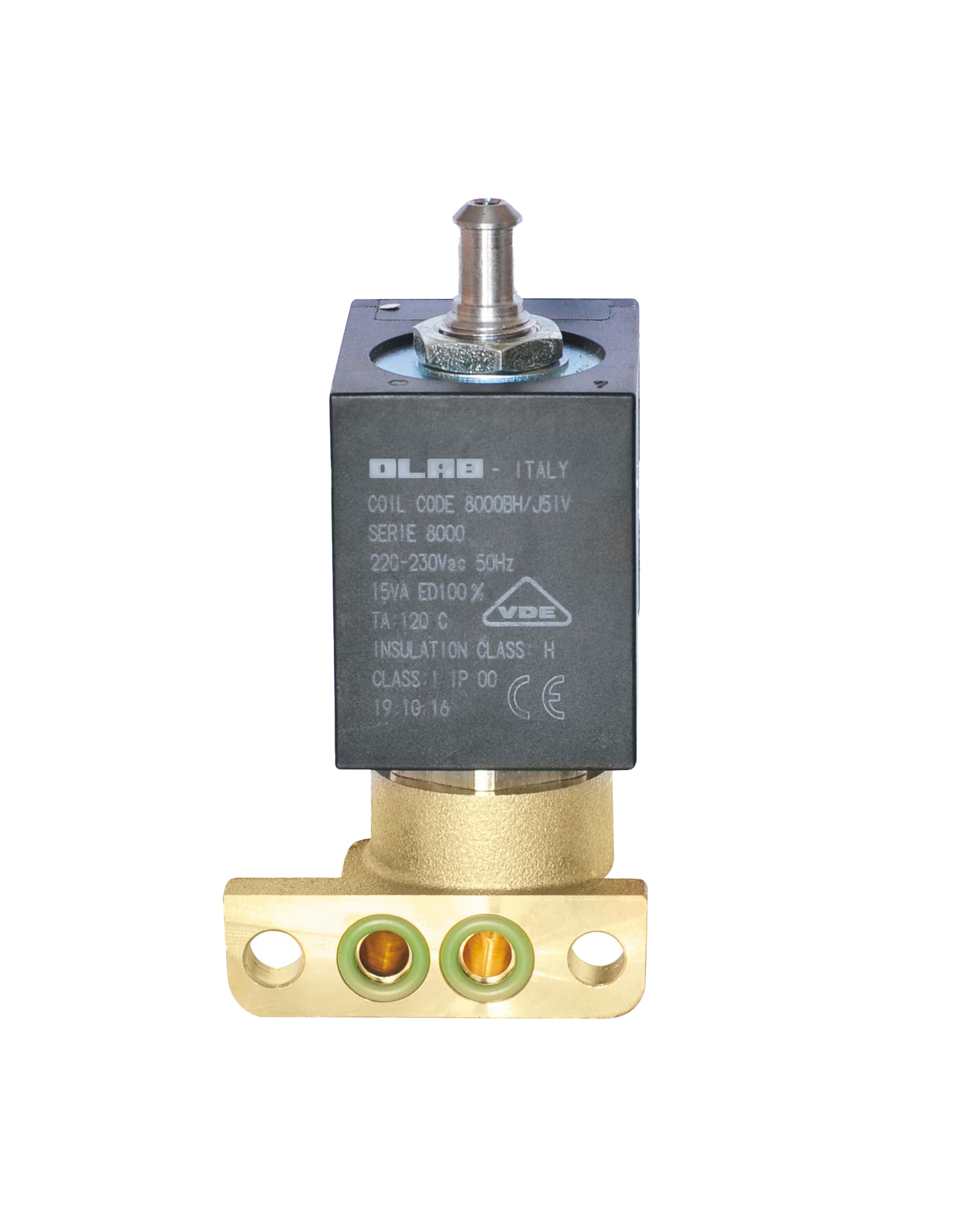

8000-3
8000-3

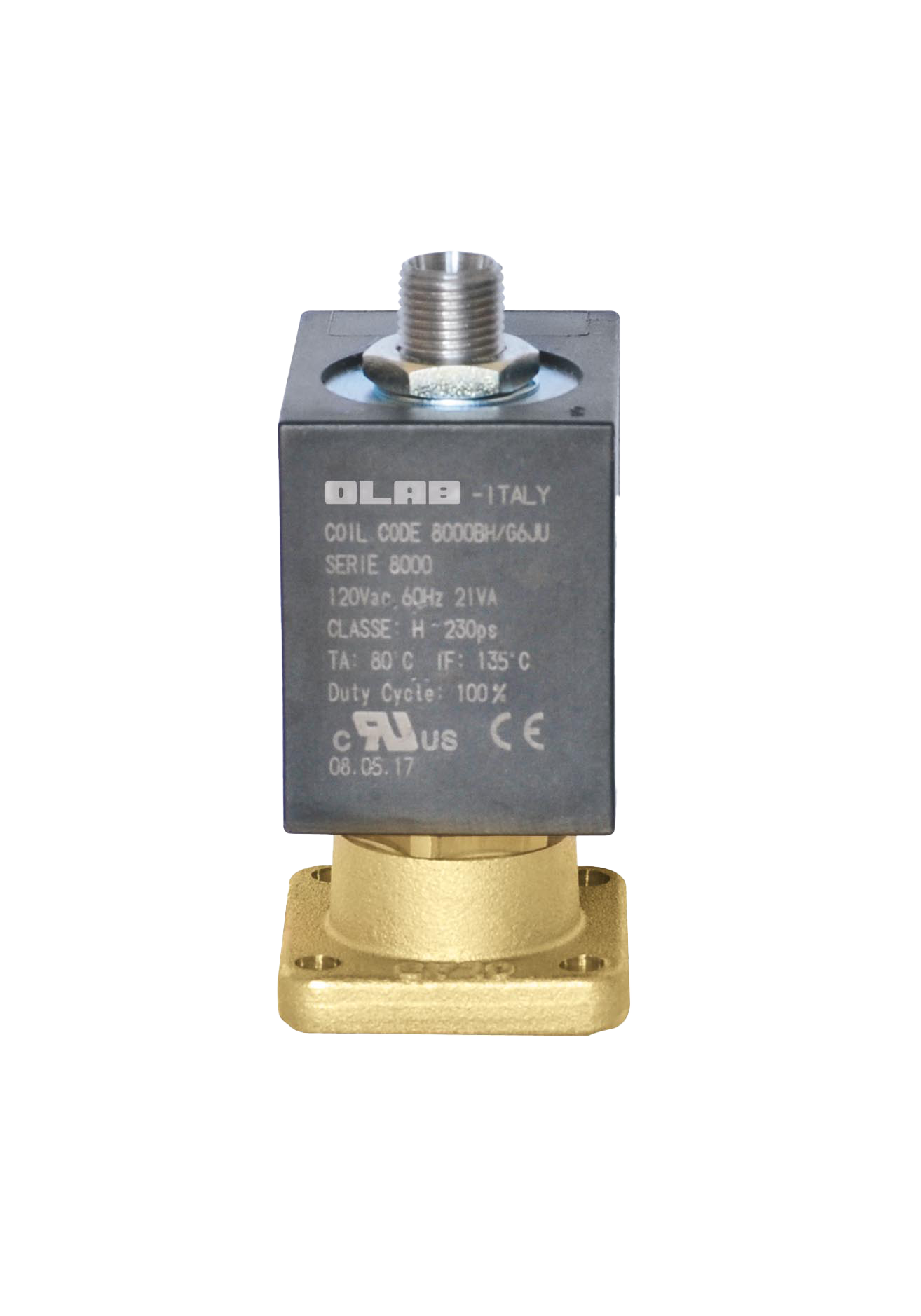

8000-5
8000-5

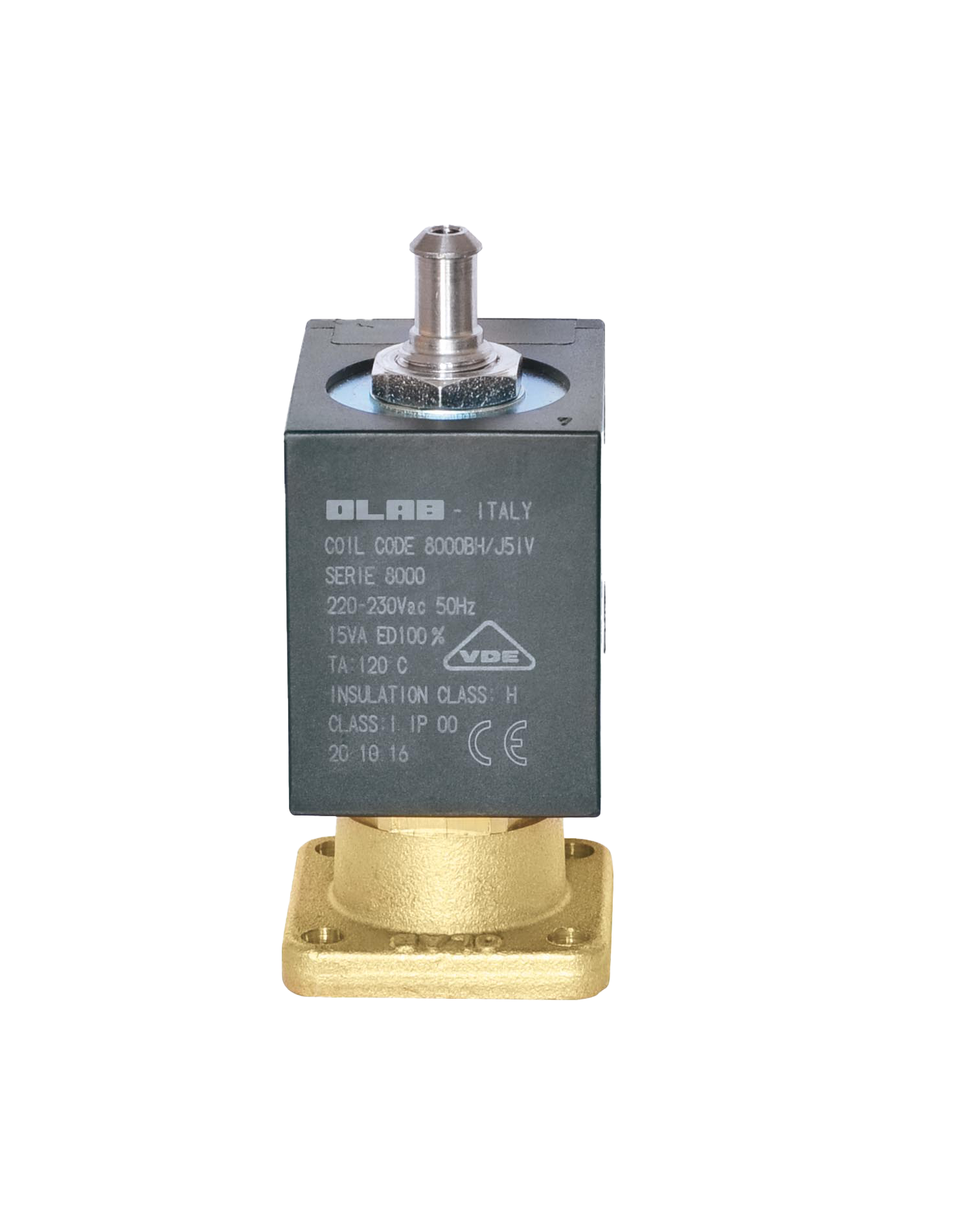

8000-7
8000-7
