SERIES 8500

N.C. 3/2 SOLENOID VALVES SERVICEABLE - ruby sealing - 30 mm d.n. Ø14

SERIES 8500 N.C. 3/2 SOLENOID VALVES SERVICEABLE -   ruby sealing - 30 mm d.n. Ø14

Category: DIRECT ACTION SOLENOID VALVES

Ways: 3/2

Surface treatments applicable: TM1-TM4 upon request

Notes: 0

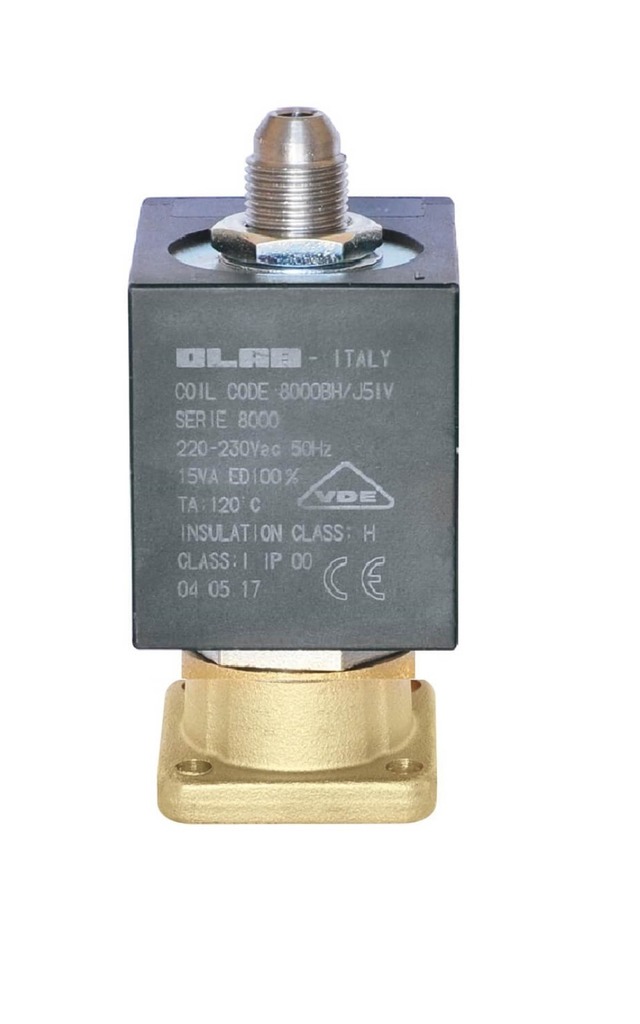

The solenoid valves of the 8500 series are 3/2 ways, normally closed, serviceable, with ruby seal and 30 mm coil d.n. Ø14
  • Direct action (minimum pressure not required)
  • Professional applications
  • Sealing gasket made of sintetic ruby for the maximum resistance
  • Serviceable
  • Perfect for demanding applications (high no. of operations)
Water, food & beverage. Other fluids after checking compatibility.
The main construction components of the solenoid valves of the 8500 series are:
  • EN12165-CW617N forged brass body
  • AISI 304L stainless steel welded to the fixed core
  • AISI 303 stainlees steel sealing DN insert
  • AISI 430F stainless steel cores
  • AISI 302 stainless steel spring
  • DN sealing gasket and third way made of sintetic ruby
  • Sealing O-ring for the sleeve made of FKM  for food contact
  • 30 mm H class coil
8000BH
8000BH

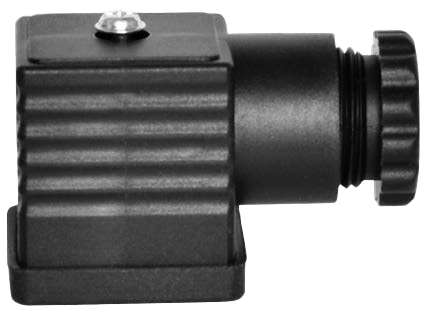

7000-CON
7000-CON
models
8500-7
8500-7
8500-9
8500-9
8600-7
8600-7
8600-9
8600-9
8650-7
8650-7
8650-9
8650-9
8700-7
8700-7
8700-9
8700-9
