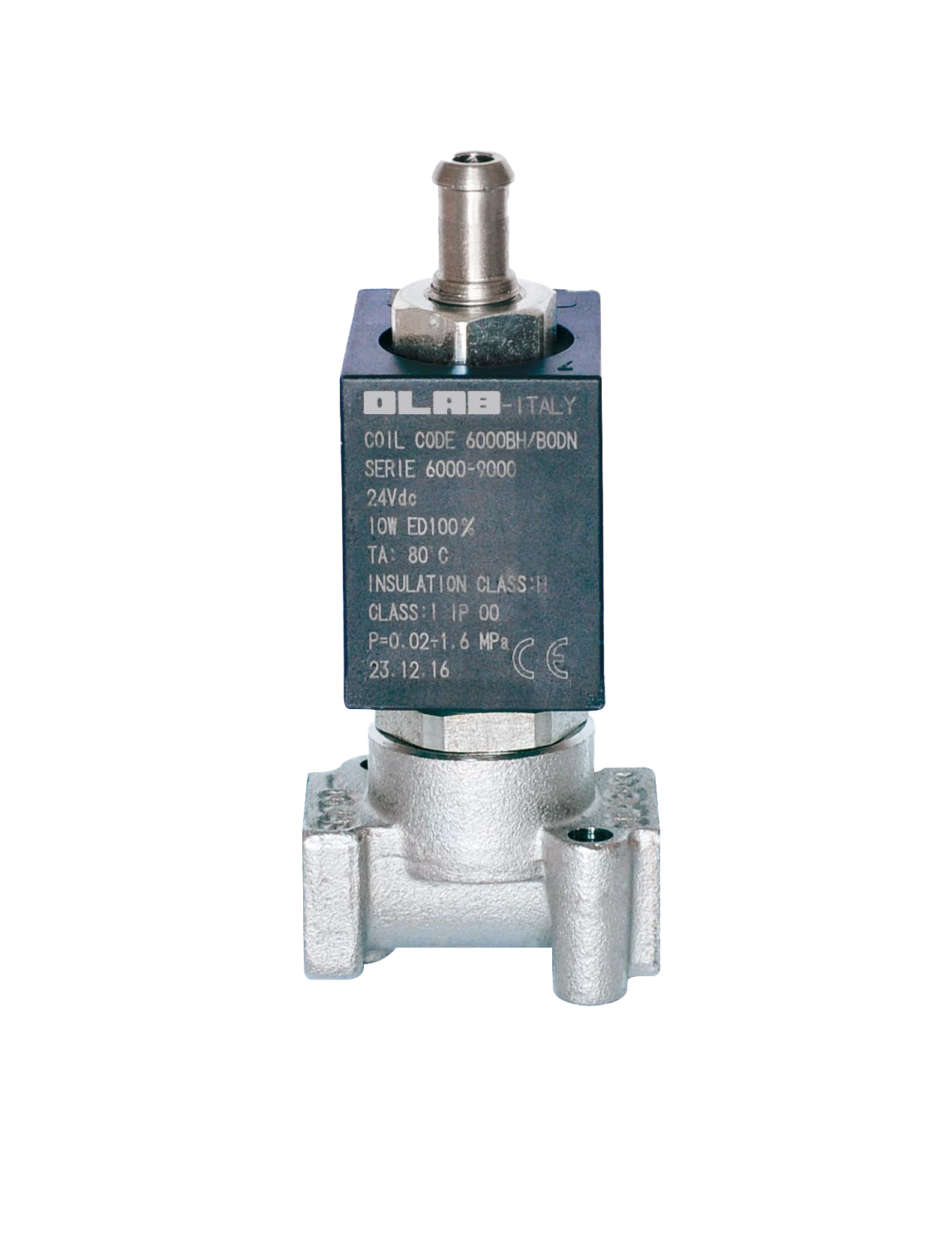

SERIES 9500

3/2 WAYS SERVICEABLE SOLENOID VALVES (22 MM) -INOX INSERT

SERIES 9500 3/2 WAYS SERVICEABLE SOLENOID VALVES (22 MM) -INOX INSERT

Category: DIRECT ACTION SOLENOID VALVES

Ways: 3/2

Surface treatments applicable: TM1-TM4 upon request

Notes: 0

The 9500 series solenoid valves are 3/2 way, serviceable, with stainless steel insert and 22 mm coil
  • Direct action (minimum pressure not required)
  • Suitable to be cleaned inside
  • Semi-professional applications
  • DN insert made of stainless steel for the maximum resistance
  • Small size (22mm coil)
Air, water, steam, food & beverage. Other fluids after checking compatibility.
The main construction components of the solenoid valves of the 9500 series are:
  • EN12165-CW617N forged brass body
  • EN12164-CW614N brass or AISI 303 stainless steel sleeve
  • AISI 303 stainless steel insert (DN)
  • AISI 430F stainless steel cores
  • AISI 302 stainless steel spring
  • Sealing gaskets: NBR, EPDM, FKM  for food contact, FKM  PLUS for food contact
  • 22mm coil H class
9000BH
9000BH

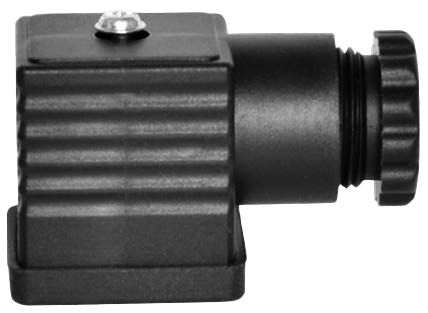

6000-CON
6000-CON
models

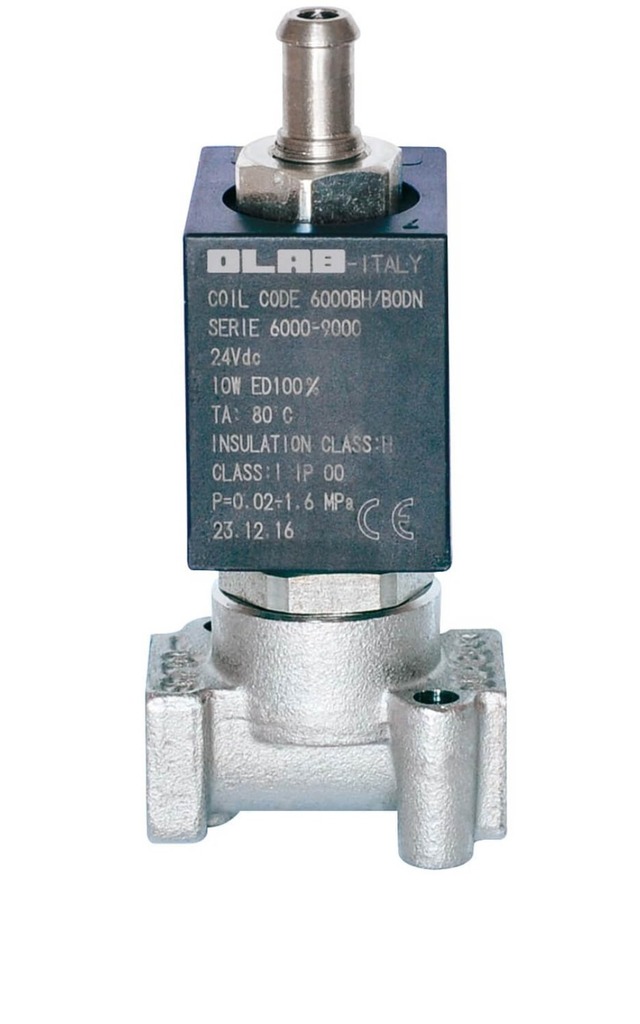

9500
9500

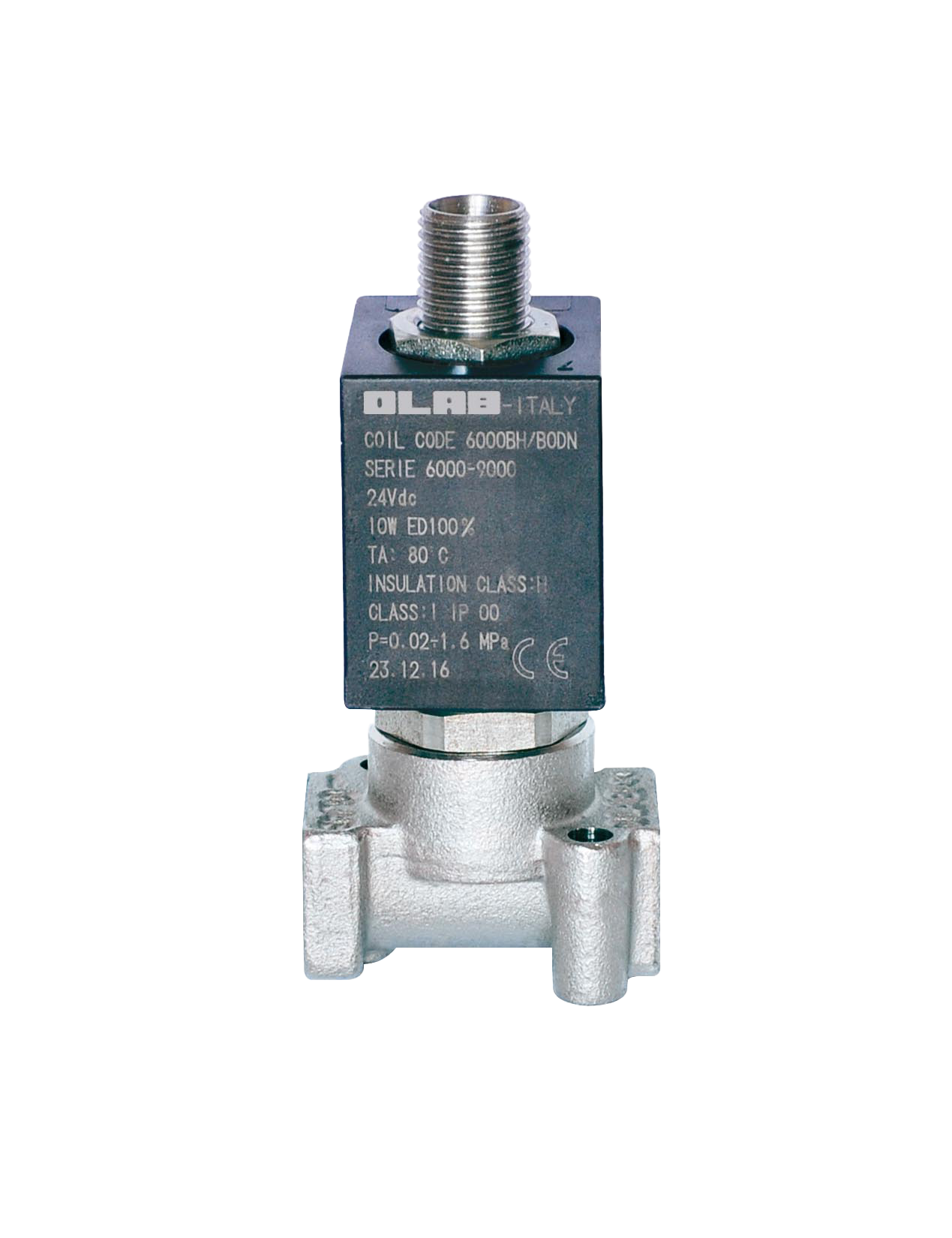

9600
9600
