SERIES 9700

2/2 WAYS N.C. SERVICEABLE SOLENOID VALVES (22 MM) - INOX INSERT

SERIES 9700 2/2 WAYS N.C. SERVICEABLE SOLENOID VALVES  (22 MM) - INOX INSERT

Category: DIRECT ACTION SOLENOID VALVES

Ways: 2/2

Surface treatments applicable: TM1-TM4 upon request

Notes: 0

The solenoid valves of the 9700 series are 2/2 ways, normally closed, serviceable, with stainless steel insert and 22 mm coil
  • Direct action (minimum pressure not required)
  • Serviceable to be cleaned/or for maintenance
  • Semi-professional applications
  • DN insert made of stainless steel for the maximum resistance
  • Small size (22mm coil).
Air, water, steam, food & beverage. Other fluids after checking compatibility.
  • The main construction components of the solenoid valves of the 9700 series are:
  • EN12165-CW617N forged brass body
  • EN12164-CW614N brass or AISI 303 stainless steel sleeve
  • AISI 303 stainless steel insert (DN)
  • AISI 430F stainless steel cores
  • AISI 302 stainless steel spring
  • Sealing gaskets: NBR, EPDM, FKM  for food contact, FKM PLUS for food contact
  • 22mm coil H class
9000BH
9000BH

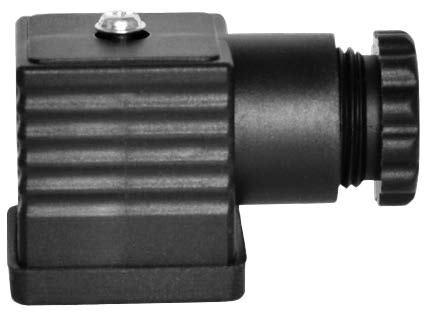

6000-CON
6000-CON
