SERIES 22000

VIBRATION PUMPS

SERIES 22000 VIBRATION PUMPS
FOOD CONTACT
APPROVATO NSF IDONEO AL CONTATTO CON ALIMENTI UL VDE

Category: SELF-PRIMING VIBRATION PUMPS

Notes: 0

SELF-PRIMING VIBRATION PUMPS
BODY: PLASTIC OR OUTPUT IN BRASS CW510L OT57 NSF-USA
STAINLESS STEEL PISTON
DEDICATED SEALING GASKET TO GUARANTEE MAXIMUM DURABILITY OVER TIME
COIL 25W CLASS COIL F
DESIGNED FOR PROFESSIONAL COFFEE MACHINES
PS: 25 BAR TS: 5 °C ÷ +35 °C

NSF approved
FOOD CONTACT
UL e VDE Certificated
Maximum Reliability
Excellent build quality
Maximum duration over the time
100% tested with guaranteed traceability for each individual pump from the serial number

Food & Beverage, steam irons, carpet washers, medical and dental appliances, drink dispensers, water gasifiers, smoke machines, air conditioners.

The main construction components of the pumps of the 22000 series are: •

  •  Coil, II isolation class
  •  Reinforcement/Bushers: trated steel
  •  Pump body: polyamide fiber glass reinforced
  • Gasket: NBR
  • Core: stainless steel
  • Springs: stainless steel
  • Sealing ball: Nylon

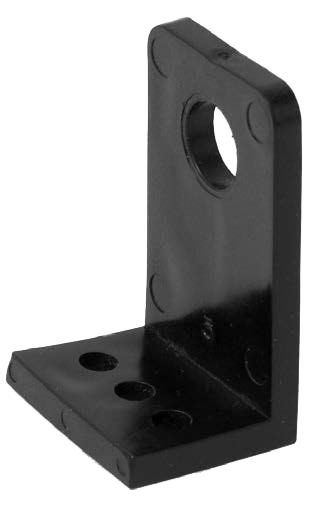

22000-23
22000-23
close
22000-23
22000-23
22000am03
22000am03
close
22000am03
22000am03

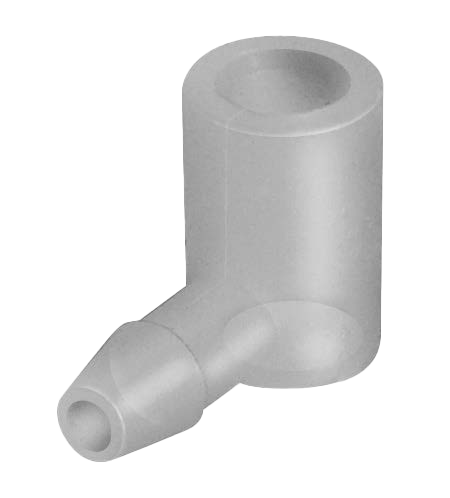

23300-b
23300-b
close
23300-b
23300-b

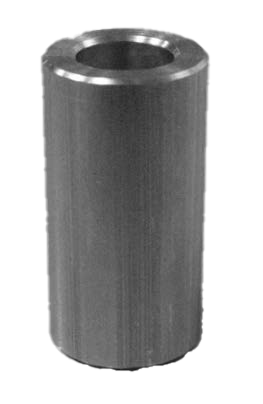

23200-d
23200-d
close
23200-d
23200-d

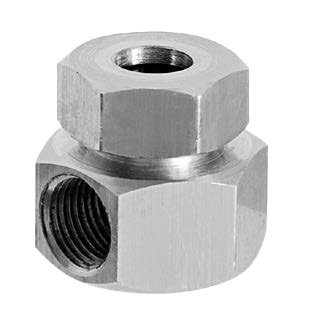

23810
23810
close
23810
23810

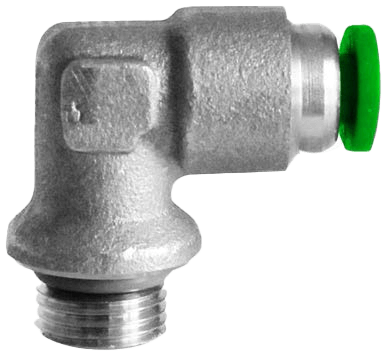

8685
8685
close
8685
8685

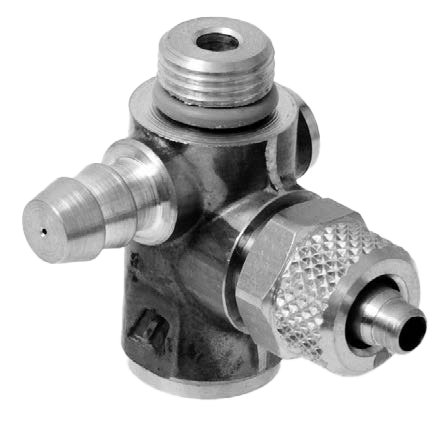

23000-a-c
23000-a-c
close
23000-a-c
23000-a-c

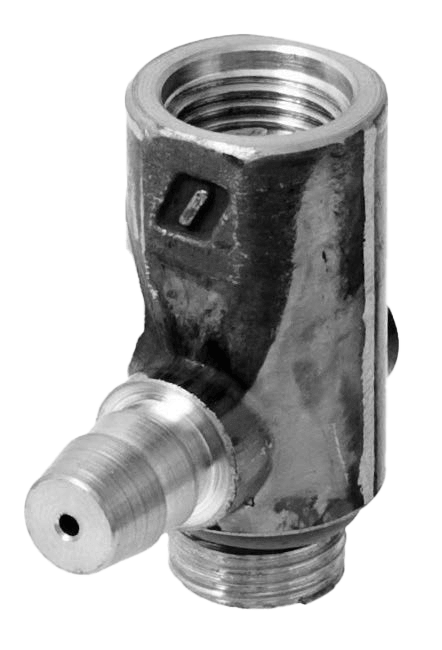

23000-d-f
23000-d-f
close
23000-d-f
23000-d-f
models

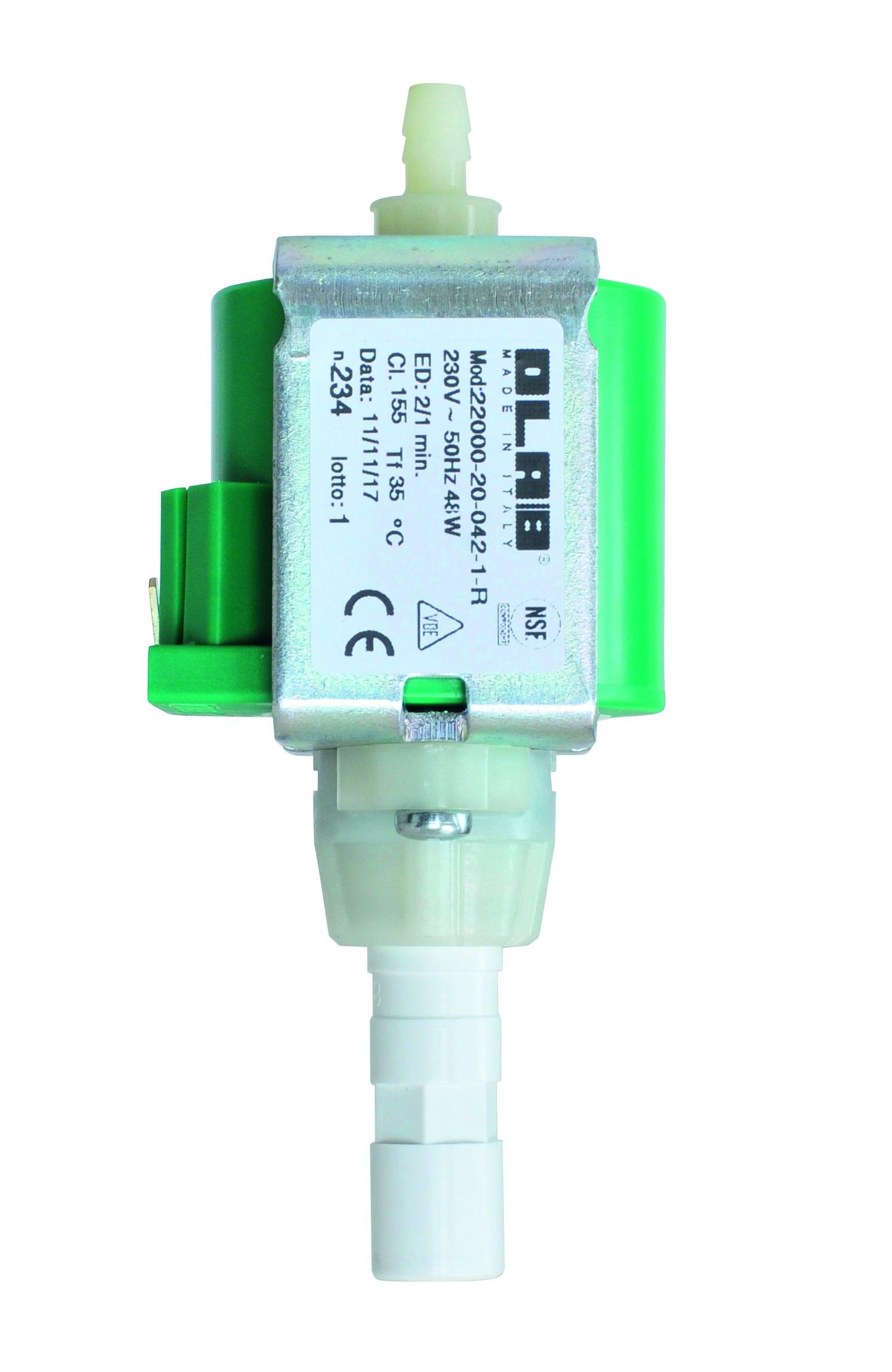

22000
22000
close
22000
22000

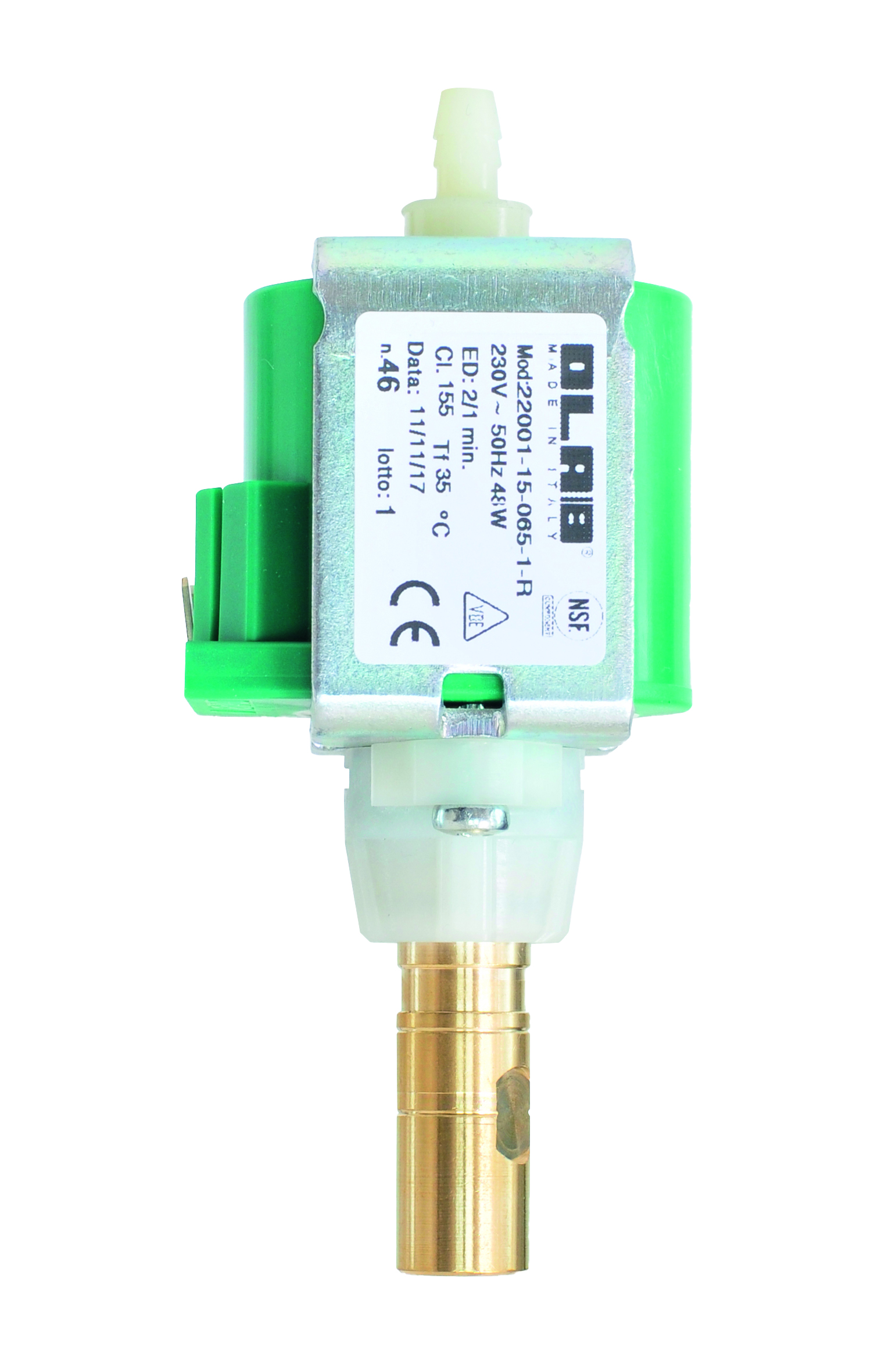

22001
22001
close
22001
22001
