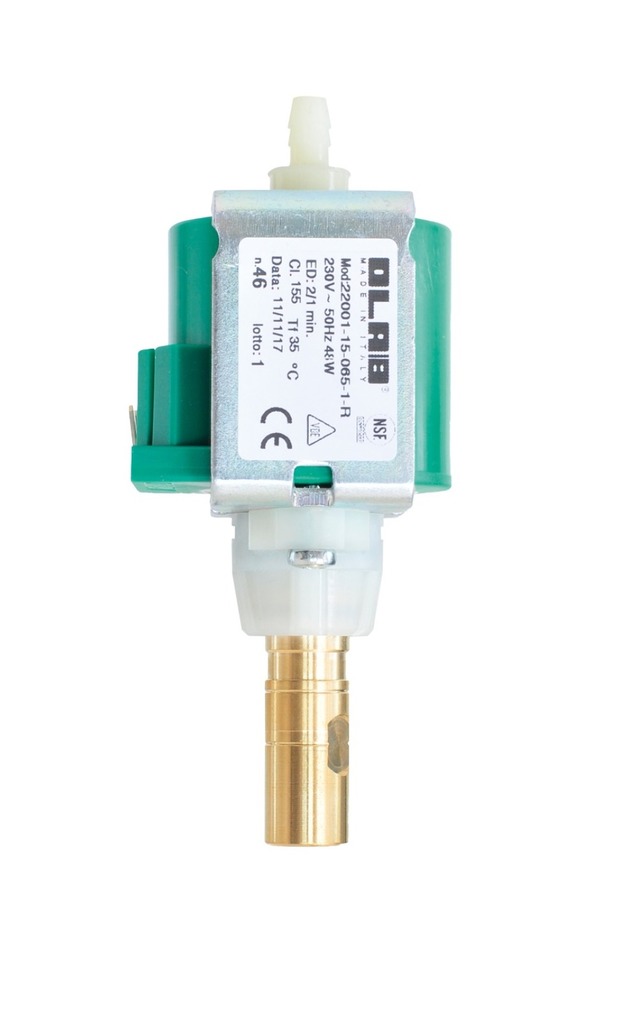

SERIES 22000

VIBRATION PUMPS

FOOD CONTACT
APPROVATO
NSF IDONEO AL CONTATTO
CON ALIMENTI UL VDE

Category: SELF-PRIMING VIBRATION PUMPS

Surface treatments applicable: TM4 upon request

Notes: 0

SELF-PRIMING VIBRATION PUMPS In this type of pump, the fluid inside the vibration pump flows due to vibration of the plunger which is plunged into the magnetic field generated by the coil. Compression and depression alternate due to this vibration inside the pump which results in a pumping action. The pump is of the self-priming type but is not suitable for dry operation or for pumping when back pressures are present on the outlet side. The piston (that moves alternatively at the same supply frequency) enables a passive suction travel during the electromagnetic active phase and an active thrust travel of the fluid during the electromagnetic passive phase. The pump is provided with an integrated diode, and the external casing is equipped with a special pocket for thermoprotective devices.

  • NSF approved: Food Contact
  • UL and VDE approval
  • 100% tested, each pump bears these information:
    • Date: day; months; year
    • Serial number
    • Production batch That proving that is has passed the test and allo wing traceability.

Food & Beverage, steam irons, carpet washers, medical and dental appliances, drink dispensers, water gasifiers, smoke machines, air conditioners.

The main construction components of the pumps of the 22000 series are: •

  •  Coil, II isolation class
  •  Reinforcement/Bushers: trated steel
  •  Pump body: polyamide fiber glass reinforced
  • Gasket: NBR
  • Core: stainless steel
  • Springs: stainless steel
  • Sealing ball: Nylon
