Category: SELF-PRIMING VIBRATION PUMPS
Notes:
SELF-PRIMING VIBRATION PUMPS

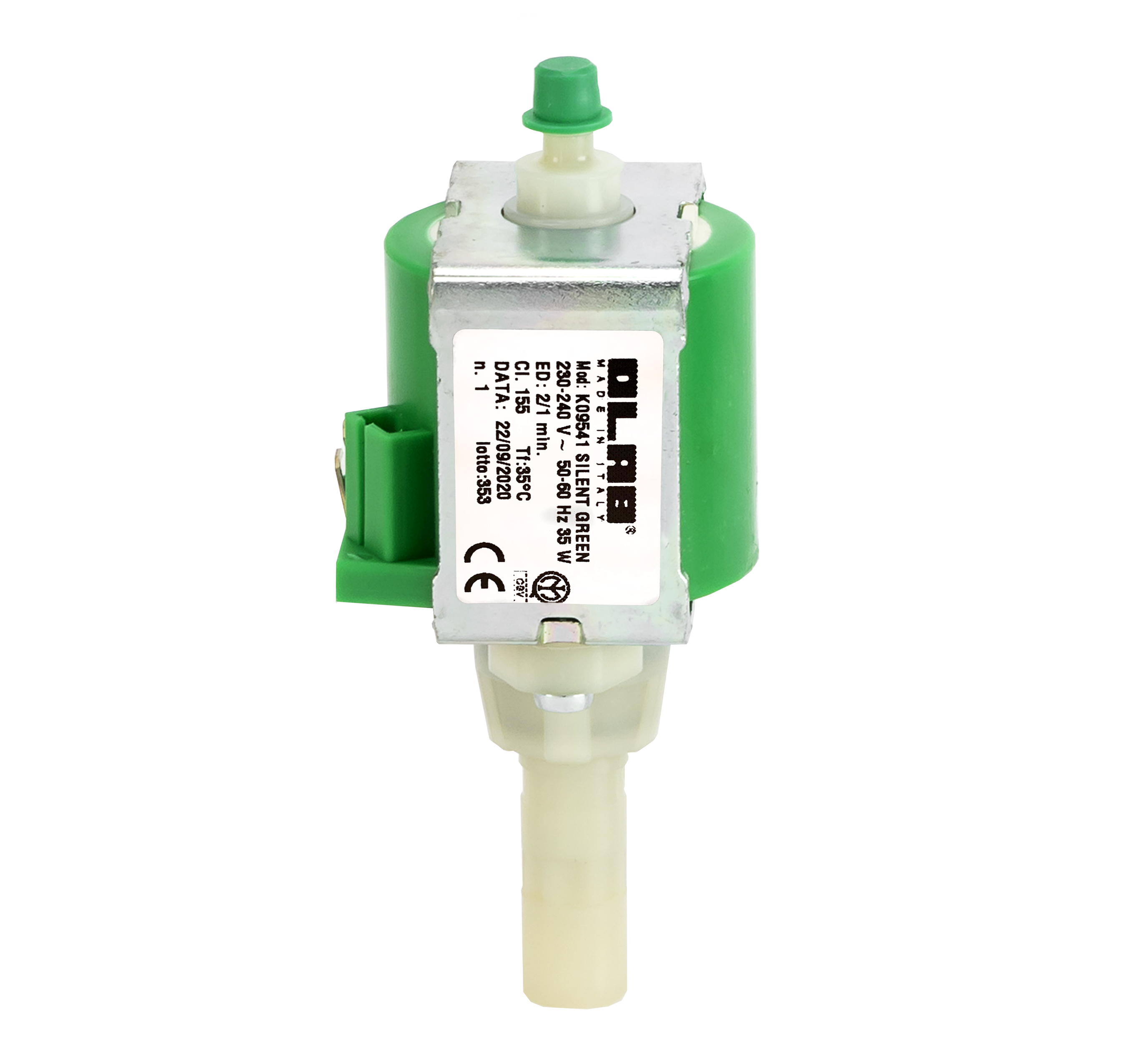

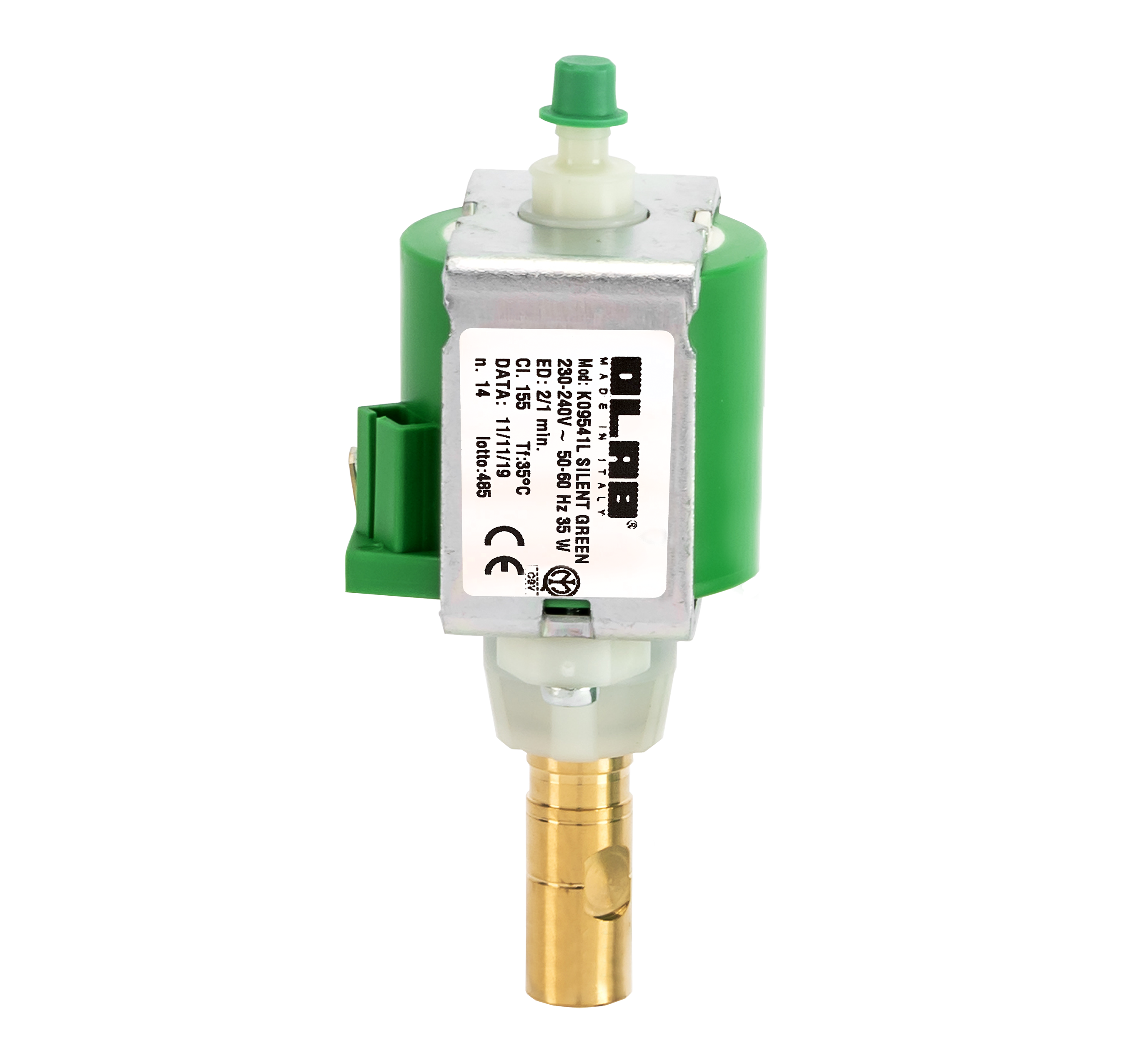

BODY: PLASTIC OR OUTPUT IN BRASS CW510L OT57 NSF-USA
STAINLESS STEEL PISTON
DEDICATED SEALING GASKET TO GUARANTEE MAXIMUM DURABILITY OVER TIME
COIL 25W CLASS COIL F
DESIGNED FOR PROFESSIONAL COFFEE MACHINES WHERE A SILENT AND RESISTANT
PUMP IS REQUIRED, WITH SIGNIFICANT ENERGY SAVINGS
PS: 25 BAR
TS: 5 °C ÷ +35 °C
Maximum Silence
High performance with only 35w
Lower energy consumption
100% tested with guaranteed traceability for
each individual pump from the serial number
Maximum duration over the time
FOOD & BEVERAGE, IRONS, CARPET WASHERS, MEDICAL EQUIPMENT, DENTAL EQUIPMENT, BEVERAGE DISTRIBUTORS, AIR CONDITIONERS, WATER GASIFIERS, SMOKE MACHINES.
COIL IN INSULATION CLASS II AND TEMPERATURE CLASS F. COMPASS ARMOR IN TREATED STEEL, PUMP BODY IN POLYAMIDE REINFORCED IN GLASS FIBER, GASKETS IN NBR / HNBR, STAINLESS STEEL CORE, STAINLESS STEEL SPRINGS, STAINLESS STEEL SEALING BALL.

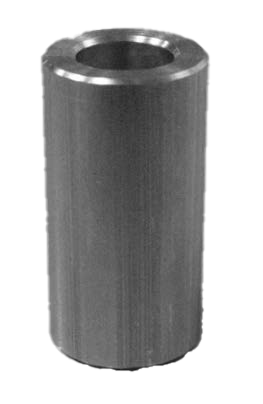

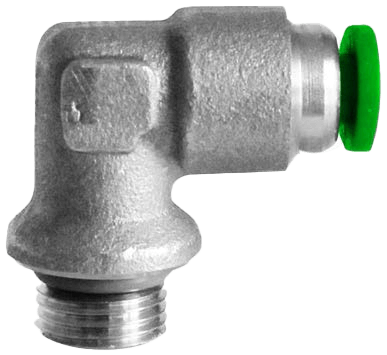

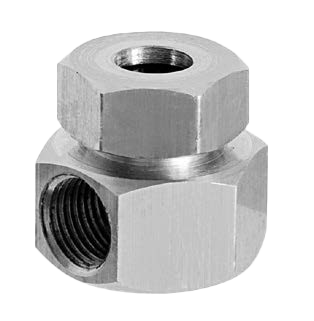

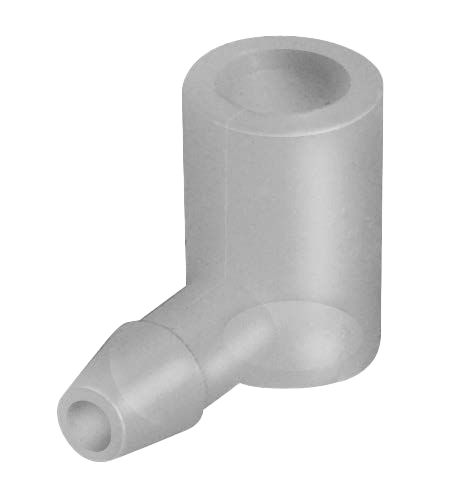

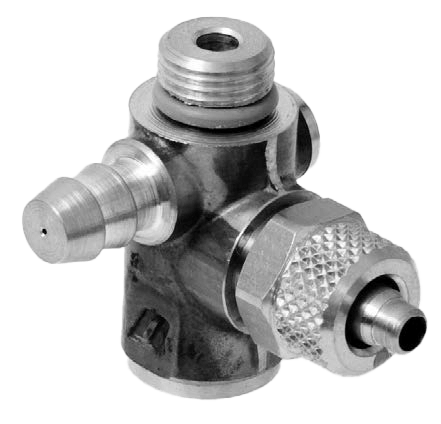

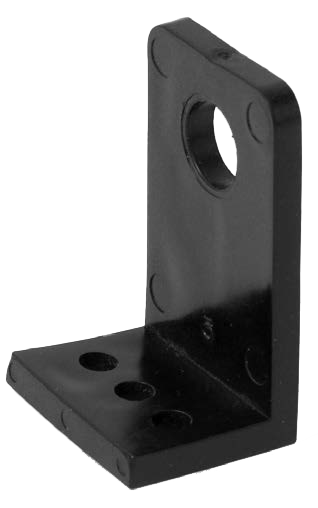

For correct installation, the pump must be mounted with the appropriate accessories: thermal protector (an03), rubber support (22000/23), various connections for inlet and outlet (23200-D, 23300-B, 23810, 8685). The accessories also include self-priming valves in various configurations that guarantee start-up in the presence of back pressure. Perfect cleaning of the system is recommended.
