SERIES K10067-K09611

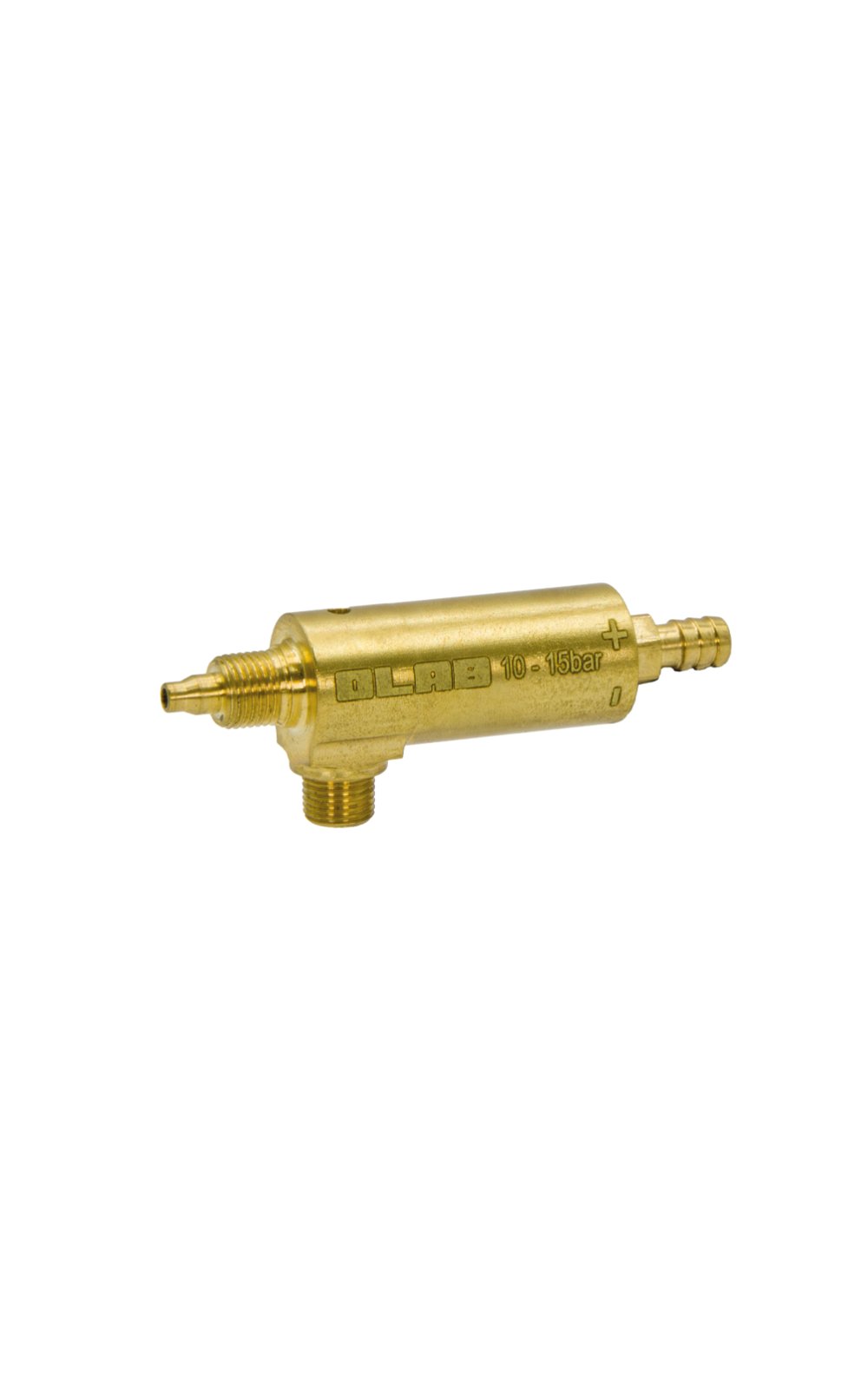

CW510L OT57 BRASS PRESSURE REGULATING VALVE WITH ADJUSTABLE CALIBRATION WITH FKM SEALING GASKETS

FLUID
SERIES K10067-K09611
FOOD CONTACT
CE 28384 IDONEO AL CONTATTO CON ALIMENTI OT57

Category: BRASS VALVES

Notes:

  • PS: 9÷14 e 10÷15 bar (130÷ 203 and 145÷217 psi)
  • CERTIFICATIONS: CE

Technical Data Sheet

The pressure regulating valve with adjustable setting from the Series K10067-K09611 is designed to deliver high performance in professional hydraulic systems where maximum reliability, precision, and compatibility with food-grade fluids such as water and steam are essential.

Manufactured with a CW510L OT57 brass body compliant with NSF USA standards, it ensures excellent corrosion resistance and full food contact suitability, while the FKM sealing elements provide outstanding durability even under demanding operating conditions.


The integrated adjustment mechanism, supported by a stainless steel AISI 302 spring, allows for stable and accurate pressure control, with two selectable calibration ranges: 9÷14 and 10÷15 bar (130÷203 and 145÷217 psi), enabling flexible adaptation to specific system requirements. Its compact and versatile design, featuring a 1/8" male gas threaded connection and push-in fitting for Ø4–6 mm tubing, ensures easy installation even in confined spaces, without compromising efficiency and reliability.


Thanks to its combination of certified materials, functional engineering, and optimized dimensions, this valve represents a technically and commercially ideal solution for applications where safety, hygiene, and uninterrupted service are critical.
Fully compliant with CE standards.


Technical features:

  • Pressure regulating valve with adjustable calibration
  • CW510L OT57 NSF USA brass body
  • AISI 302 stainless steel spring
  • FKM sealing gaskets
  • Calibration pressures at 9÷14 e 10÷15 bar (130÷ 203 and 145÷217 psi)
  • Male thread gas 1/8" connections
  • Stocking attachment for Ø4-6 mm pipe
  • Designed for professional hydraulic systems where compatibility with food fluids (water, steam) is required

SUITABLE FOR FOOD CONTACT
Made with a CW510L OT57 NSF USA brass body and FKM seals, this valve ensures high compatibility with food-grade fluids such as water and steam, making it ideal for professional food & beverage applications.


ADJUSTABLE SETTING RANGE

The pressure can be precisely adjusted within the range of 9÷14 and 10÷15 bar (130÷203 and 145÷217 psi), allowing flexible adaptation to the specific needs of the system.


SAFE AND PRECISE ADJUSTMENT SYSTEM

The integrated adjustment mechanism, supported by an AISI 302 stainless steel spring, ensures stable operation, long-term reliability, and accurate pressure control.


COMPACT DIMENSIONS

Thanks to its male gas 1/8" threaded connection and push-in fitting for Ø4-6 mm tubing, this valve is designed to be easily integrated into tight spaces while maintaining high performance.
