The electronic expansion valve drivers have the purpose of regulating the superheat of the refrigerant leaving the evaporator in order to keep it within a preset value (heating setpoint). To measure the actual heating, the driver uses two probes, one measures the suction temperature and the other the evaporation pressure of the refrigerant at the outlet of the evaporator. From the evaporation pressure the driver calculates the saturated evaporation temperature (depending on the type of refrigerant) and from the difference between the suction temperature and the saturated evaporation temperature, the driver calculates the real superheat.
High regulation accuracy. Easy to install. Compatible with our expansion valve (44000 series)
Developed for the electronic regulation of the superheat of the refrigerant leaving the evaporator.

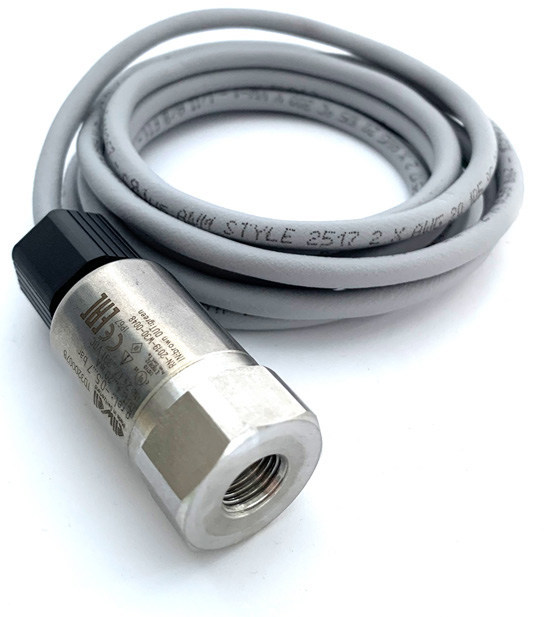

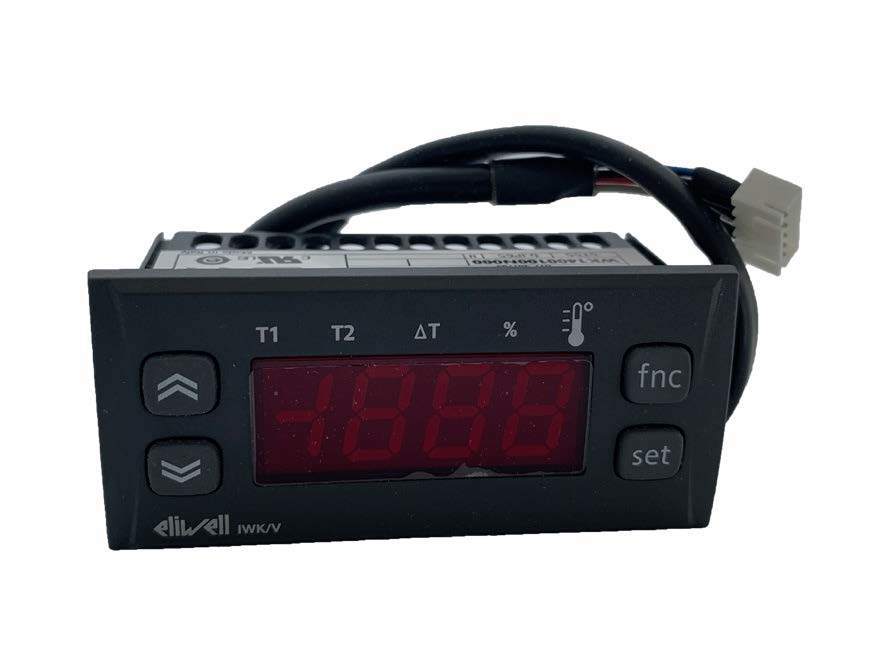

Driver + keyboard with display + pressure transducer + temperature probe (components can also be purchased separately)
For a correct installation of the parts, it is necessary to follow the technical specifications reported on the instruction sheet included.
The electronic expansion valve drivers have the purpose of regulating the superheat of the refrigerant leaving the evaporator in order to keep it within a preset value (heating setpoint). To measure the actual heating, the driver uses two probes, one measures the suction temperature and the other the evaporation pressure of the refrigerant at the outlet of the evaporator. From the evaporation pressure the driver calculates the saturated evaporation temperature (depending on the type of refrigerant) and from the difference between the suction temperature and the saturated evaporation temperature, the driver calculates the real superheat.
High regulation accuracy. Easy to install. Compatible with our expansion valve (44000 series)
Developed for the electronic regulation of the superheat of the refrigerant leaving the evaporator.
Driver + keyboard with display + pressure transducer + temperature probe (components can also be purchased separately)
For a correct installation of the parts, it is necessary to follow the technical specifications reported on the instruction sheet included.
