SERIES 11000

N.C. SOLENOID VALVES - REFRIGERANT FLUIDS HCFC-HFC-HFO-HC

SERIES 11000 N.C. SOLENOID VALVES  - REFRIGERANT FLUIDS HCFC-HFC-HFO-HC

Category: ODF & SAE CONNECTIONS

Surface treatments applicable: no

Notes: 0

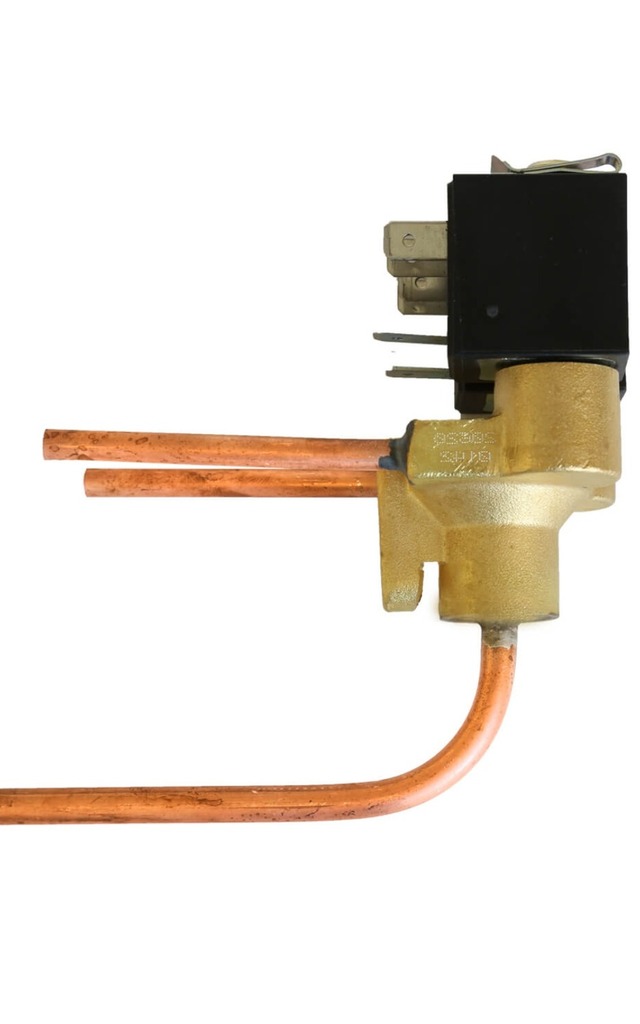

The solenoid valves of the 11000 series are normally closed
  • SAFE SEALING: double O-ring seal on the tube that guarantees perfect sealing of the device from the environment BALANCED FLOW RATE OF BLOCKS: the flow rate of each pilot-operated solenoid pilot i
  • 100% tested to guarantee a perfect balance
  • Double locking thread on the blocks
  • Coil insulation guaranteed by the top and bottom O-ring seals
The solenoid valves of 11000 series are designed to be installed on small refrigeration and air-conditioning system using refrigerants of group 2, as provided in art.13, cap.1, section B of Directive 2014/68/UE with reference to the Regulation (CE). With HNBR gaskets (on request) may be used with R290 refrigerant fluids.
The main components of the solenoid valves in the 11000 series are:
  • Body made of brass EN12165 CW617N or EN12164-CW614N
  • Sleeve made of brass EN12164 CW614N
  • Cores made of ferromagnetic steel
  • Springs made of steel AISI 302
  • Coil H class with anti-humidity gaskets
  • Brass pipe EN12735-1-Cu-DHP
  • Neoprene/HNBR sealing O-ring
models
8321-R
8321-R
8322-R
8322-R
8433-R
8433-R
8434-R
8434-R
