Category: BRASS FITTINGS

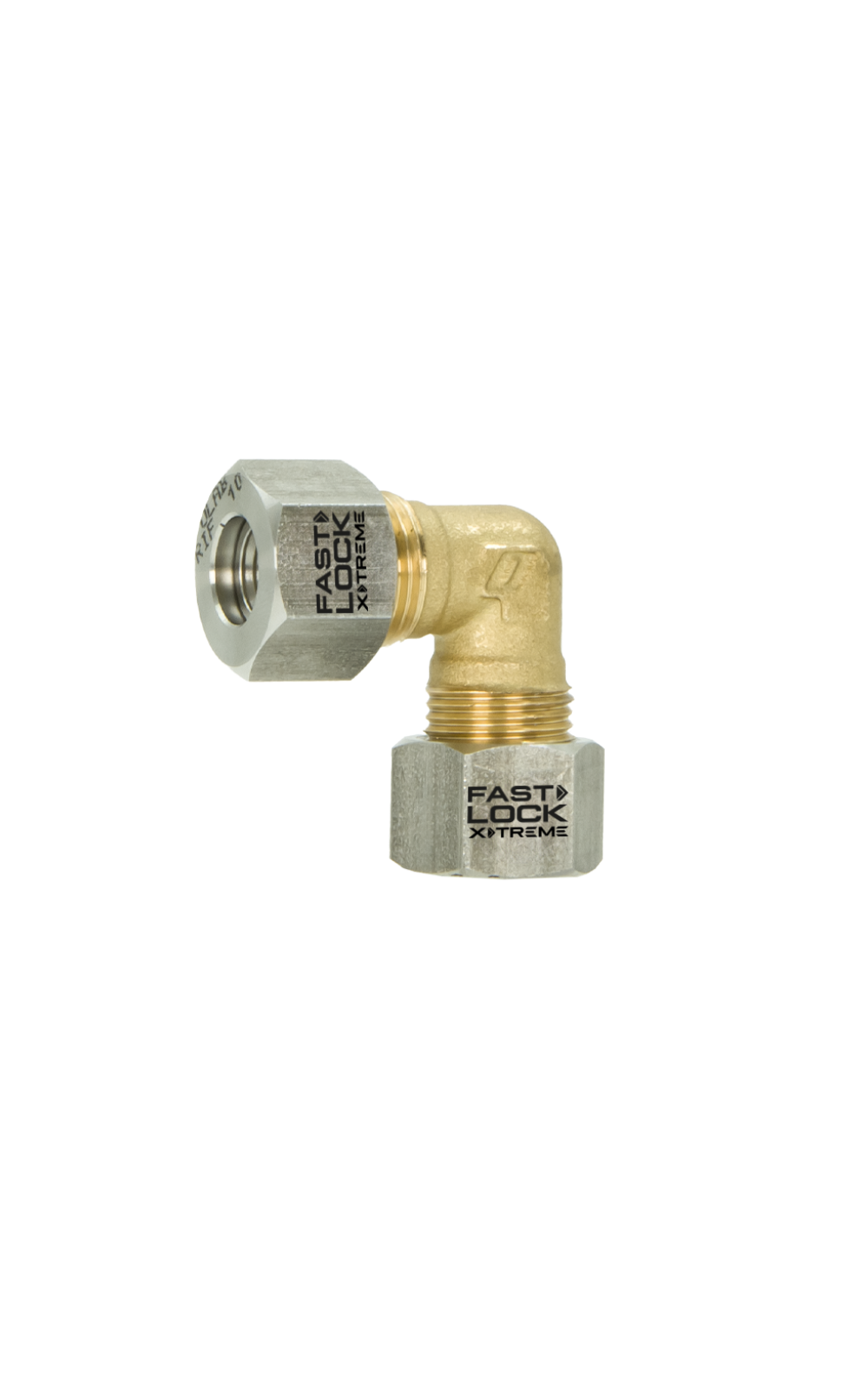

The FASTLOCK X-TREME Series 01200 belongs to the X-TREME PRO range within the OLAB Car
Wash line, developed to ensure fast, secure, and leak-free installations
in high-pressure car wash systems.
These are mechanical fittings for
stainless steel tubes, designed to operate without welding, using a tight
axial locking mechanism with integrated sealing.
The FastLock
technology relies on a progressive tightening principle: as the nut
is screwed in, the conical cut ring (BCL) in AISI 316 stainless steel is
pushed onto the tube, producing a dual mechanical grip—radial and axial.
At the same time, the 100% PFAS-FREE EPDM O-Ring certified by OLAB
is compressed into its seat, ensuring a stable and long-lasting seal,
even in conditions with vibration, pressure surges, or temperature changes.
The fitting includes a nut, washer, and BCL ring in AISI
316 stainless steel, a yellow brass body, and an EPDM PFAS-FREE
gasket—all selected to deliver exceptional corrosion resistance and
durability. The system can be mounted even on non-calibrated tubes,
and installation is so intuitive that non-specialized personnel can
carry it out with confidence.
Designed for working pressures up to 150 bar (2175 psi)
and temperatures between –50°C and +150°C (–58°F ÷ +302°F), the Series
01200 is fully CE and UL 207 certified, ensuring mechanical,
hydraulic, and electrical safety as well as compliance with industrial
environments involving water and aggressive agents.
With its unique combination of performance, simplicity,
and 100% PFAS-FREE sustainability, FASTLOCK X-TREME is the ideal choice for anyone
looking for a reliable, modular, and standards-compliant connection system
for professional car wash installations.
Technical features:
NO WELDING, NO LEAKAGE
Thanks to the FastLock technology.
HIGH PERFORMANCE
Fittings suitable for applications at 150 BAR while having low nut tightening torques.
ENHANCED SAFETY
Guarantees a high level of safety for the system.
GUARANTEED MAINTAINABILITY
Ensures easy maintenance of the system.
SIMPLE INSTALLATION
Extremely easy to assemble, suitable even for non-specialized personnel.
VIBRATION RESISTANCE
Excellent ability to withstand intense vibrations.
CORROSION RESISTANCE
Good durability in corrosive environments.
VERSATILE USE
Can be employed even with uncalibrated pipes.
COST-EFFECTIVE QUALITY
Unparalleled quality at an affordable price.
