SERIES 100/XX [FKM]

STAINLESS STEEL AISI 316QUICK COUPLING FITTINGS FOR PLASTIC PIPES

SERIES 100/XX [FKM] STAINLESS STEEL AISI 316QUICK COUPLING FITTINGS FOR PLASTIC PIPES
FOOD CONTACT
FOOD CONTACT STAINLESS STEEL NSF
APPROVED

Category: STAINLESS STEEL FITTINGS

Notes: 0

Quick couplings for plastic pipes. AISI 316 stainless steel, F100 / XX series
• Obtained from hot forging and from bars, to guarantee their high quality (AISI 316 stainless steel) • Resistant over time even in harsh conditions • Small size • FOOD CONTACT • FKM seals to increase compatibility with fluids and resistance to temperature • Testing on 100% of production • Complete range for every type of need • extremely efficient tube release, thanks to the AISI 316 stainless steel pliers Cylindrical gas threads: ISO 228 (BSP); conical gas ISO 7 (BSPT) Connecting pipes: PA6, PA11, PA12, PTFE, FEP, Polyethylene, Polyurethane (with calibrated diameter) Temperature: -15 ° C ÷ + 160 ° C (check the technical data sheet of the tube you want to use)
Fluids: air, water and all types of fluids compatible with AISI 316 stainless steel and the FKM O-ring. All environments where maximum corrosion resistance is required.
The main constituent components of the F100 / XX series fittings are: • Body and release pliers, AISI 316L stainless steel • Spring washer for holding stainless steel tube • FKM gaskets (O-rings) for food contact
models
F100XX
F100XX

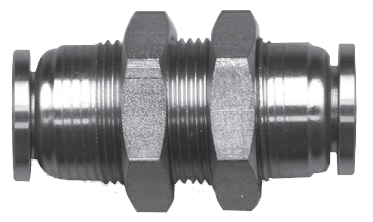

F101XX
F101XX
F102XX
F102XX

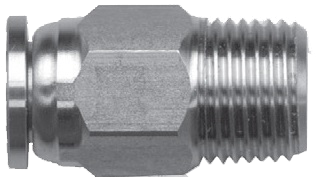

F103XX
F103XX

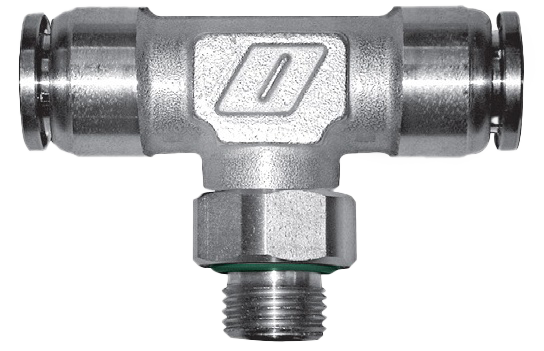

F107XX
F107XX

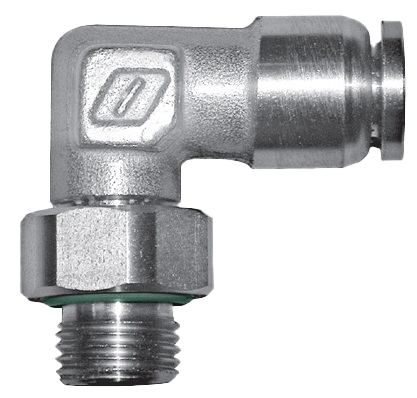

F108XX
F108XX

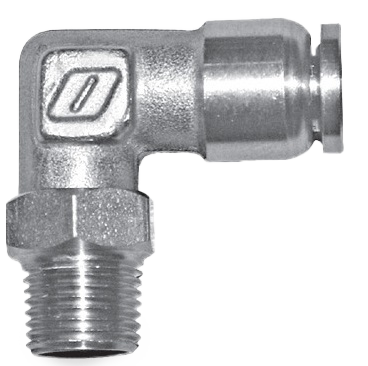

F109XX
F109XX

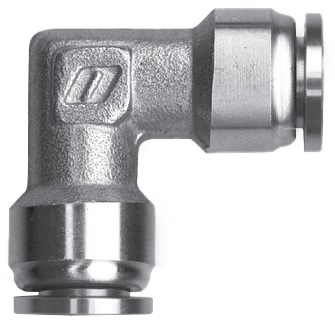

F111XX
F111XX

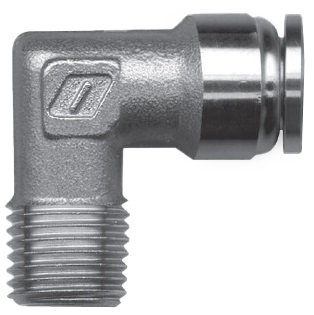

F113XX
F113XX

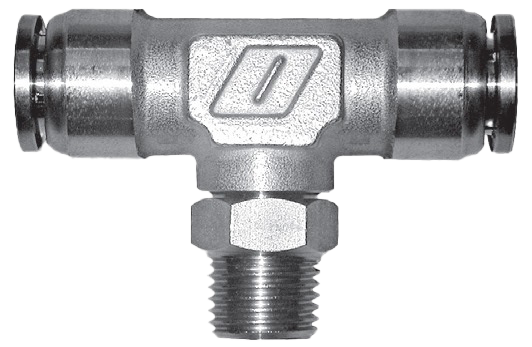

F114XX
F114XX

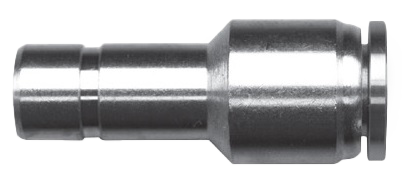

F121XX
F121XX

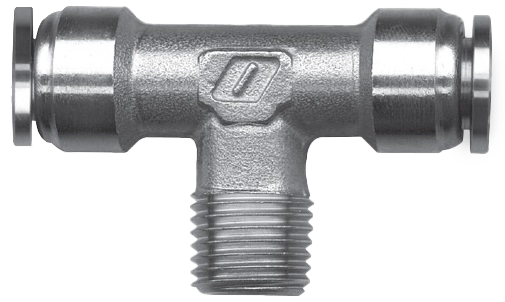

F133XX
F133XX

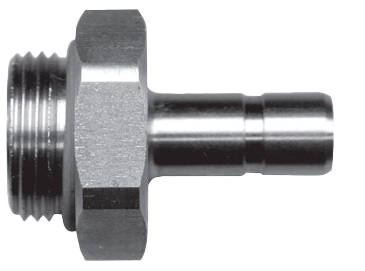

F134XX
F134XX
