Category: DIRECT ACTION SOLENOID VALVES
Ways: 2/2
Surface treatments applicable: TM1-TM4 upon request
Notes: 0

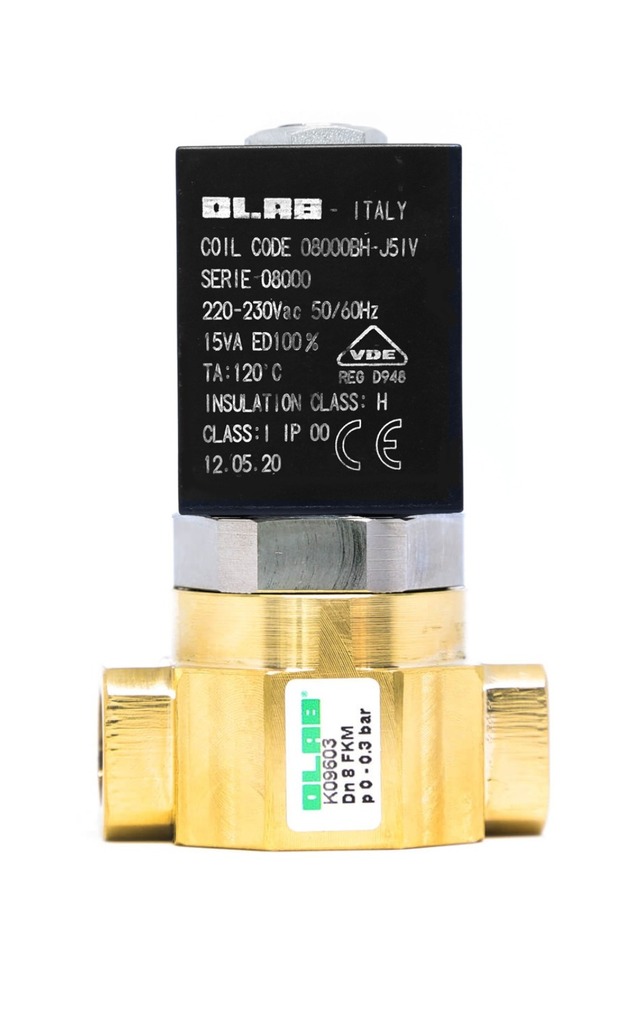

The solenoid valves of the K09603 series have been designed to guarantee maximum reliability.
Medical Application, Inspectable, Coil 30 mm insulation class H, Reliability guaranteed by the highest quality of the components with which it was designed, 100% tested.
Developed by the Olab R&D department during the COVID19 epidemic, used for pulmonary ventilators in applications with operating pressures up to 0.3 bar, compatible with all fluids that can be used with FKM seals.
Body in CW617N brass, sleeve in stainless steel, internal components in brass and stainless steel, gaskets in FKM, coil in class H.
The valve can be installed in any position except the one with the coil down. The ideal installation position is that with the coil oriented vertically upwards. Maximum cleaning of the system and particular attention during assembly is recommended.
The solenoid valves of the K09603 series have been designed to guarantee maximum reliability.
Medical Application, Inspectable, Coil 30 mm insulation class H, Reliability guaranteed by the highest quality of the components with which it was designed, 100% tested.
Developed by the Olab R&D department during the COVID19 epidemic, used for pulmonary ventilators in applications with operating pressures up to 0.3 bar, compatible with all fluids that can be used with FKM seals.
Body in CW617N brass, sleeve in stainless steel, internal components in brass and stainless steel, gaskets in FKM, coil in class H.
The valve can be installed in any position except the one with the coil down. The ideal installation position is that with the coil oriented vertically upwards. Maximum cleaning of the system and particular attention during assembly is recommended.
