SERIES 8300

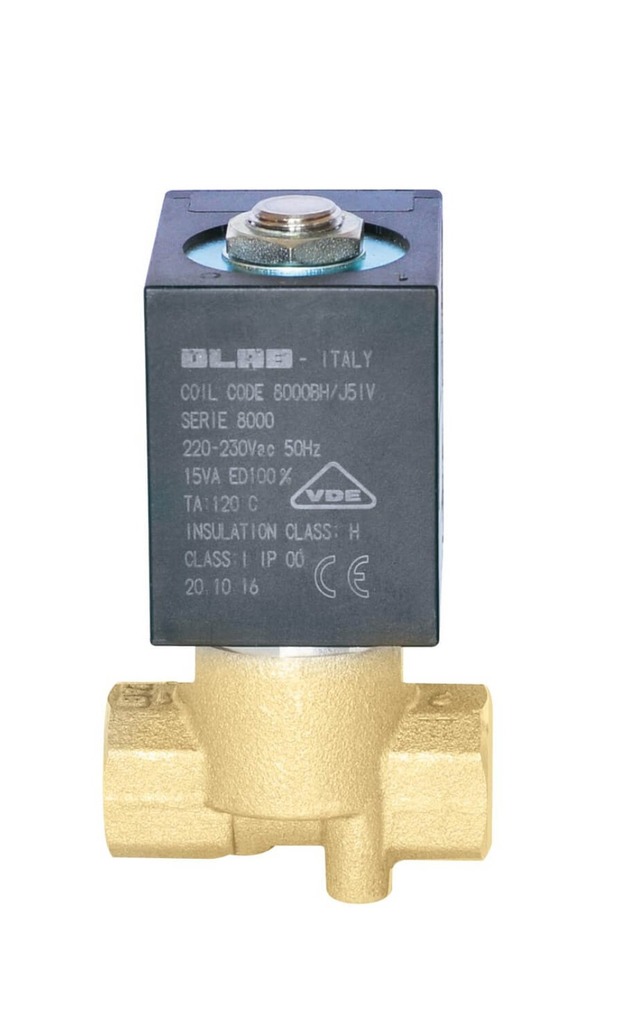

N.C.2/2 SOLENOID VALVES SERVICEABLE PTFE GASKET 30 MM d.n. Ø14

8300 2-2VIE-f78624.jpg

Category: DIRECT ACTION SOLENOID VALVES

Ways: 2/2

Surface treatments applicable: TM1-TM4 upon request

Notes: 0

The solenoid valves of the 8300 series are 2/2 ways, normally closed, serviceable, with PTFE seal and 30 mm d.n. Ø14 coil

  • Direct action (minimum pressure not required)
  • Professional applications
  • PTFE sealing gasket for high temperature applications
  • Suitable to be cleaned inside
  • 30 mm Ø14 coil

Air, water, steam, food & beverage. Other fluids after checking compatibility.

The main construction components of the solenoid valves of the 8300 series are:

  • EN12165-CW617N forged brass body
  • AISI304L stainless steel sleeve welded to the fixed core
  • AISI 303 stainles steel DN insert
  • AISI 430F stainless steel cores
  • AISI 302 stainless steel spring
  • DN sealing gasket: PTFE
    30 mm H class coil
