Ways: 2/2 N.C.
Notes:

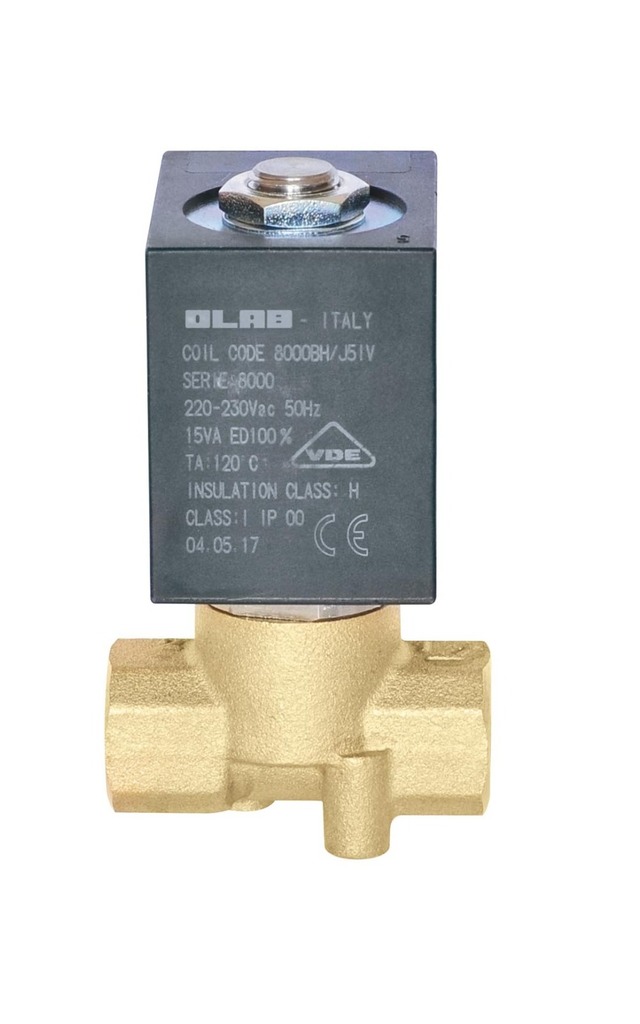

The SERIES
08201L solenoid valves are compact, inspectable, and direct-acting
solutions designed to deliver high performance even in the absence of
differential pressure. With an operating capacity of up to 40 bar (580 psi),
they ensure system responsiveness and reliability even under demanding
conditions.
Equipped
with OLAB certified RBX™ HI-PERFORMANCE seals, they guarantee maximum
compatibility with food-grade fluids, excellent sealing performance, and
long-lasting resistance to aggressive chemicals and high temperatures. The
operating temperature range spans from -15°C to +160°C (+5°F to +320°F).
The CW510L-OT57NSF
USA brass body, compliant with NSF standards for food contact, is combined
with AISI 304 stainless steel internal components—laser-welded sleeve
and insert—for outstanding durability, corrosion resistance, and hygiene
in sensitive applications.
The 30
mm Ø14 coil, rated class H (180°C) and protected to IP65,
allows installation in harsh industrial environments, ensuring safe operation
in the presence of moisture or contaminants. The inspectable design
enables quick access to internal parts for cleaning or maintenance, minimizing
downtime.
Backed by international certifications — CE, VDE,
MOCA, NSF COMPONENT — this series is ideal for use in regulated sectors such
as food, medical, and pharmaceutical industries, where precision, reliability,
and compliance are critical.
Technical features:
Food & Beverage
The solenoid valve can be installed in any position except the one with the coil down. The ideal installation position is the one with the coil oriented upwards. Maximum cleaning of the circuit is recommended, paying attention during the assembly phase.
