SERIES 10000

N.C 2/2 WAYS N.C. SERVICEABLE 36 mm d.n. Ø14

SERIES 10000 N.C 2/2 WAYS N.C. SERVICEABLE 36 mm  d.n. Ø14

Category: DIRECT ACTION SOLENOID VALVES

Ways: 2/2

Surface treatments applicable: TM1-TM4 upon request

Notes: 0

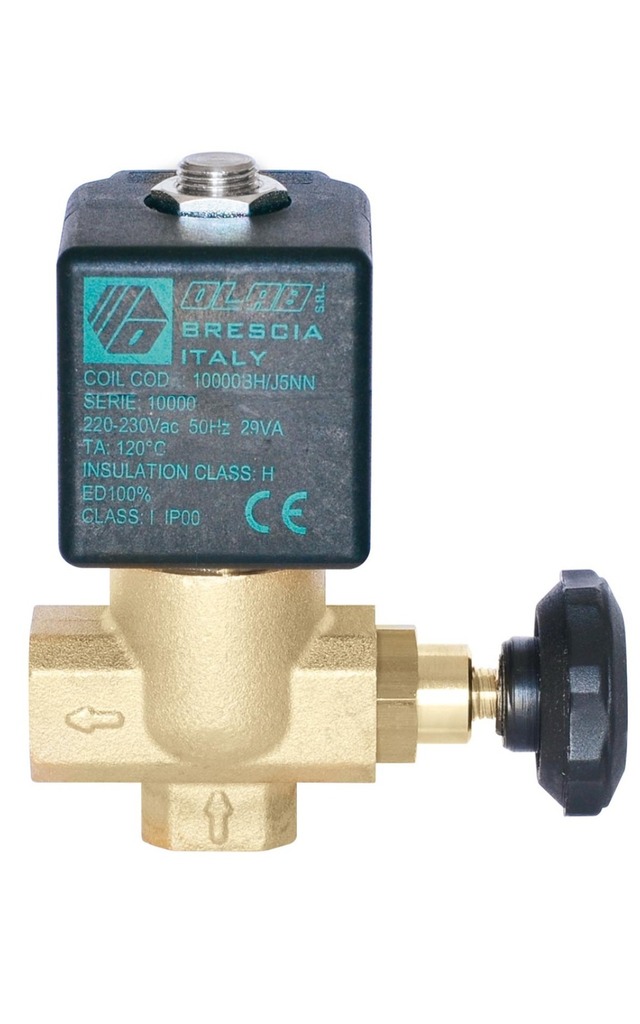

The solenoid valves of the 10000 series are 2/2 ways, normally closed, Serviceable, with 36mm coil d.n. Ø14
  • Direct action (minimum pressure not required)
  • Semi-professional/professional applications
  • Suitable to be cleaned inside
  • 36mm coil
Air, water, steam, industrial automation, compressors, industrial washing, food & beverage. Other fluids after checking compatibility.
The main construction components of the solenoid valves of the 10000 series are:
  • EN12165-CW617N forged brass body
  • AISI 304L stainless steel welded to the fixed core
  • AISI 430F stainless steel cores
  • AISI 302 stainless steel spring
  • Sealing gaskets: EPDM, FKM  for food contact, FKM PLUS for food contact
  • 36mm H class coil

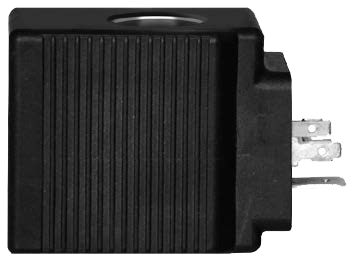

10000BH
10000BH

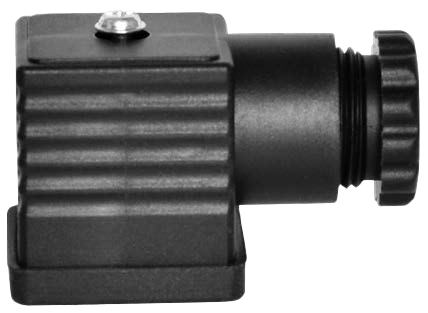

7000-CON
7000-CON
models
10000-3
10000-3
10000-4
10000-4
10000-5
10000-5
7353
7353
7809
7809
