SERIES 10400

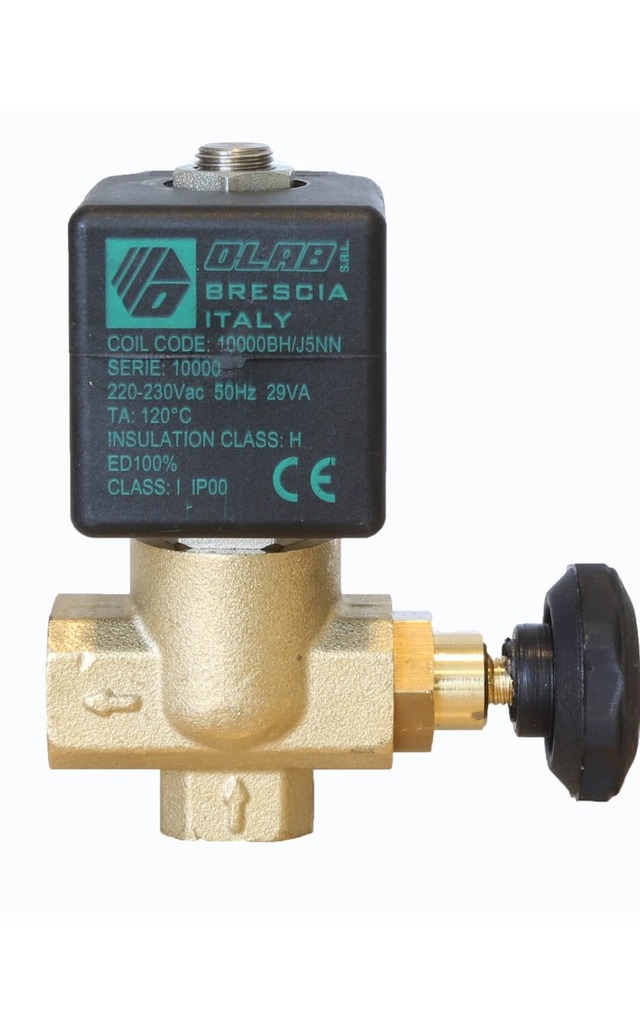

N.C. 2/2 SERVICEABLE SOLENOID VALVES INOX INSERT 36mm d.n. Ø14


Category: DIRECT ACTION SOLENOID VALVES

Ways: 2/2

Surface treatments applicable: TM1-TM4 upon request

Notes: 0

The solenoid valves of the 10400 series are 2/2 ways, normally closed, Serviceable, with stainless steel insert and 36 mm coil d.n. Ø14

  • Direct action (minimum pressure not required)
  • Semi-professional/professional applications
  • Suitable to be cleaned inside
  • Stainless steel DN insert for the maximum corrosion resistance
  • 36mm coil

Air, water, steam, industrial automation, compressors, industrial washing, food & beverage. Other fluids after checking compatibility.

The main construction components of the solenoid valves of the 10400 series are:

  • EN12165-CW617N forged brass body
  • AISI 304L stainless steel welded to the fixed core
  • AISI 303 stainless steel DN insert
  • AISI 430F stainless steel cores
  • AISI 302 stainless steel spring
  • Sealing gaskets: EPDM, FKM  for food contact, FKM PLUS for food contact
  • 36mm H class coill

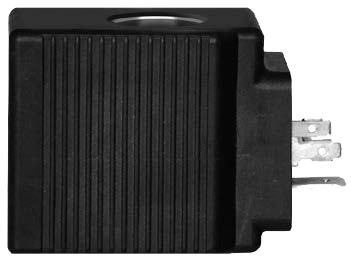

10000BH
close
10000BH

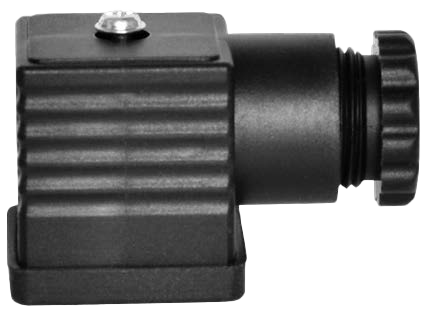

7000-CON
