SERIES 8251

N.C. 3/2 WAYS SERVICEABLE SOLENOID VALVES INOX INSERT -30 mm d.n. Ø14

SERIES 8251 N.C. 3/2 WAYS SERVICEABLE SOLENOID VALVES INOX INSERT -30 mm d.n. Ø14

Category: DIRECT ACTION SOLENOID VALVES

Ways: 3/2

Surface treatments applicable: TM1-TM4 upon request

Notes: 0

The solenoid valves of the 8251 series are 3/2-way, normally closed, serviceable, with stainless steel insert and 30 mm coil d.n. Ø14
  • Direct action (minimum pressure not required)
  • Professional applications
  • Suitable to be cleaned inside
  • DN insert made of stainless steel for the maximum resistance
  • 30 mm Ø14 coil
Air, water, steam, industrial automation, car washes, compressors, industrial washing, food & beverage. Other fluids after checking compatibility.
The main construction components of the solenoid valves of the 8251 series are:
  • EN12165-CW617N forged brass body
  • AISI 304L stainless steel welded to the fixed core
  • AISI 303 stainless steel DN insert • AISI 430F stainless steel cores
  • AISI 302 stainless steel spring
  • Sealing gaskets: EPDM, FKM for food contact, FKM  PLUS for food contact
  • 30 mm H class coill
8000BH
8000BH

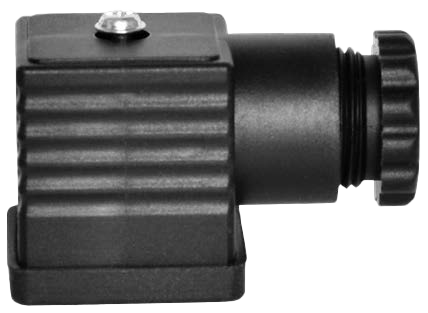

7000-CON
7000-CON
models
8251-3
8251-3
8251-4
8251-4
8252-3
8252-3
8252-4
8252-4
8253-3
8253-3
8253-4
8253-4
8254-3
8254-3
8254-4
8254-4
8254-5
8254-5
