SERIES 9950

N.C. 2/2 ways serviceable solenoid valves food-grade thermoplastic - 22mm

SERIES 9950 N.C. 2/2 ways serviceable solenoid valves food-grade thermoplastic - 22mm
FOOD CONTACT
FOOD CONTACT

Category: DIRECT ACTION SOLENOID VALVES

Ways: 2/2

Surface treatments applicable: no

Notes: 0

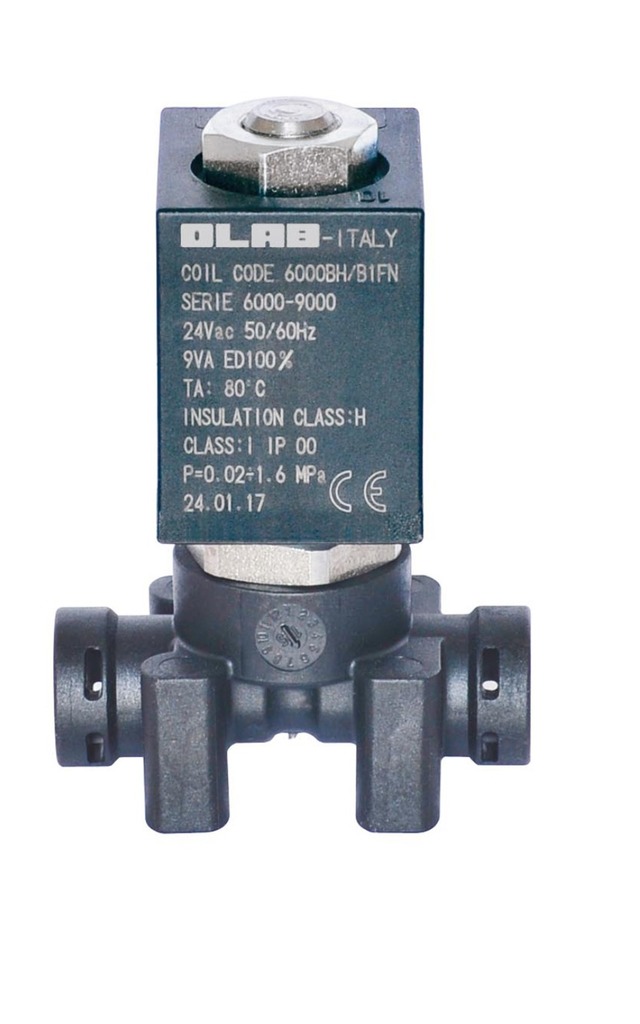

The solenoid valves of the 9950 series are 2/2-way, normally closed, serviceable, in thermoplastic food material, with 22 mm coil
  • Series 6056 variant with thermoplastic body
  • “fast” connection for d.n. Ø4mm teflon pipe beforhand ogived
  • Direct action (minimum pressure not required)
  • Suitable to be cleaned inside
  • DN insert made of stainless steel for the maximum resistance
  • Low cost
  • Small size (22mm coil)
Air, water, steam, food & beverage. Other fluids after checking compatibility.
The main construction components of the solenoid valves of the 9950 series are:
  • Thermoplastic for food contact body
  • EN12164-CW614N brass or AISI 303 stainless steel sleeve
  • AISI 430F stainless steel cores
  • AISI 302 stainless steel spring
  • Sealing gaskets: NBR, EPDM, FKM  for food contact, FKM  PLUS for food contact
  • 22mm coil H class
9000BH
9000BH

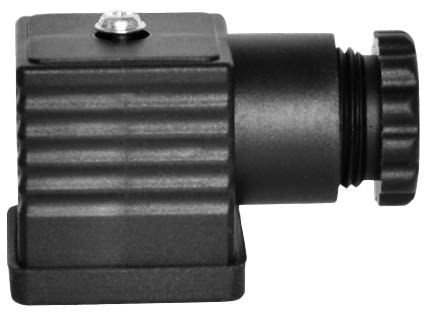

6000-CON
6000-CON
