Category: INDIRECT AND MIXED ACTION SOLENOID VALVES
Ways: 2/2
Surface treatments applicable: TM1-TM4
Notes: 0

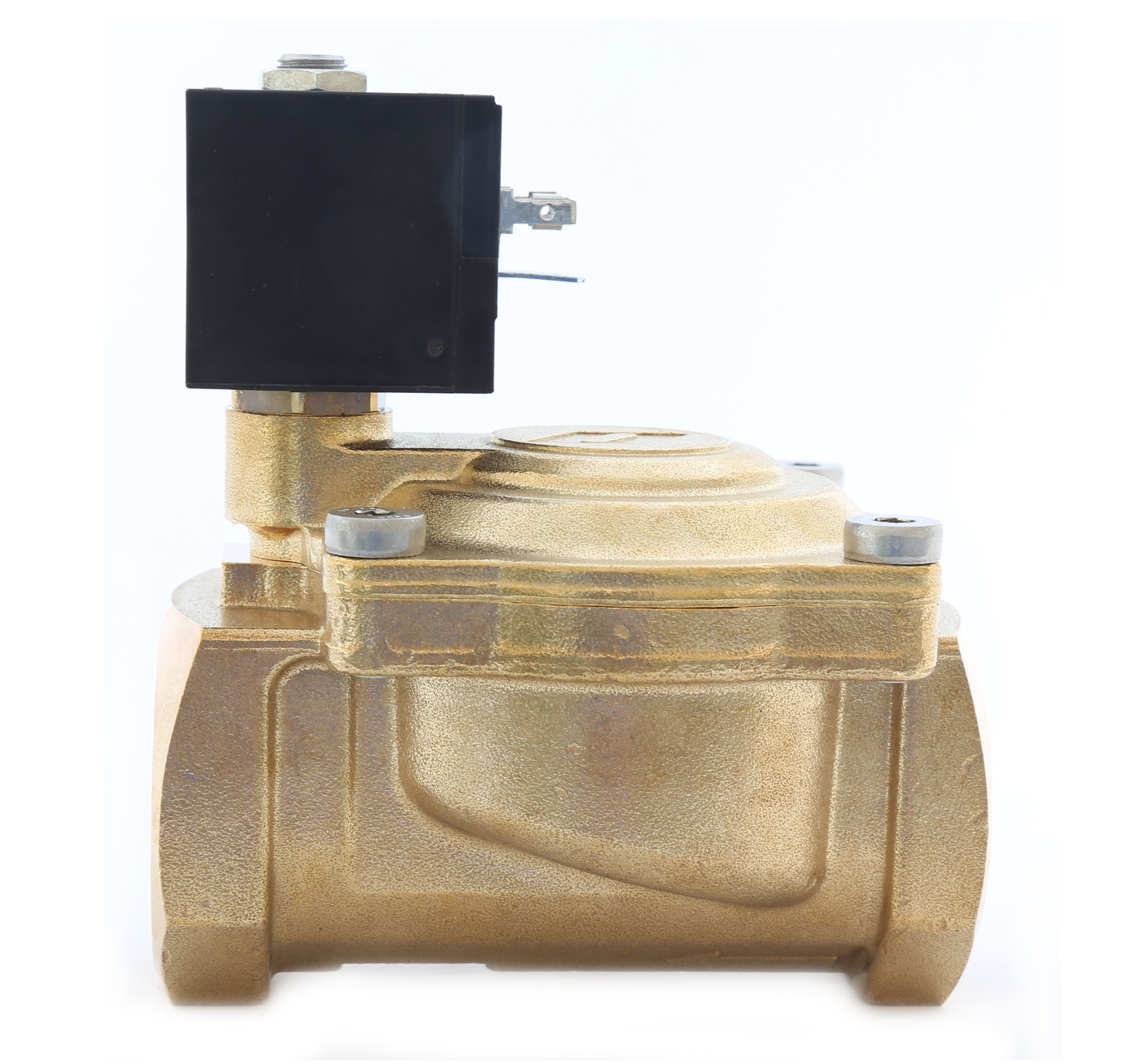

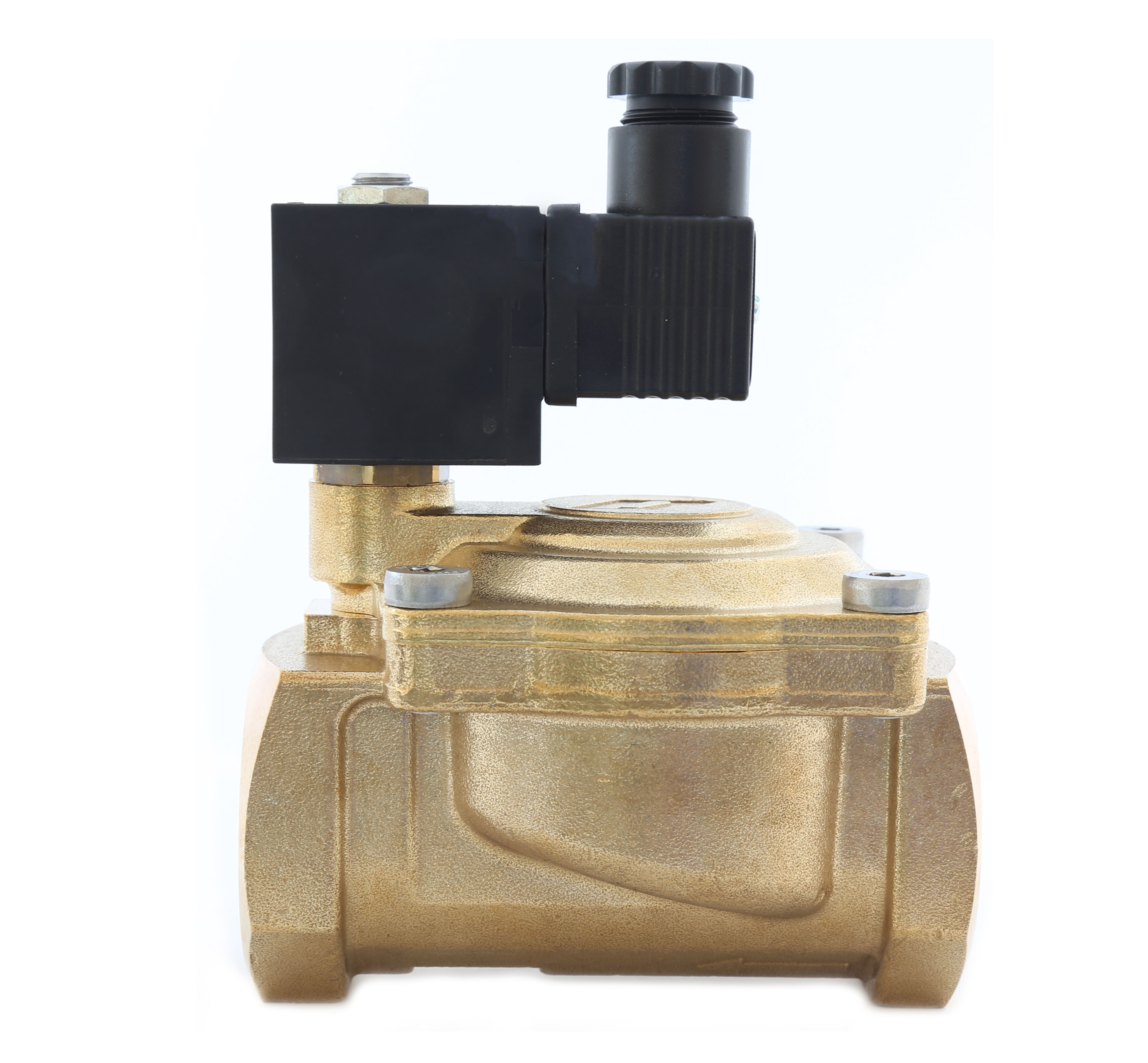

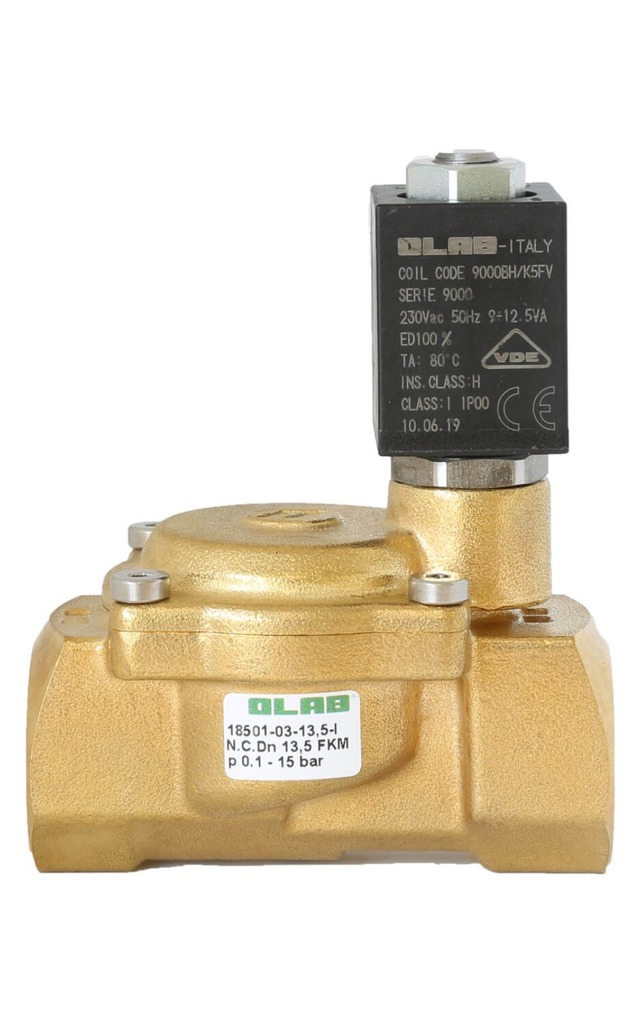

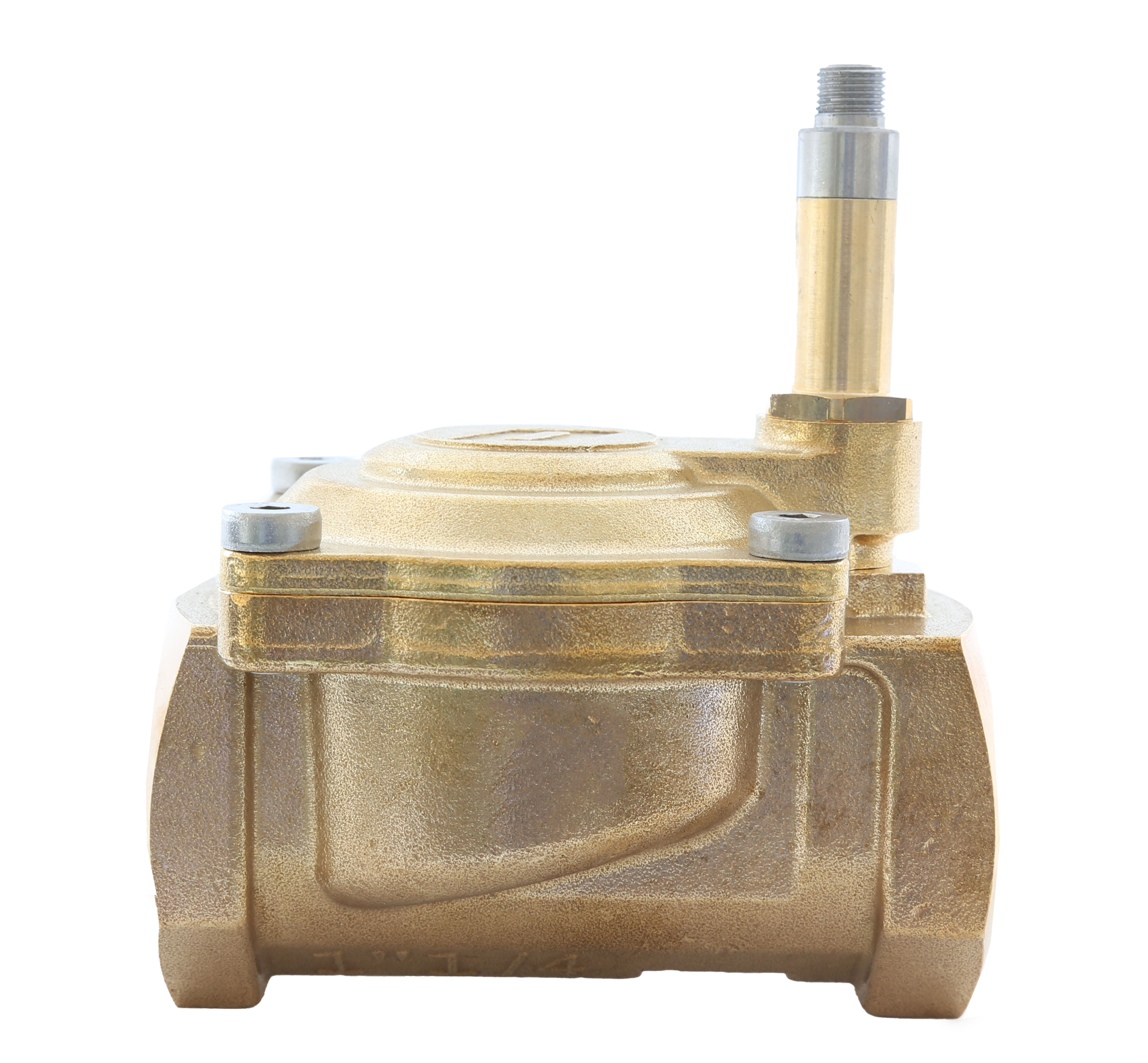

The solenoid valves of the 18500 series are 2/2 ways, normally open, direct action
High differential opening pressure with big passing hole Reduced power with high pressures.
Thermohydraulic systems, autoclaves, machine tool cooling systems, washing systems, irrigation systems, fire prevention systems, sanitation systems, pressure washers.

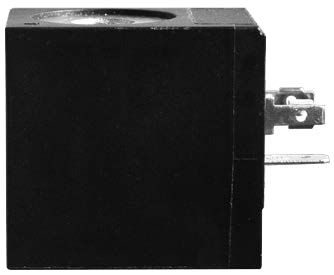

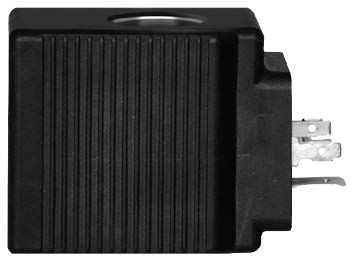

The main construction components of the solenoid valves of the 18500 series are: • Brass body and cover made of EN12165-CW617N • EN12164-CW614N brass sleeve • Ferritic stainless steel core • AISI 302 stainless steel spring • Sealing gasket: NBR, EPDM or FKM for food contact • 22mm coil (up to ref. 1”) or 30 mm coil (from 1”1/4 to 2”) H class • Austenitic stainless steel for clamping screws cover (A2 -70)
