SERIES F100 [NBR]

PUSH-IN FITTINGS FOR PLASTIC PIPES WITH PLASTIC RELEASE CLIP AND OLAB-CERTIFIED NBR O.RING

FLUID
SERIES F100 [NBR]
CE 28384 RESISTENTI OT58

Category: BRASS FITTINGS

Notes:

  • PS: max 20 bar (290 psi) — check the technical datasheet of the selected tube
  • TS: -20°C ÷ +80°C (+4°F ÷ +320°F) — verificare la scheda tecnica del tubo impiegato
  • Connection tubes: PA6, PA11, PA12, PTFE, FEP, Polyethylene, Polyurethane (calibrated outer diameter)
  • Outer tube diameters: Ø4 - Ø6 - Ø8 - Ø10 - Ø12 - Ø14 mm

  • Fitting threads:
    • Cylindrical ISO 228 (BSP): G1/8 - G1/4 - G3/8 - G1/2
    • Conical ISO 7 (BSPT): R1/8 - R1/4 - R3/8 - R1/2
  • CERTIFICATIONS: CE

Technical Data Sheet

The Series F100 [NBR] is designed to provide a simple, secure, and durable connection in professional pneumatic systems. Thanks to the use of OLAB-certified NBR sealing gaskets, these fittings ensure excellent leak-tightness with compressed air and neutral fluids, maintaining full reliability even under continuous mechanical stress.

The nickel-plated OT58 brass body, stainless steel tube retaining washer, and green POM plastic release clip make the structure solid and easy to operate, even in compact installations. The tube can be quickly and efficiently disconnected, reducing maintenance time and improving daily usability.
Compatible with calibrated tubes in PA6, PA11, PA12, PTFE, FEP, polyethylene, and polyurethane, these fittings are available with a complete range of ISO 228 (BSP) cylindrical and ISO 7 (BSPT) conical threads, from G1/8 to G1/2 and R1/8 to R1/2. They support working pressures up to 20 bar (290 psi) and temperatures from -20°C to +80°C (+4°F ÷ +176°F), depending on the tube specifications.

The Series F100 [NBR] is a cost-effective yet highly reliable solution, ideal for applications where efficiency, safety, and quick installation are essential. Fully compliant with safety standards, with CE certification.


Technical features:

  • Push-in fittings for plastic pipes with plastic release clip
  • Nickel-plated brass (OT58) body
  • OLAB-certified NBR sealing gaskets
  • Stainless steel tube retaining washer
  • Green plastic (POM) release clip
  • Designed for professional pneumatic systems

Fluids: air

SAFE AND RELIABLE
These fittings are engineered to ensure stable and secure connections under all operating conditions, providing reliable performance even in demanding pneumatic systems. The quality of construction and component precision ensures operational continuity and minimizes the risk of failure.


NBR SEALING

The OLAB-certified NBR gaskets ensure long-lasting and effective sealing, making them ideal for use with compressed air and neutral fluids. The material offers good resistance to aging and mineral oils.


COST-EFFECTIVE

This solution represents excellent value for money, combining dependable performance with a competitive price. Perfect for systems that require efficiency without compromising on budget.


POM RELEASE CLIP (GREEN COLOR)

The green-colored POM polymer release clip allows for fast and easy tube disconnection, improving usability even in confined installation areas.


models

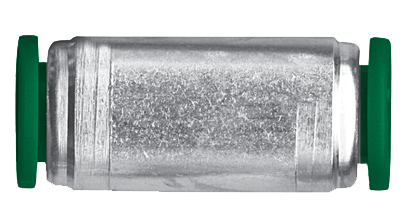

F100
F100
close
F100
F100

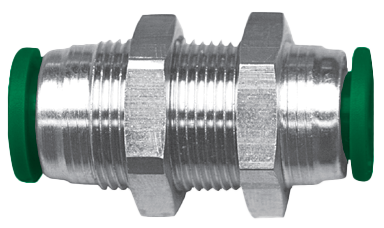

F101
F101
close
F101
F101
F102
F102
close
F102
F102
F103
F103
close
F103
F103
F104
F104
close
F104
F104
F105
F105
close
F105
F105

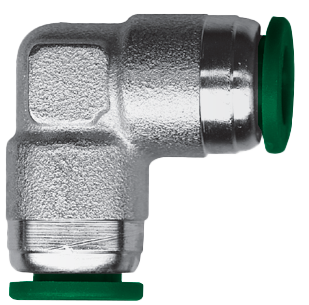

F106
F106
close
F106
F106
F107
F107
close
F107
F107

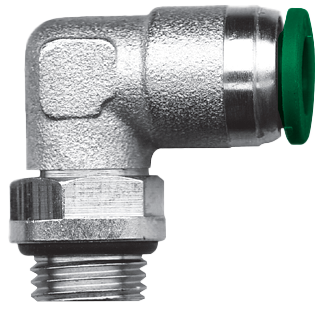

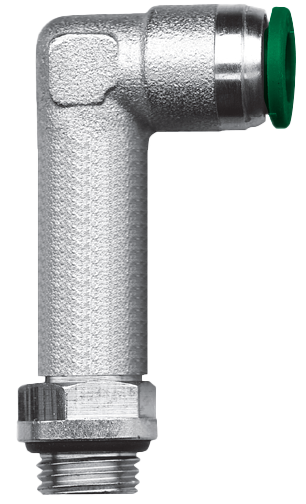

F108
F108
close
F108
F108
F108
F108
close
F108
F108

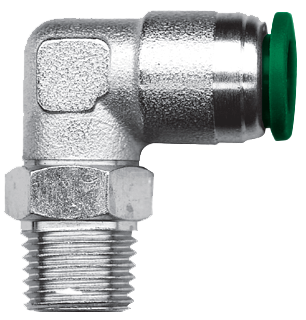

F109-
F109-
close
F109-
F109-

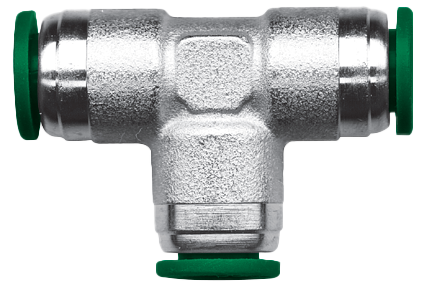

F110
F110
close
F110
F110

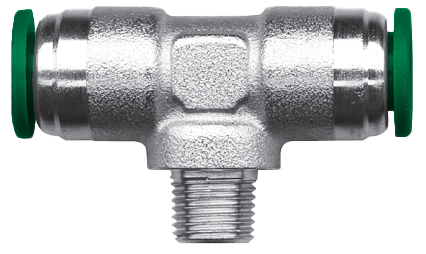

F111
F111
close
F111
F111

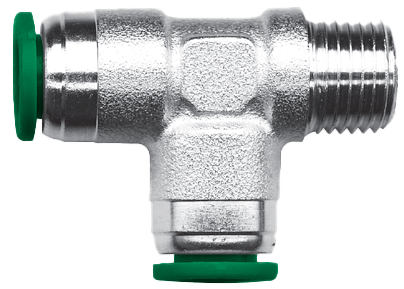

F112
F112
close
F112
F112

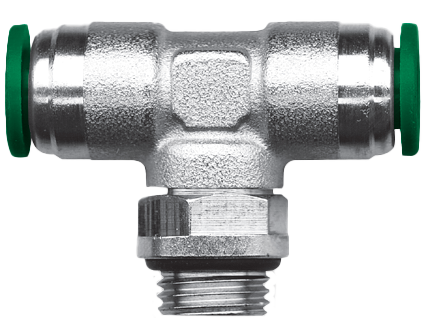

F113
F113
close
F113
F113

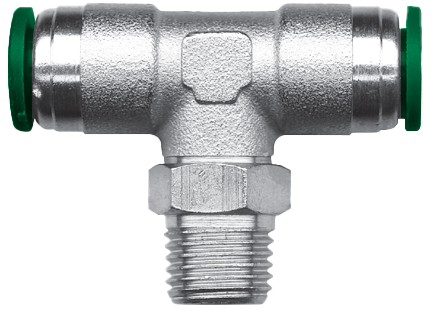

F114
F114
close
F114
F114

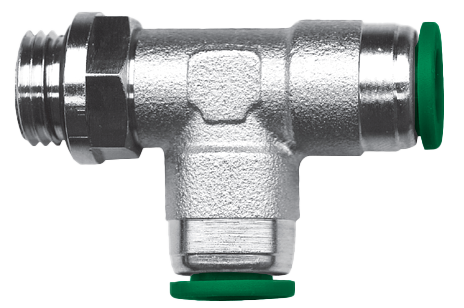

F115
F115
close
F115
F115

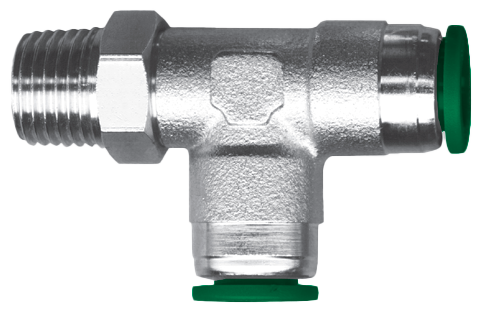

F116
F116
close
F116
F116

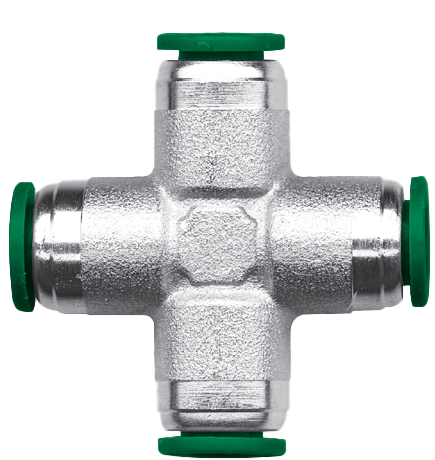

F117
F117
close
F117
F117

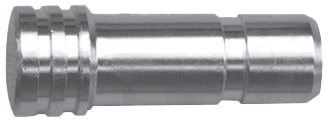

F118
F118
close
F118
F118

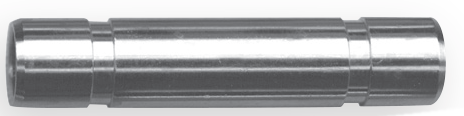

F119
F119
close
F119
F119

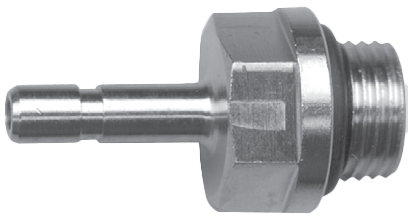

F120
F120
close
F120
F120

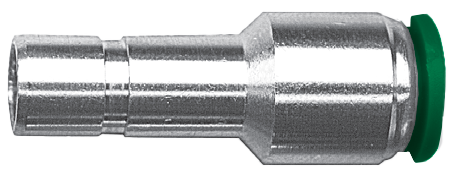

F121
F121
close
F121
F121

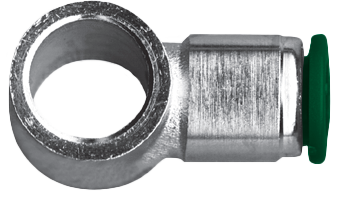

F122
F122
close
F122
F122

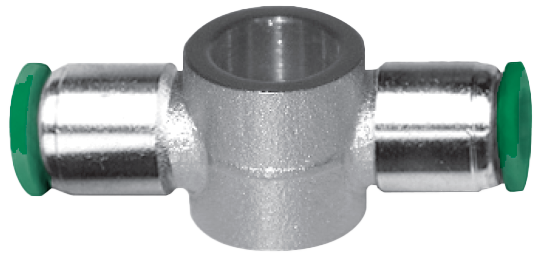

F123
F123
close
F123
F123

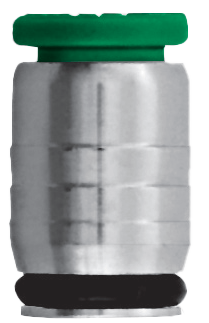

F130
F130
close
F130
F130

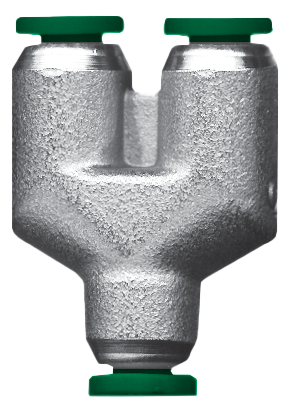

F131
F131
close
F131
F131

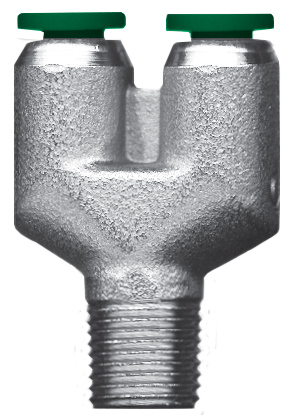

F132
F132
close
F132
F132

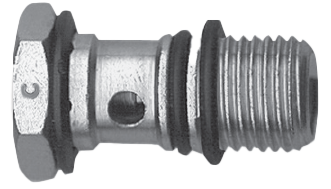

F135B
F135B
close
F135B
F135B

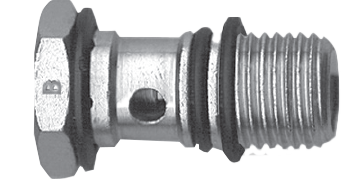

F135C
F135C
close
F135C
F135C

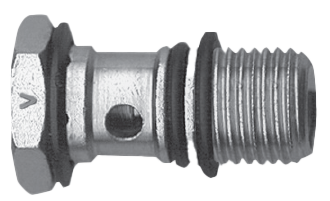

F135V
F135V
close
F135V
F135V

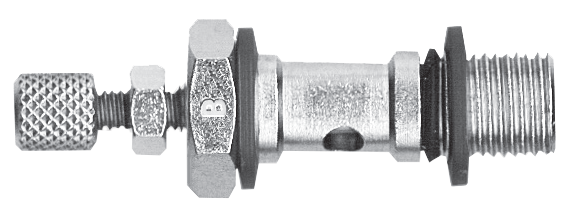

F136B
F136B
close
F136B
F136B

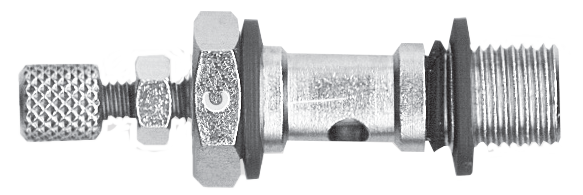

F136C
F136C
close
F136C
F136C

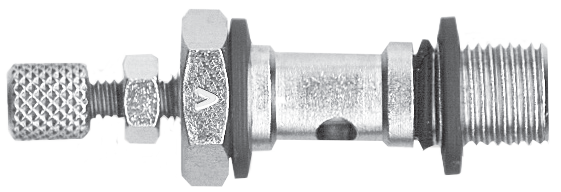

F136V
F136V
close
F136V
F136V

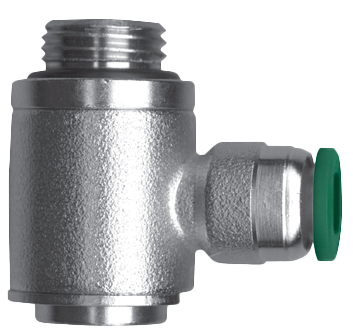

F137
F137
close
F137
F137

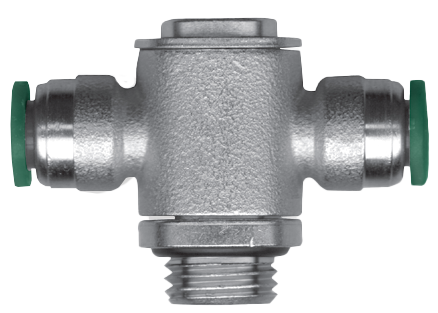

F138
F138
close
F138
F138

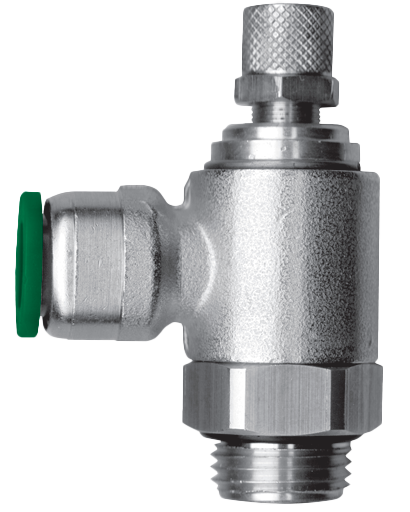

F139B
F139B
close
F139B
F139B

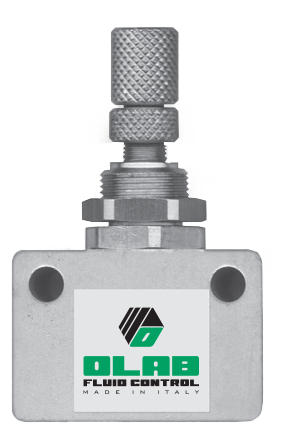

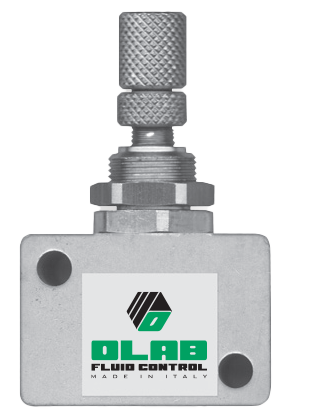

F150
F150
close
F150
F150
F150
F150
close
F150
F150

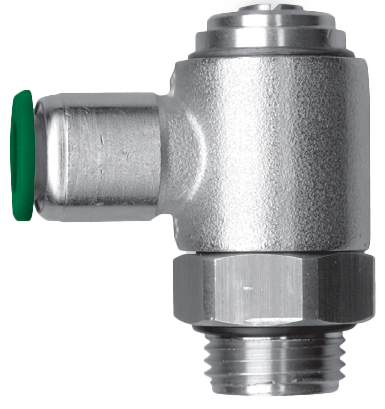

F1391B
F1391B
close
F1391B
F1391B

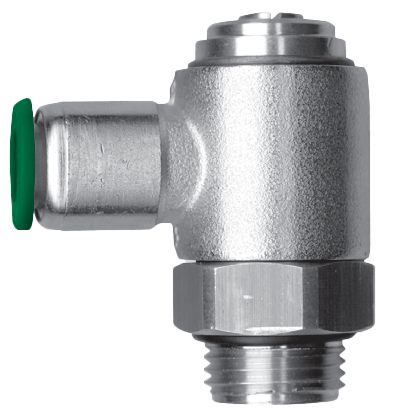

F1391
F1391
close
F1391
F1391

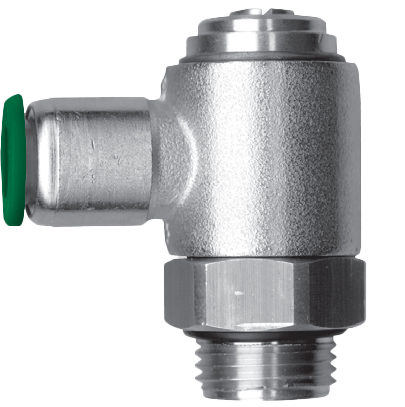

F1391V
F1391V
close
F1391V
F1391V
