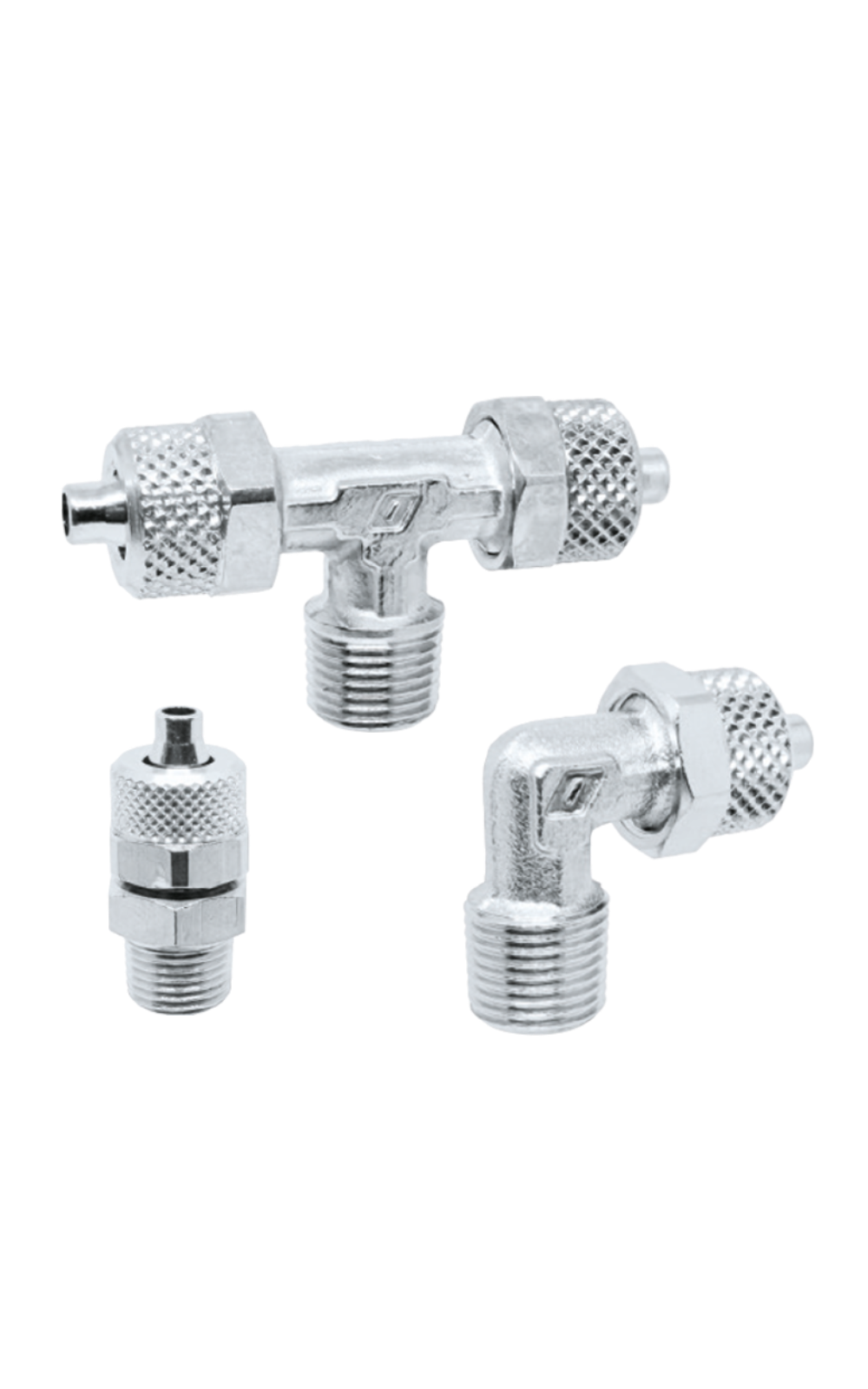

SERIES 00300

PUSH-ON FITTINGS FOR PLASTIC PIPES

FLUID
SERIES 00300
CE 28384 COMPATTI OT58

Category: BRASS FITTINGS

Notes:

  • PS: Nominal fitting pressure is always higher than maximum pipe pressure
  • TS: Verificare la scheda tecnica del tubo impiegato
  • Connection tubes: PA6, PA11, PA12, PTFE, FEP, Polyethylene, Polyurethane (calibrated outer diameter)
  • Outer tube diameters: Ø4 - Ø6 - Ø8 - Ø10 - Ø12 - Ø14 mm

  • Fitting threads:
    • Cylindrical ISO 228 (BSP): G1/8 - G1/4 - G3/8 - G1/2
    • Conical ISO 7 (BSPT): R1/8 - R1/4 - R3/8 - R1/2
  • CERTIFICATIONS: CE

Technical Data Sheet

The Series 00300 push-on fittings are designed to provide a simple, quick, and secure connection in compressed air systems, combining solid construction with excellent cost-effectiveness.

The nickel-plated OT58 brass body and nut ensure mechanical strength and long-term durability, even in demanding industrial environments.
This series of fittings allows for a reliable connection without the use of elastomeric gaskets, ensuring sealing performance across different types of tubing. The seal is achieved through compression of the tube onto the fitting’s cone, simply by tightening the nut, with no need for additional sealing components. Thanks to their compact design, these fittings are ideal for installations where space is limited or the circuit layout requires a low-profile solution.

The push-on technology allows for easy installation with calibrated tubes in PA6, PA11, PA12, PTFE, FEP, polyethylene, and polyurethane, enabling quick, reliable, and tool-free assembly.
They are available in a wide range of external diameters from 4/2.7 mm to 15/12.5 mm, with ISO 228 (BSP) cylindrical threads and ISO 7 (BSPT) conical threads, from G1/8 to G1/2 and R1/8 to R1/2.

The nominal pressure of the fittings is always higher than the maximum working pressure of the tube, while the operating temperature depends on the tube’s technical specifications.
CE certified, the Series 00300 fittings are a cost-effective, robust, and reliable solution for any air system where fast installation and a compact footprint are essential.

Technical features:

  • Push-on fittings for plastic pipes
  • Nickel-plated OT58 brass body and nut
  • Designed for air systems

Fluids: air, water, other low pressure fluids.

COST-EFFECTIVE
These push-on fittings provide an efficient and budget-friendly solution for air systems where cost control is essential without compromising on quality. Easy to install and solid in construction, they are ideal for standard applications.

COMPACT DESIGN
The compact design allows installation in tight spaces while still ensuring a stable and long-lasting connection. Perfect for systems with limited room or complex layouts.
