SERIES 200

Ogive fittings for copper and plastic pipes

SERIES 200  Ogive fittings for copper and plastic pipes

Category: BRASS FITTINGS

Surface treatments applicable: TM1-TM4 upon request

Notes: 0

Ogive fittings for copper and plastic pipes, series 200
Small size
Metallic sealing (for ogive compression on the tube)
Versatility (for compatibility of fluids and use of pipes)

  • Threads:
    • ISO 228 cylindrical gas (BSP);
    • conical gas ISO 7 (BSPT)

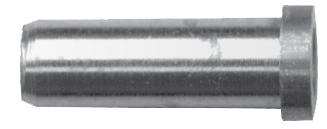

  • Connecting pipes in copper and plastic pipes (with annealed copper and plastic pipes, the reinforcement bush art. 247 is required)
  • Temperature: check the technical data sheet of the tube you want to use.
  • Max pressure: 40 bar
Suitable for effective use in low pressure pneumatic, hydraulic and hydraulic circuits. Fluids: air, water, other low pressure fluids.
The main construction components of the fittings of the 200 series are:
  • Nickel plated brass body and nut
  • Yellow brass ogive

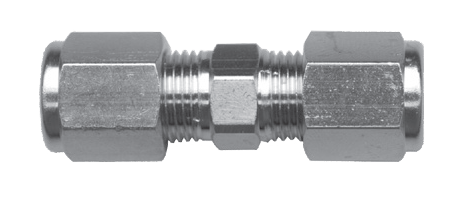

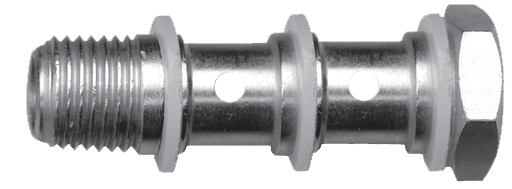

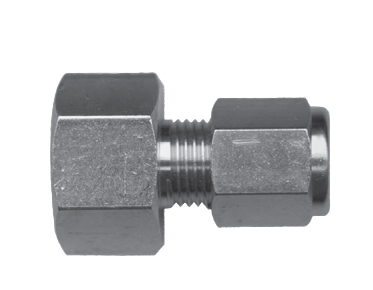

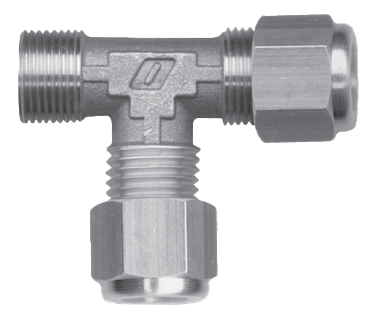

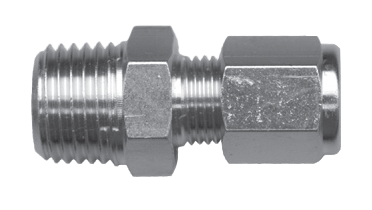

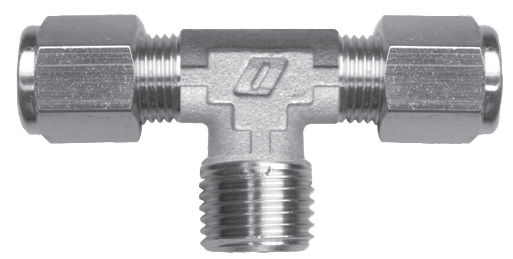

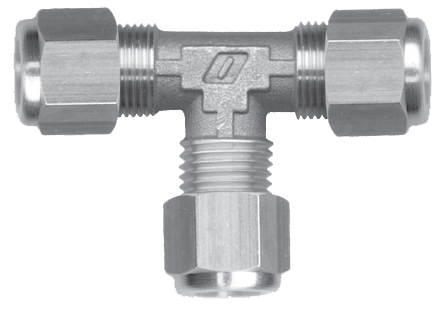

models
