SERIES 800

Universal automatic quick couplings

SERIES 800 Universal automatic quick couplings

Category: BRASS FITTINGS

Notes: 0

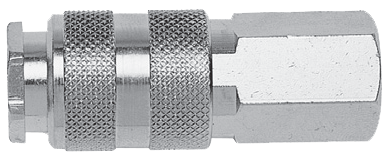

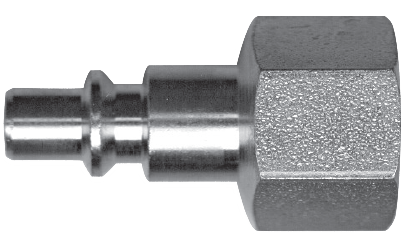

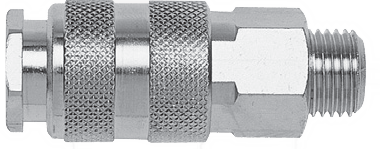

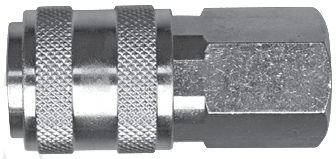

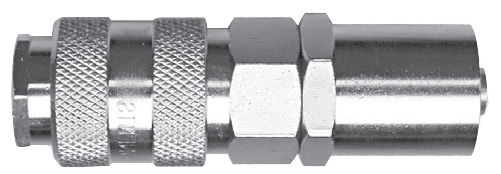

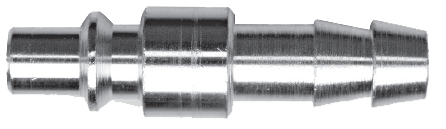

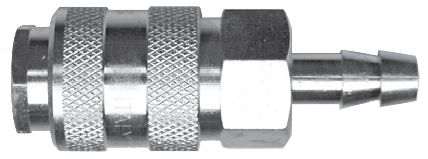

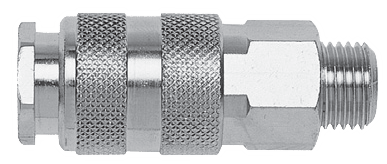

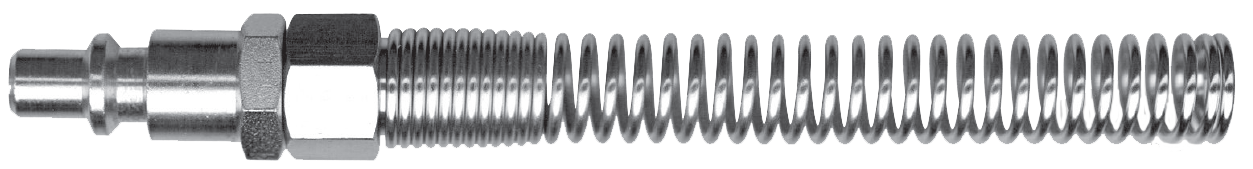

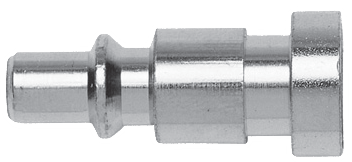

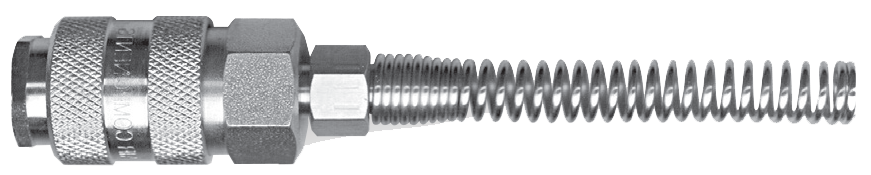

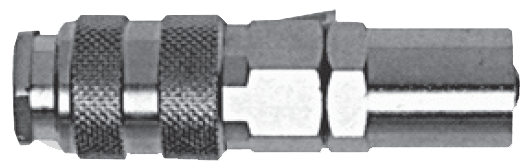

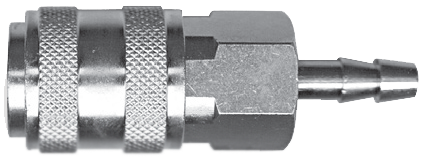

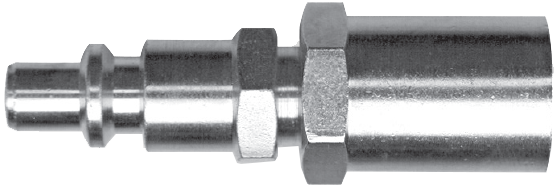

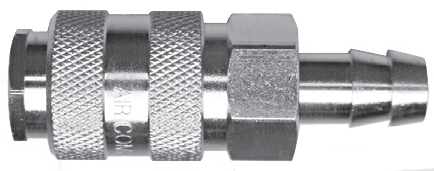

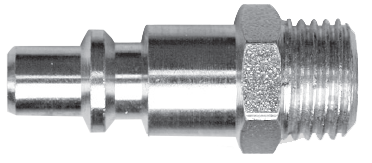

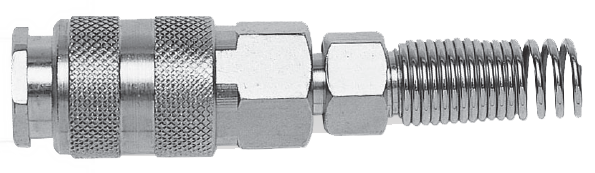

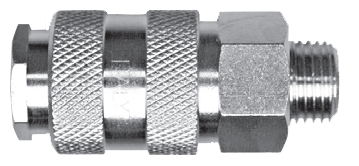

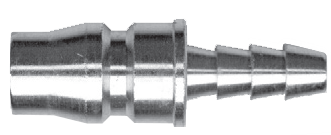

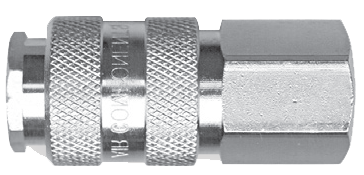

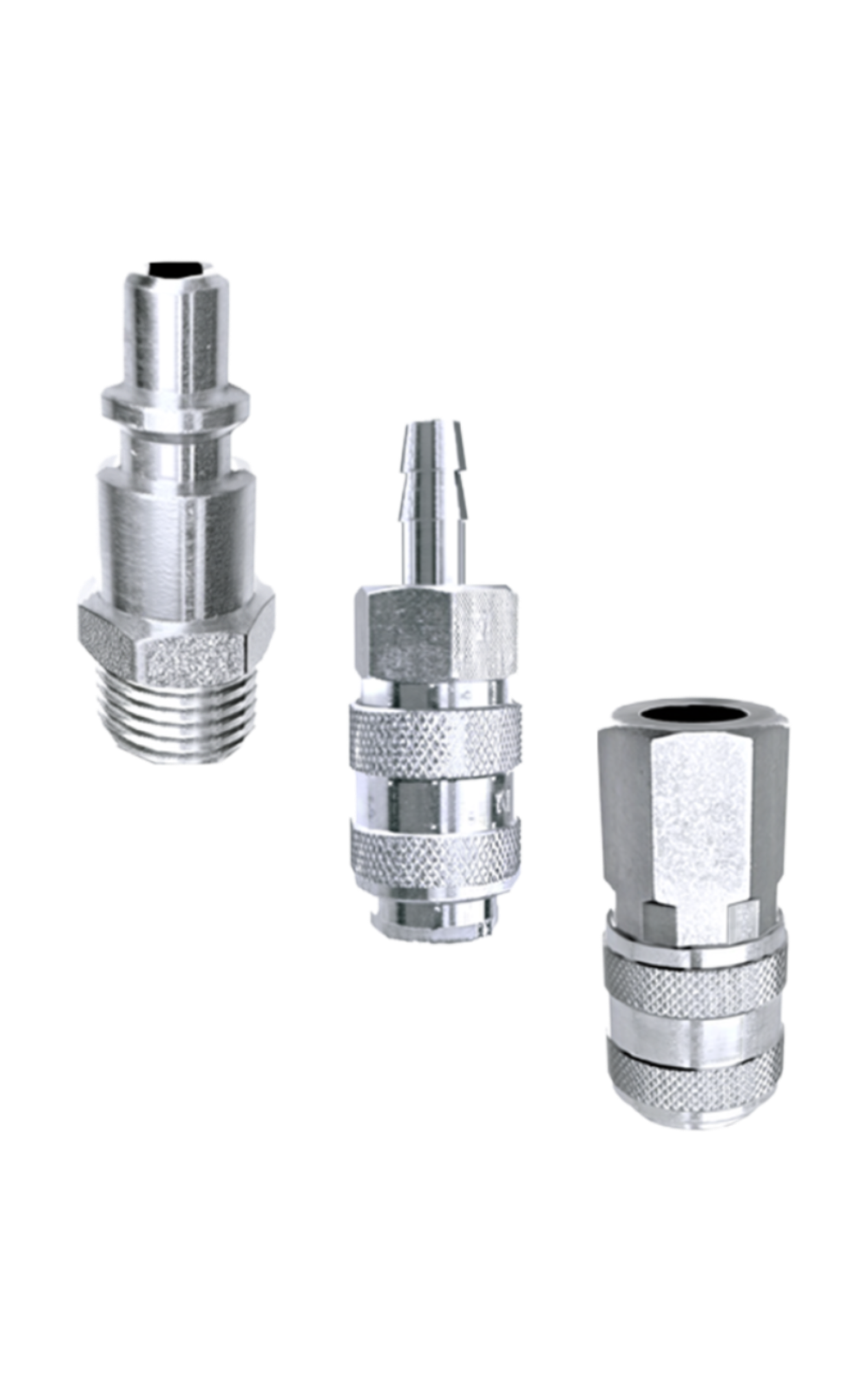

Universal automatic quick couplings, series 800
  • rugged and reliable
  • Ideal in applications where, for system or safety reasons, it is necessary to frequently connect or disconnect the connections of the system, during this operation there is no need to relieve the system of pressure thus allowing a considerable saving of time.

  • Cylindrical gas threads ISO 228 (BSP); conical gas ISO 7 (BSPT)
  • Temperature -15 ° C ÷ + 80 ° C
  • Maximum operating pressure: 16 bar
Fluids: air
The main construction components of the couplings of the 400 series are:
  • Nickel plated brass body Usable with: CH-I-USA-D
models
