SERIES F100/B [NBR]

PUSH-IN FITTINGS FOR PLASTIC PIPES WITH METAL SLEEVE-NBR

SERIES F100/B [NBR]

Category: BRASS FITTINGS

Technical Data Sheet

Acceptance of the Treaty Personal data
Download File
Description

PUSH-IN FITTINGS FOR PLASTIC PIPES WITH METAL RELEASE SLEEVE + O.R. NBR
BODY: NICKEL-PLATED BRASS (OT58)
GASKET: NBR
STAINLESS STEEL LOCKING RING
NICKEL PLATED BRASS (OT58) RELEASE PLIERS
DESIGNED FOR PROFESSIONAL AIR SYSTEMS
PS: 20 BAR (check the technical data sheet of the pipe you want to use)
TS: -20 ÷ +80 °C

Main features

  • Safe and reliable
  • rugged (brass release pliers)
  • Extremely efficient tube release thanks to the brass clamp
  • NBR seal
  • Cylindrical gas threads ISO 228 (BSP); conical gas ISO 7 (BSPT)
  • Connecting pipes PA6, PA11, PA12, PTFE, FEP, Polyethylene, Polyurethane (with calibrated diameter)
  • Temperature: (check the technical data sheet of the tube you want to use)
    • FKM -15°C ÷ +160°C (check the technical data sheet of the tube you want to use)
    • NBR -20 °C ÷ + 80°C  (check the technical data sheet of the tube you want to use)
  • Max pressure 20 bar (check the technical data sheet of the pipe you want to use)

Applications

Fluids : air

Components

The main construction components of the fittings of the F100/B series are:

  • Nickel-plated brass body
  • Nickel-plated brass release sleeve
  • Stainless steel locking ring
  • Sealing gasket (O-ring) made of NBR

Description Main features Applications Components

PUSH-IN FITTINGS FOR PLASTIC PIPES WITH METAL RELEASE SLEEVE + O.R. NBR
BODY: NICKEL-PLATED BRASS (OT58)
GASKET: NBR
STAINLESS STEEL LOCKING RING
NICKEL PLATED BRASS (OT58) RELEASE PLIERS
DESIGNED FOR PROFESSIONAL AIR SYSTEMS
PS: 20 BAR (check the technical data sheet of the pipe you want to use)
TS: -20 ÷ +80 °C

  • Safe and reliable
  • rugged (brass release pliers)
  • Extremely efficient tube release thanks to the brass clamp
  • NBR seal
  • Cylindrical gas threads ISO 228 (BSP); conical gas ISO 7 (BSPT)
  • Connecting pipes PA6, PA11, PA12, PTFE, FEP, Polyethylene, Polyurethane (with calibrated diameter)
  • Temperature: (check the technical data sheet of the tube you want to use)
    • FKM -15°C ÷ +160°C (check the technical data sheet of the tube you want to use)
    • NBR -20 °C ÷ + 80°C  (check the technical data sheet of the tube you want to use)
  • Max pressure 20 bar (check the technical data sheet of the pipe you want to use)

Fluids : air

The main construction components of the fittings of the F100/B series are:

  • Nickel-plated brass body
  • Nickel-plated brass release sleeve
  • Stainless steel locking ring
  • Sealing gasket (O-ring) made of NBR

models

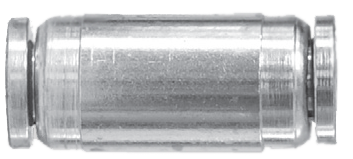

F100-B
F100-B
close
F100-B
F100-B

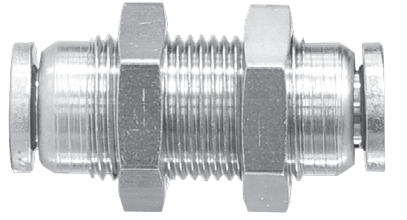

F101-B
F101-B
close
F101-B
F101-B
F102-B
F102-B
close
F102-B
F102-B
F103-B
F103-B
close
F103-B
F103-B
F104-B-
F104-B-
close
F104-B-
F104-B-

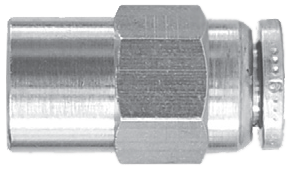

F105-B
F105-B
close
F105-B
F105-B

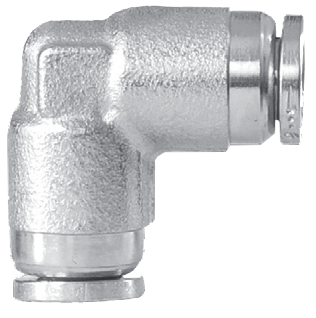

F106-B
F106-B
close
F106-B
F106-B

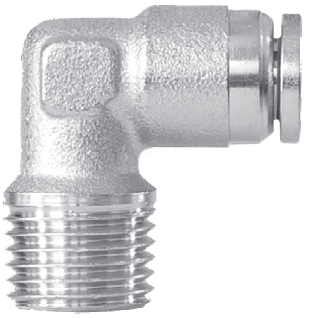

F107-B
F107-B
close
F107-B
F107-B

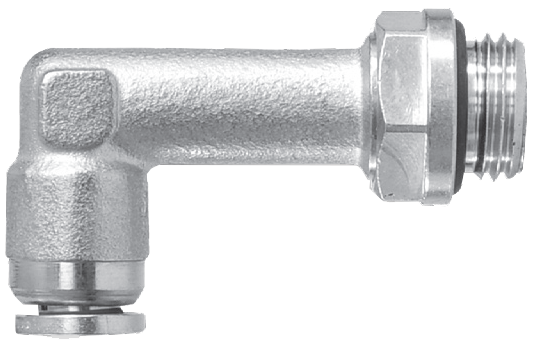

F108-1-B
F108-1-B
close
F108-1-B
F108-1-B

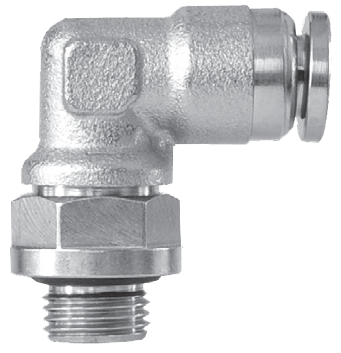

F108-B
F108-B
close
F108-B
F108-B

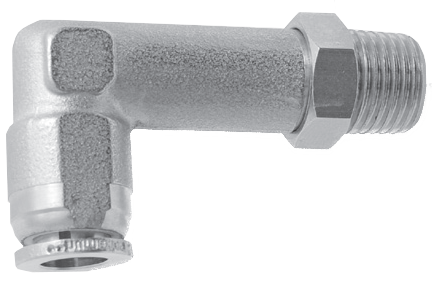

F109-1-B
F109-1-B
close
F109-1-B
F109-1-B

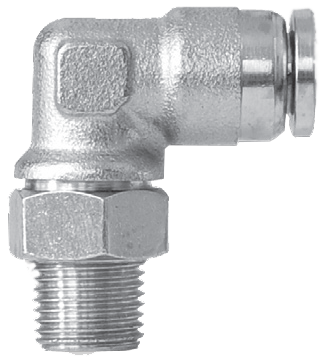

F109-B
F109-B
close
F109-B
F109-B

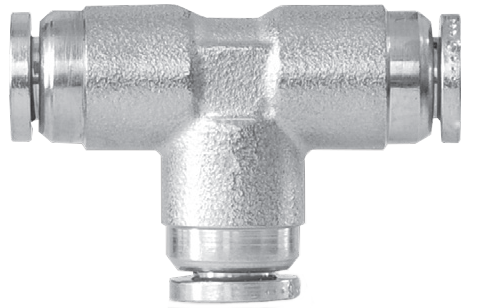

F110-B
F110-B
close
F110-B
F110-B

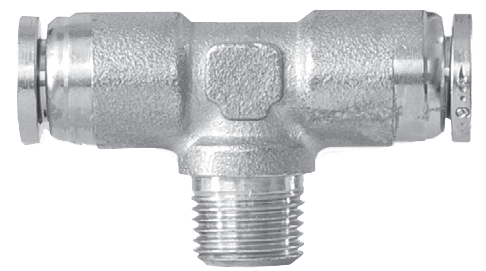

F111-B
F111-B
close
F111-B
F111-B
F112-B
F112-B
close
F112-B
F112-B

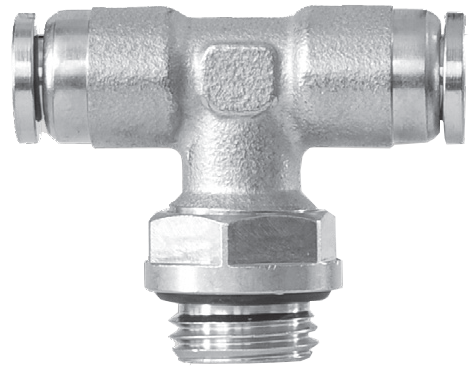

F113-B
F113-B
close
F113-B
F113-B

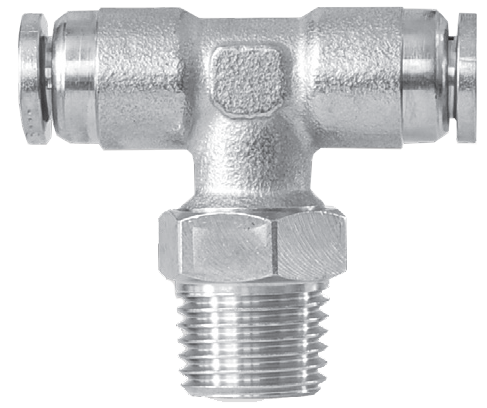

F114-B
F114-B
close
F114-B
F114-B

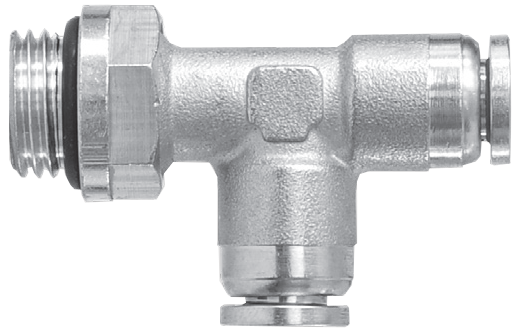

F115-B
F115-B
close
F115-B
F115-B

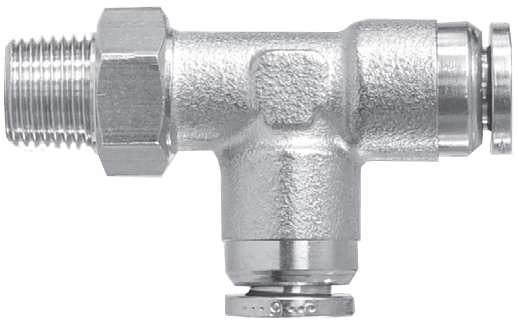

F116-B
F116-B
close
F116-B
F116-B

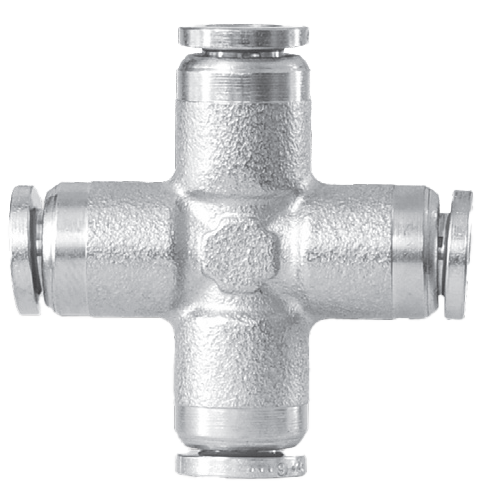

F117-B
F117-B
close
F117-B
F117-B

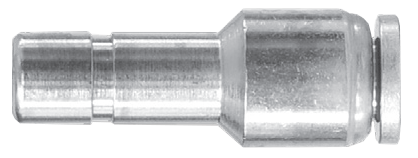

F121-B
F121-B
close
F121-B
F121-B

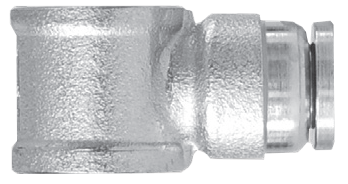

F122-B
F122-B
close
F122-B
F122-B

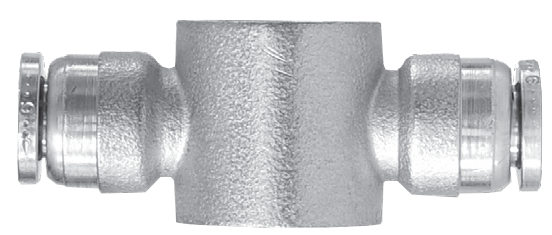

F123-B
F123-B
close
F123-B
F123-B

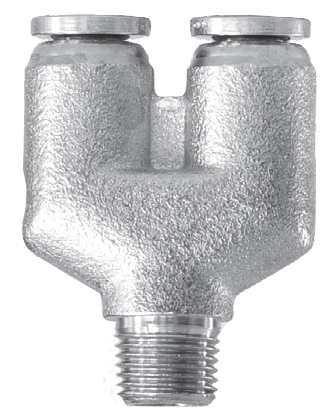

F132-B
F132-B
close
F132-B
F132-B

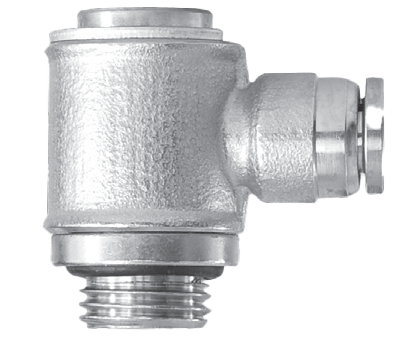

F137-B
F137-B
close
F137-B
F137-B

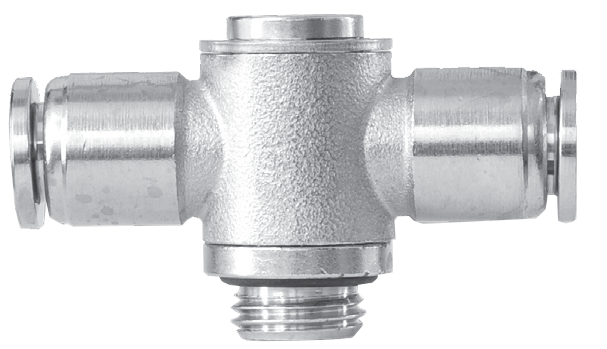

F138-B
F138-B
close
F138-B
F138-B

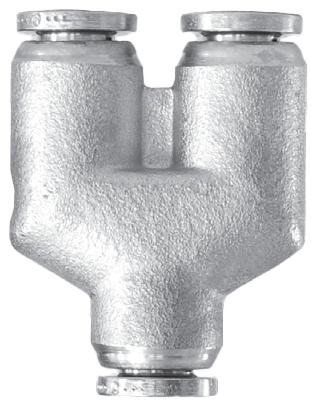

F100B
F100B
close
F100B
F100B
