Category: STAINLESS STEEL FITTINGS

Notes: 0

Description

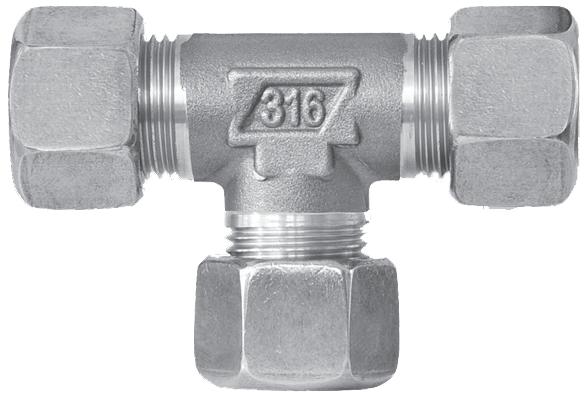

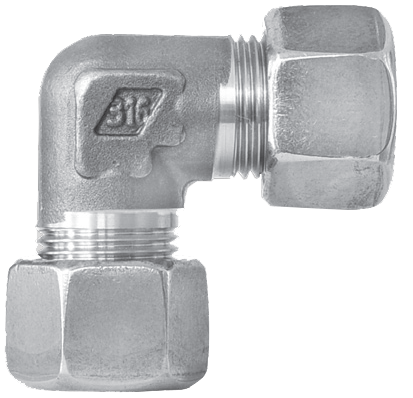

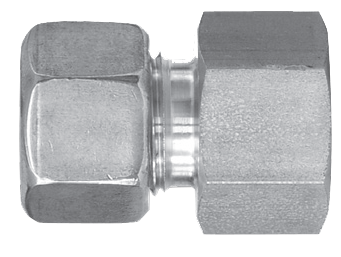

Compression fittings with sharp ogive made of stainless steel for the seal in accordance with DIN2353. Excellent for ole-dynamic and idraulic plants with high work pressures and high temperatures.

Main features

Made of AISI 316 stainless steel as per DIN 2353
Ideal for hi-pressure
Suitable for weldless connections of steel pipes

Threads:

ISO 228(BSP) cylindrical gas;
ISO 7 (BSPT) conical gas;

DIN 13 cylindrical metric Pipes usable: these pipe fittings are suitable for weldless connections of high pressure steel pipes as per DIN/ISO 1127 D4 class (±0,1% external nominal diameter with ±0,1mm minimal value) Maximum surface hardness: 90 HRB
Temperature: -60°C ÷ +400°C (with FKM sealing gasket: -20°C ÷ +200°C

Applications

Fluids: air, water, oil, aggressive fluids and environment, other fluids upon verification.

Components

The main construction components of the fittings of the 5000 series are:

AISI 316L stainless steel body
AISI 316L stainless steel nut with carbonitriding treatment ogive
