Category: A1-A2L-A3 SPECIALIST
Ways: 2/2
Notes:

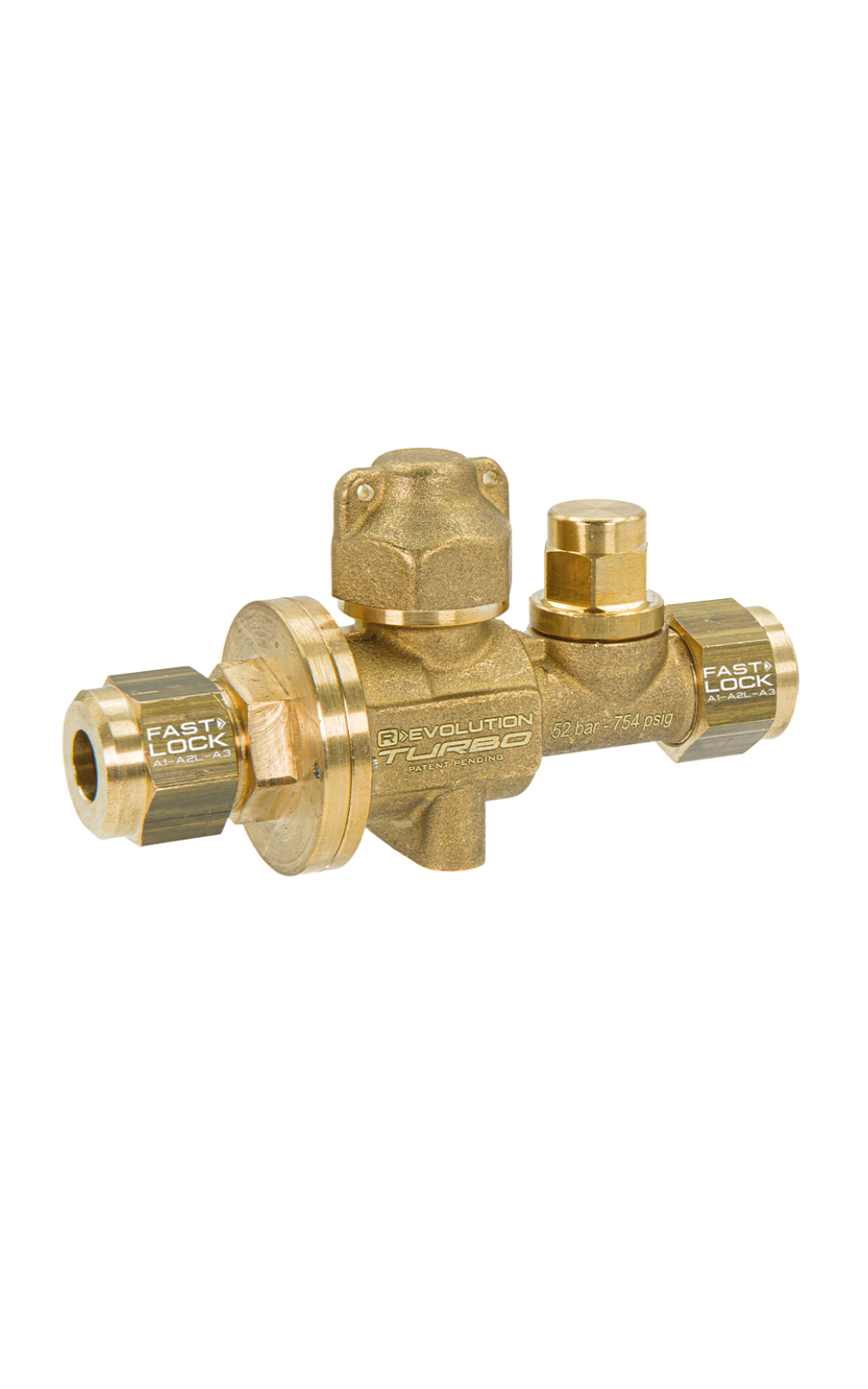

The 37000-FL
valve is engineered by OLAB for professional refrigeration circuits that
use A3-A2L refrigerants. It features the patented FastLock A3-A2L
system, which delivers a weld-free, rapid, and secure connection and
achieves 100% no-leakage over time without requiring specialized
personnel.
Its
high-precision brass body houses PTFE seats and a sealing system with dual
HNBR O-Rings, 100% PFAS-FREE and OLAB-certified, positioned at every
critical point to ensure tight sealing even under extreme stress. The operating
stem, manufactured from AISI 303 stainless steel, is designed for
long-term mechanical strength. An integrated charging port with a brass
hex cap and dual HNBR O-Rings allows safe filling and discharge with zero
leakage risk.
Every valve
is individually 100 % helium-tested and laser-marked with the production
date and serial number, guaranteeing lifetime traceability of its performance.
The 37000-FL operates from –50 °C to +150 °C (–58 °F to +302 °F) and
withstands working pressures up to 80 bar (1160 psi). Rugged,
serviceable, and fully compliant with the latest regulations, it combines
advanced technology with true sustainability.
Caratteristiche tecniche:
COMPATIBLE A3–A2L REFRIGERANT GASES
HFC, HFO, and HFO/HFC blends: R404A, R407C, R410A, R507, R32, R134a (up to +125°C / 257°F).
HFO and HFO/HFC blends: R1234ze, R448A, R449A, R450A, R452A, R1234yf.
HC: R290, R600, R600a.
Products equipped with HNBR seals must not be installed on systems using HCFCs (R22) or any refrigerants mixed with mineral oils or alkylbenzene lubricants.
Our HNBR compound seals have been specifically designed and manufactured for compatibility with A3 and A2L refrigerant gases (as defined in ASHRAE Standard 34). However, due to the countless variables involved in real-world applications—such as pressure, temperature, and mixing ratios—an application-specific validation on the system is always required.
NO WELDING
Maximum sealing reliability and structural resistance thanks to OLAB’s exclusive body pinning system.
FAST LOCK A3-A2L CONNECTION SYSTEM
Completely eliminates the need for welding, reducing installation time and cost while ensuring perfect sealing.
DOUBLE HNBR 100% PFAS-FREE O-RING CERTIFIED BY OLAB
Guarantees perfect sealing at every potential leak point.
INTEGRATED ACCESS FITTING WITH DOUBLE-GASKET CAP
Uncompromising safety with zero leakage.
BRASS CAP WITH GASKET
Ensures tightness even in case of accidental damage to the stem sealing elements.
OPERATING STEM IN STAINLESS STEEL
Built to last over time.
100% HELIUM TESTED
Each unit is individually tested in a state-of-the-art helium facility. Date and serial number are engraved to certify compliance and allow full traceability of recorded performance data.
