SERIES 200

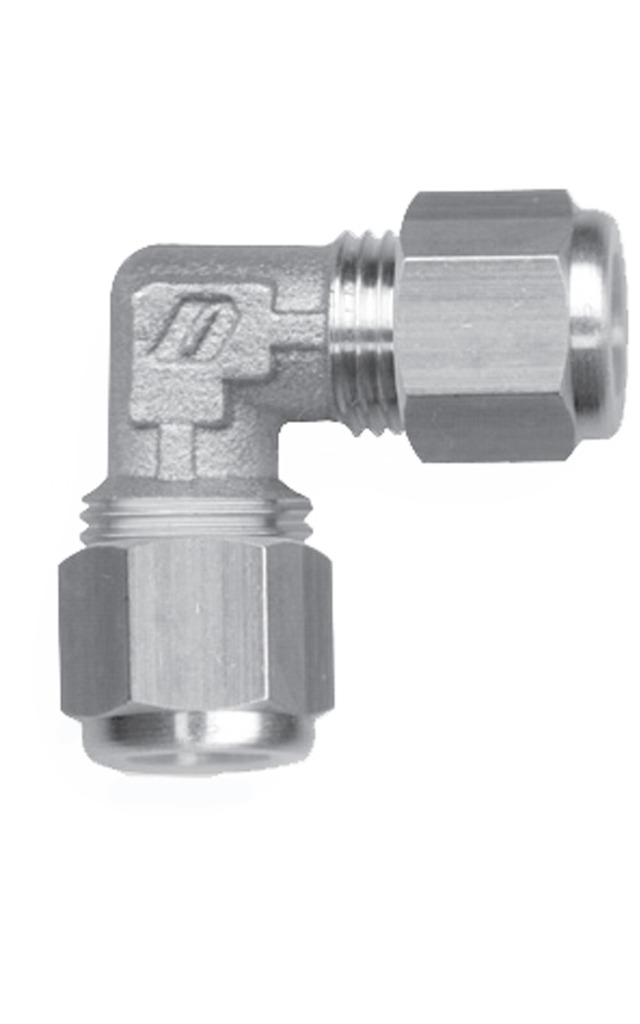

OGIVE FITTINGS FOR COPPER AND PLASTIC PIPES

Category: BRASS FITTINGS

Notes: 0

Description

OGIVE FITTINGS FOR COPPER AND PLASTIC PIPES
NICKEL PLATED BRASS BODY AND NUT
OGIVE: YELLOW BRASS (OT58)
DESIGNED FOR PROFESSIONAL HYDRAULIC AND PNEUMATIC SYSTEMS, FOR COPPER AND PLASTIC PIPES WITH THE USE OF THE REINFORCEMENT BUSH ART:247
PS: 40 BAR (check the technical data sheet of the pipe used)
TS: The temperature depends on the type of pipe used, therefore these values are to be defined according to the characteristics of the pipe

Main features

Small size
Metallic sealing (for ogive compression on the tube)
Versatility (for compatibility of fluids and use of pipes)

Threads:

ISO 228 cylindrical gas (BSP);
conical gas ISO 7 (BSPT)

Connecting pipes in copper and plastic pipes (with annealed copper and plastic pipes, the reinforcement bush art. 247 is required)
Temperature: check the technical data sheet of the tube you want to use.
Max pressure: 40 bar

Applications

Suitable for effective use in low pressure pneumatic, hydraulic and hydraulic circuits. Fluids: air, water, other low pressure fluids.

Components

The main construction components of the fittings of the 200 series are:

Nickel plated brass body and nut
Yellow brass ogive

Description Main features Applications Components

Small size
Metallic sealing (for ogive compression on the tube)
Versatility (for compatibility of fluids and use of pipes)

Threads:

ISO 228 cylindrical gas (BSP);
conical gas ISO 7 (BSPT)

Connecting pipes in copper and plastic pipes (with annealed copper and plastic pipes, the reinforcement bush art. 247 is required)
Temperature: check the technical data sheet of the tube you want to use.
Max pressure: 40 bar

Suitable for effective use in low pressure pneumatic, hydraulic and hydraulic circuits. Fluids: air, water, other low pressure fluids.

The main construction components of the fittings of the 200 series are:
