SERIES 300

Push-on fittings for plastic pipes

serie 300-27060b.jpg

Category: BRASS FITTINGS

Surface treatments applicable: TM1-TM4 upon request

Notes: 0

Push-on fittings for plastic pipes These fittings enable a simple reliable connection without elastomer seals. A seal is guaranteed for different types of pipe, and is created by the pipe necking the cone of the fitting with a nut being tightened.

  • Low cost
  • Small size

  • Threads ISO 228 (BSP) cylindrical gas; ISO 7 (BSPT) conical gas
  • Connecting pipes PA6, PA11, PA12, PTFE, FEP, Polyethylene, Polyurethane (diameter sized)
  • Temperature: check data sheet pipe
  • Pressure: nominal fitting pressure is always higher than maximum pipe pressure

Fluids: air, water, other low pressure fluids.

The main components of the 300 series fittings are:

  • Nickel-plated brass body
  • Nickel-plated brass nut

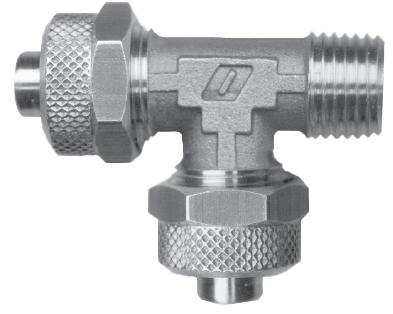

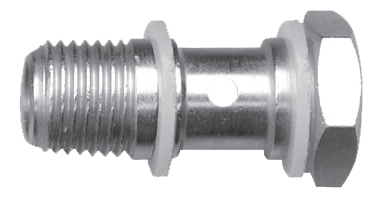

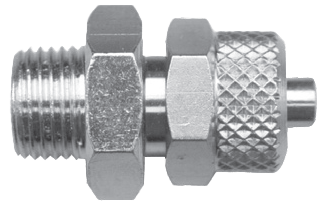

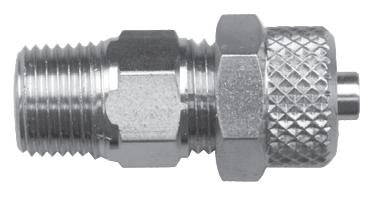

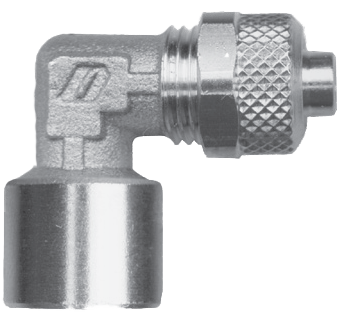

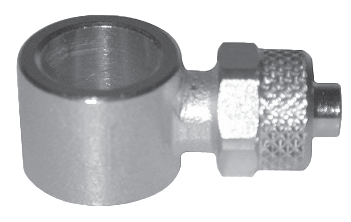

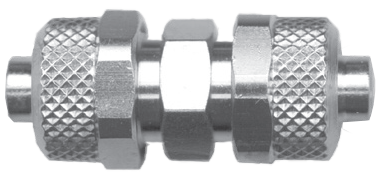

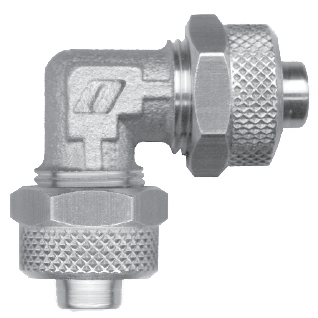

models
