SERIES FCL100

Push-in fittings for plastic pipes with double sealing O-Ring

PATENTED
SERIES FCL100 Push-in fittings for plastic pipes with double sealing O-Ring
FOOD CONTACT
FOOD CONTACT NSF
APPROVED TM4

Category: BRASS FITTINGS

Surface treatments applicable: TM4

Notes:

  • FAST ASSEMBLY
  • PERFECT SEAL guaranteed by the DOUBLE  O.RING made of FKM PLUS

Quick coupling fittings for plastic pipes with double sealing O-ring, FCL100 series. Series FCL100 has been specifically designed for use in the food industry. The stainless steel toothed washer seam solution makes it extremely easy to insert and remove pipes. Two O-ring seals appropriately separated by a PTFE spacer with increased pipe insertion depth prevent fittings from leaking, even when pipes are subjected to unexpected bending in sections immediately outside the release clip. Fluids: water, liquid food (upon compatibility verification).
  • FOOD CONTACT
  • 100% full sealing capacity
  • Double O-ring made of FKM food contact
  • Fast assembled
  • Durability

  • THREADS
    • ISO 228(BSP) cylindrical gas;
    • ISO 7(BSPT) conical gas
  • CONNECTIONG PIPES PA6, PA11, PA12, PTFE, FEP, Polyethylene, Polyurethane (diameter sized)
  • TEMPERATURE -15°C÷160°C (check data sheet pipe)
  • PRESSURE max 20 bar (check data sheet pipe)
  • TEST 100% of producton
"Food industry Fluids: water, food fluids (after checking compatibility). "
The main construction components of the fittings of the FCL100 series are:
  •  CW510L OT57-USA brass body with TM4 treatment
  •  Nickel-plated brass release sleeve
  •  Stainless steel locking ring
  • Sealing gasket made of FKM for food contact
models

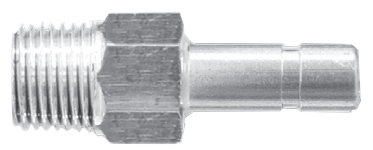

FCL-ADA
FCL-ADA

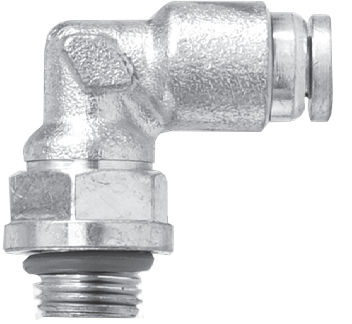

FCL-EG
FCL-EG

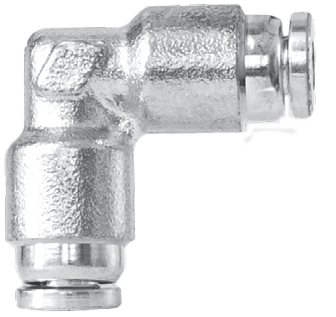

FCL-ELR
FCL-ELR

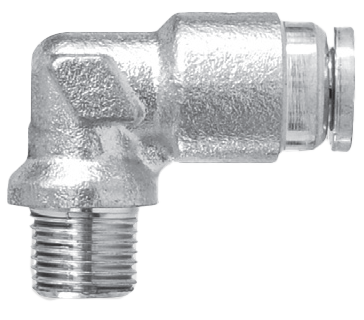

ERC
ERC
FCL-PRO
FCL-PRO
FCL-TAP
FCL-TAP

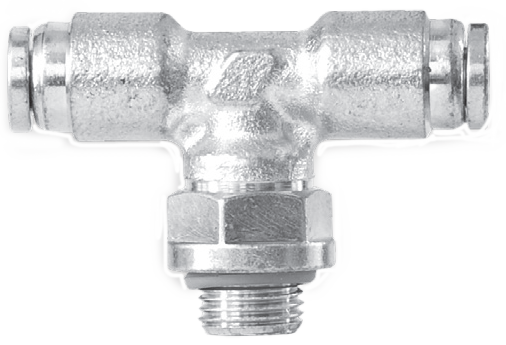

FCL-TGC
FCL-TGC

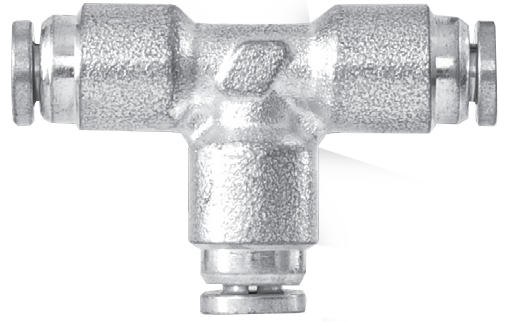

FCL-TLR
FCL-TLR

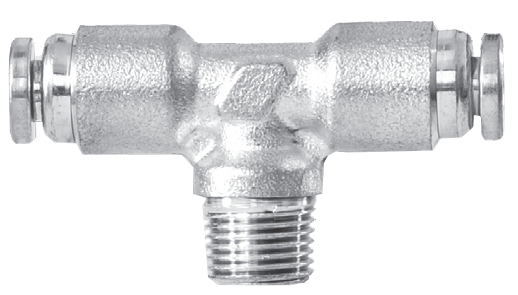

FCL-TRCC
FCL-TRCC

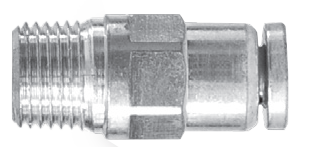

FCL-UMRC
FCL-UMRC

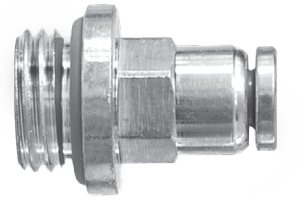

FCL-UMR
FCL-UMR
