REVOLUTION K10212

SHUT OFF VALVES FOR PROSHIELD SAFETY VALVES CONNECTION ON HIGH PRESSURE CO? REFRIGERATION SYSTEMS - BRASS BODY - STAINLESS STEEL CLOSING FLANGE - STAINLESS STEEL SCREWS - CW614N-OT58 FAST SYSTEM (PATENTED) SWIVEL BRASS FITTING - DOUBLE OLAB CERTIFIED 100%

ECOSYSTEM

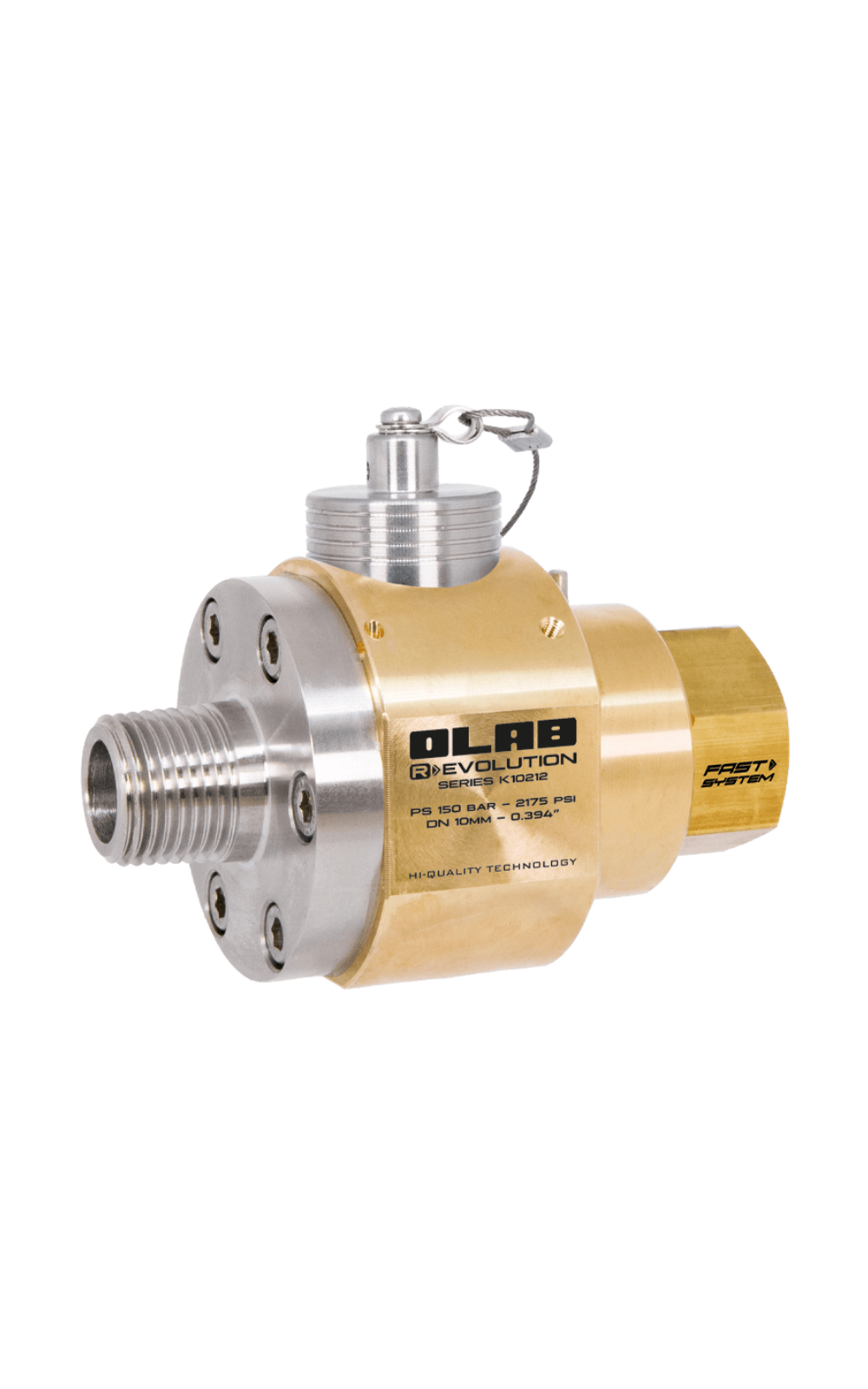

REVOLUTION K10212 CO2 (R744) SPECIALIST OLAB
CE 28384 STOP COVID EPDM

Category: CO2 (R744) SPECIALIST

Notes:

  • PS: 150 bar [2175 psi]
  • TS: -50°C ÷ +150°C [-58°F ÷ +302°F]
  • DN [mm]: 10 - 13,5 - 20
  • DN [in]: 0,39 - 0,53 - 0,78
CERTIFICATIONS: CE

3D File

Acceptance of the Treaty Personal data
Download File
Description

Revolution K10212 ball valve connects exclusively to ProShield safety valves through the FastSystem (Patented) interface, ensuring precise, leak-free installation.

Each potential leak point is sealed with double OLAB-certified, 100 % PFAS-FREE EPDM O-Rings, winner of the Innovation of the Year award at ATMO Europe 2024, ensuring perfect and stable sealing even under extreme conditions. The entire component is 100% PFAS-FREE, guaranteeing maximum environmental safety and full compliance with new regulations.


Main features

Caratteristiche tecniche:
  • Brass valve body
  • Threaded connection with FAST SYSTEM (PATENTED) swivel technology
  • Anti-tamper stainless steel protective cap
  • Stainless steel operating stem
  • Brass ball
  • External flanges made of stainless steel aisi 304 (30 mm or
    60 mm / 1.18 inches or 2.36 inches butt-welding pipe)
  • Flange fastening class A4-80 stainless steel screws with
    stainless steel screw washers on the flanges
  • 100% PFAS-FREE OLAB certified EPDM O.Ring
  • Double sealing O.Ring at each possible leakage point
  • PTFE sealing seats

Compatible safety valves: 40101, 40102, 40103, 40104, 40201, 40202, 40203, 40204, 40205.

Can be combined with shut-off valve 37000-FM-3.

Components

100% NO LEAKAGE
Total sealing up to 150 bar (2175 psi) ensured by double O-Rings in OLAB-certified EPDM 100% PFAS-FREE at every potential leakage point.

FASTSYSTEM (PATENTED) SWIVEL CONNECTION
Easy, quick, and secure installation

DOUBLE EPDM O-RING, 100% PFAS-FREE, OLAB-CERTIFIED
Winner of the Innovation of the Year at ATMOSummit Europe 2024. Perfect sealing at every potential leakage point.

EASY AND FAST INSTALLATION & REPLACEMENT
No need to cut any connection piping

EXTREMELY FAST ASSEMBLY AND MAXIMUM PERFORMANCE

EXCLUSIVE OLAB PROSHIELD SAFETY VALVE
Dedicated connection to OLAB ProShield safety valves, certified up to 300 bar
