Category: CO2 - R744 SPECIALIST
Notes:
OLAB

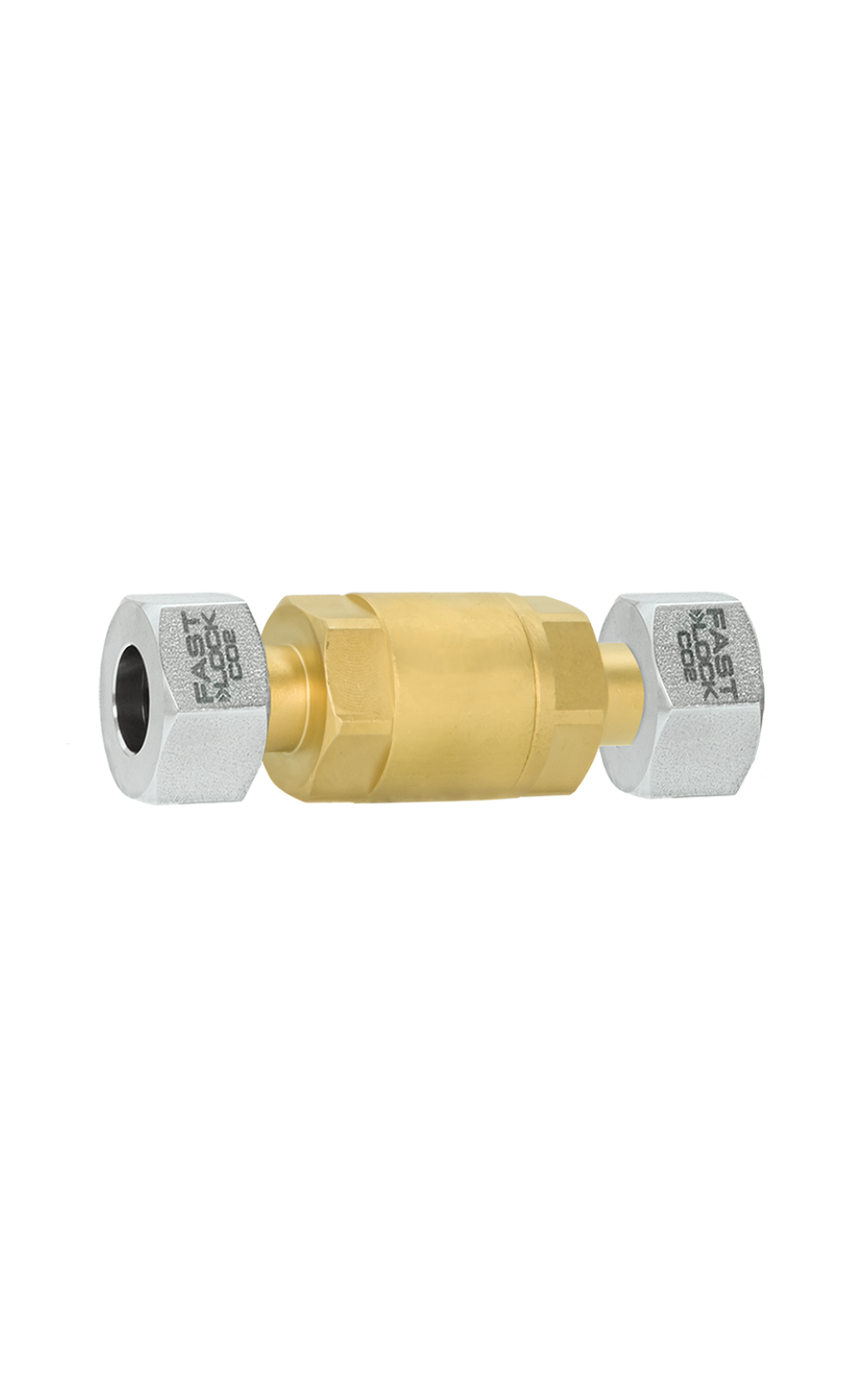

CheckPro is a
high-performance check valve designed for professional high-pressure CO2 (R744)
systems, where reliability, tight sealing, and quick installation are critical.
The Fast Lock CO2 connection allows rapid, weld-free assembly,
eliminating any risk of damaging seals or internal parts during installation
and delivering perfect leak-tightness from the very first use.
Sealing is
provided by a PTFE seat combined with an OLAB-certified 100% PFAS-FREE EPDM
O-Ring, winner of the Innovation of the Year award at ATMOSummit Europe
2024. This configuration guarantees maximum safety at operating pressures of 120–150
bar (1740–2175 psi) while maintaining long-term performance. The brass
body, together with an internal layout engineered to minimise pressure drop,
ensures optimal flow and mechanical robustness.
Each valve
is individually helium-tested 100% at OLAB and laser-marked with date
and serial number to ensure lifetime traceability of performance data. With a
temperature range of –50 °C to +150 °C (–58 °F to +302 °F), CheckPro is
classified as a LOW-PFAS IMPACT component thanks to its exclusive use of
OLAB-certified 100% PFAS-FREE EPDM seals and fully complies with UL 207
requirements for high-pressure devices.
Technical features:
NO
WELDING, NO LEAKAGE
Thanks to Fast Lock CO2 connections.
DOUBLE
100% PFAS-FREE EPDM O-RING, OLAB-CERTIFIED
Winner of the Innovation of the Year award at ATMOSummit Europe 2024. Secure
sealing.
HIGH
PRESSURE
Designed to hold tight at operating pressures of 120–150 bar (1740–2175 psi).
SAFETY
Engineered to ensure maximum system protection.
DOUBLE
SEAL
EPDM O-Ring paired with a PTFE washer.
100%
TESTED
Every valve is helium-tested; date and serial number are laser-marked for full
lifetime traceability of performance data.
