Category: INDIRECT AND MIXED ACTION SOLENOID VALVES
Ways: 2/2 N.C.
Notes: PS: 100 bar (1450 psi)
OPD: min 3 bar / max 90 bar (min 44 psi / max 1305 psi)
DN: 12mm (0,47")
CERTIFICATIONS: CE, IP65

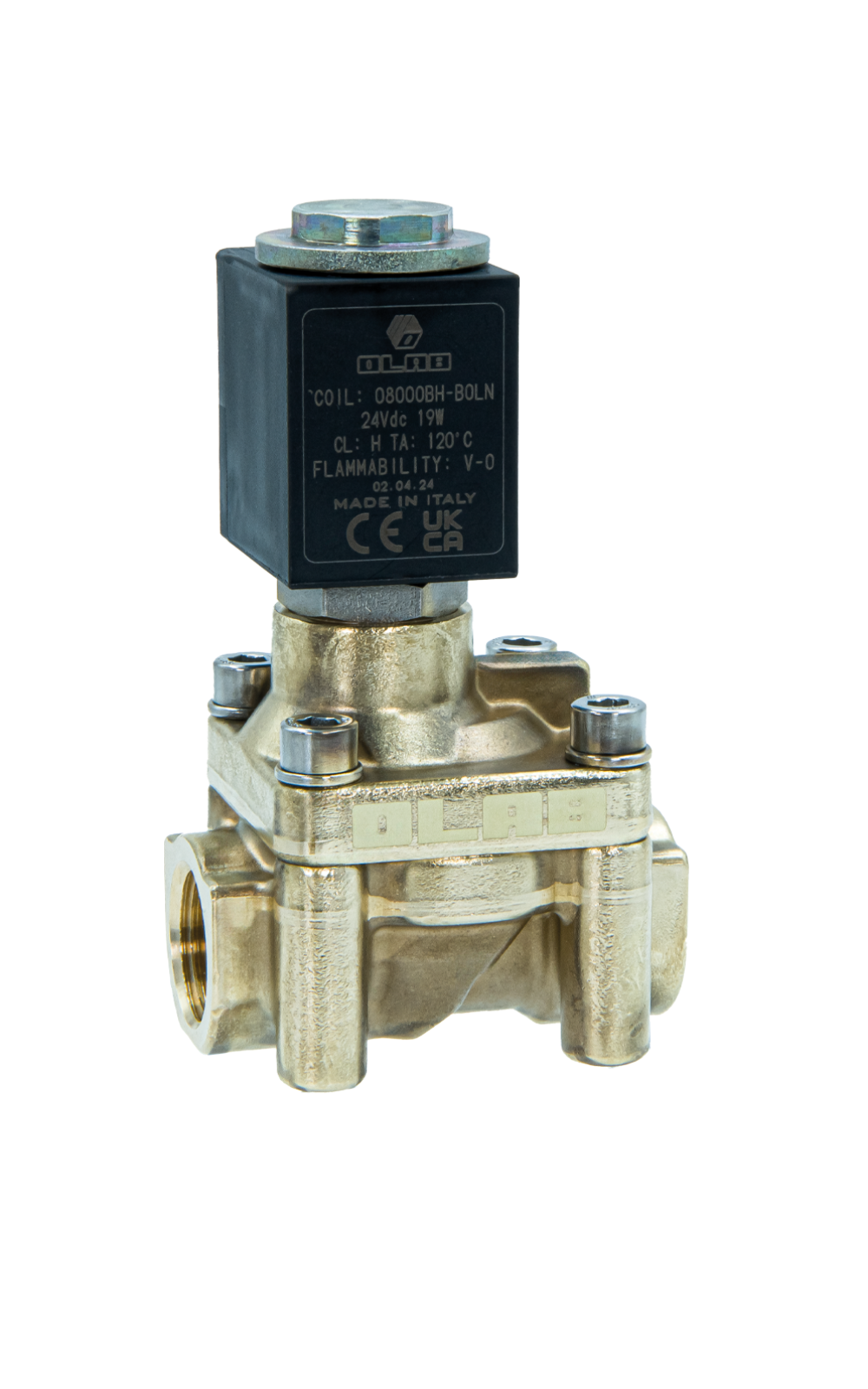

The K10085
Series is a 2/2-way normally closed piston pilot-operated solenoid valve belongs to the X-TREME PRO range, specifically developed for high-pressure operation, frequent cycling, and aggressive fluids typical of gantry, tunnel, or self-service wash stations.
Its CW617N
OT58 brass body, with ISO 228 female threads, side inlet, and
front outlet, makes it easy to integrate into modular assemblies or
compact manifolds.
The
internal assembly includes a PP-H piston, stainless steel seal seat,
AISI 303 insert, and a laser-welded AISI 304L stainless steel sleeve
using OLAB’s in-house technology—ensuring optimal hydraulic sealing and
long-lasting durability, even in high-cycle operations.
Sealing is
provided by NBR or OLAB-certified FKM Plus Hi-Performance gaskets,
compatible with high-temperature fluids, water, oils, and chemical agents.
The
electrical unit features the OLAB 8000BH coil (30 mm Ø14), with class
H insulation (180°C) and IP65 protection, making the valve suitable
for dusty or humid environments.
With a nominal
diameter (DN) of 12 mm (0.47"), a maximum pressure (PS) of 100 bar
(1450 psi), and an OPD range from 3 to 90 bar (44–1305 psi), the
K10085 Series is the right solution for applications that demand efficient
and safe flow control.
CE
certified, in
compliance with European standards for industrial system safety and
compatibility.
Technical features:
RELIABLE IP65 PROTECTION
Designed with an IP65 protection rating, the K10085 Series solenoid valve is fully sealed against dust and low-pressure water jets, ensuring dependable performance in humid and challenging industrial environments.
LASER-WELDED AISI 304L STAINLESS STEEL SLEEVE
The AISI 304L stainless steel sleeve, laser-welded using dedicated OLAB equipment, provides perfect hydraulic sealing, enhancing mechanical resistance and operational durability under pressure and thermal stress.
BUILT FOR LONG-LASTING PERFORMANCE
Made with a CW617N OT58 brass body, PP-H piston, stainless steel seat, and NBR or OLAB-certified FKM Plus Hi-Performance seals, the K10085 Series ensures stable, high-performance operation even at 100 bar pressure.
