SERIES 8000 N.O.

N.O. 2/2 WAYS SERVICEABLE SOLENOID VALVES -30 mm d.n. Ø14

serie 8000 NA-dc08dd.jpg

Category: DIRECT ACTION SOLENOID VALVES

Ways: 2/2

Surface treatments applicable: TM1-TM4 upon request

Notes: 0

The solenoid valves of the 8000 series are 2/2 ways, normally open, serviceable, with 30 mm coil d.n. Ø14

  • Direct action (minimum pressure not required)
  • Semi-professional/professional applications
  • Suitable to be cleaned inside
  • 30 mm coil

Air, water, steam, food & beverage. Other fluids after checking compatibility

The main construction components of the solenoid valves of the 8000 N.O. series are:

  • EN12165-CW617N forged brass body
  • EN12164-CW614N brass sleeve
  • AISI 430F stainless steel cores
  • AISI 302 stainless steel spring
  • Sealing gaskets: EPDM, FKM ( for food contact )
  • 30 mm H class coil

8000BH
close
8000BH

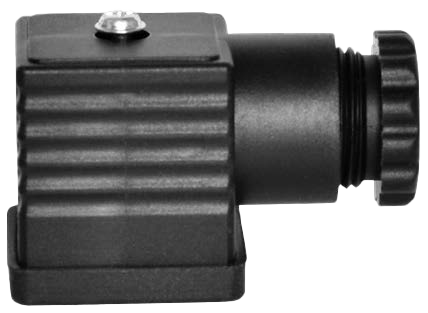

7000-CON
