FOOD CONTACT

Category: DIRECT ACTION SOLENOID VALVES

Ways: 3/2

Surface treatments applicable: no

Notes: 0

Description

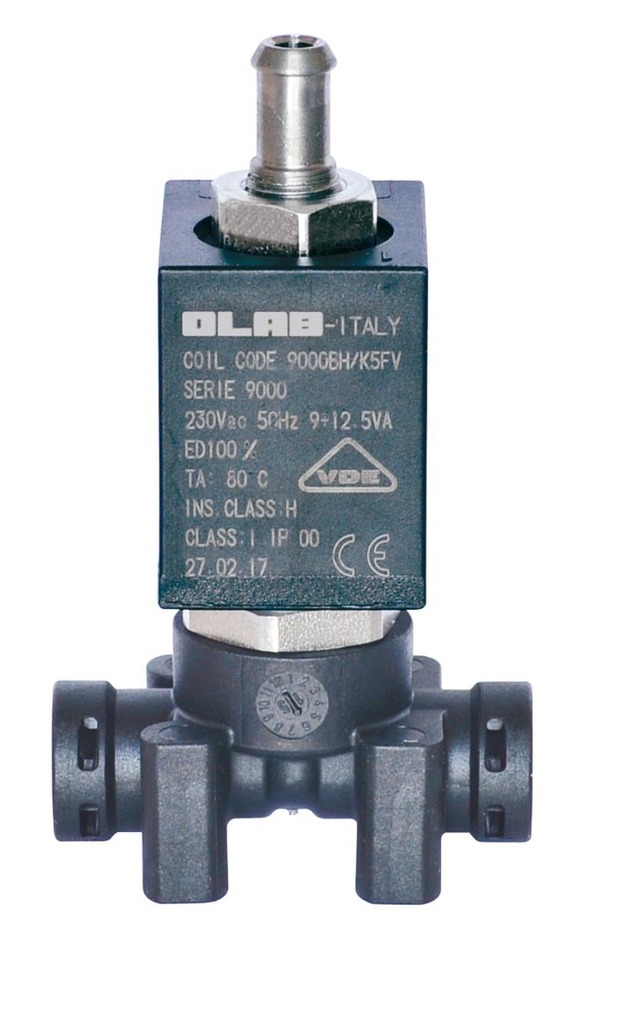

The solenoid valves of the 9900 series are 3/2-way, normally closed, serviceable, in food-grade thermoplastic material with 22 mm coil

Main features

Series 9000 variant with thermoplastic body
“fast” connection for d.n. Ø4mm teflon pipe beforhand ogived
Direct action (minimum pressure not required)
Suitable to be cleaned inside DN insert made of stainless steel for the maximum resistance
Low cost
Small size (22mm coil)

Applications

Air, water, steam, food & beverage. Other fluids after checking compatibility.

Components

The main construction components of the solenoid valves of the 9900 series are:

Thermoplastic for food contact body
EN12164-CW614N brass or AISI 303 stainless steel sleeve
AISI 302 stainless steel spring
Sealing gaskets: NBR, EPDM, FKM for food contact, FKM PLUS for food contact
22mm coil H class

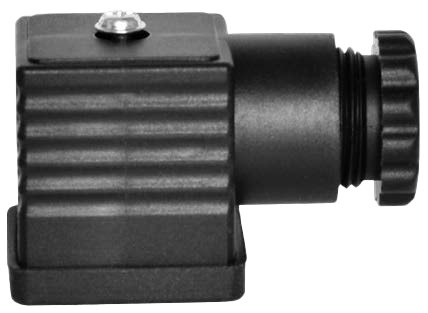

Accessories

Description Main features Applications Components Accessories

The solenoid valves of the 9900 series are 3/2-way, normally closed, serviceable, in food-grade thermoplastic material with 22 mm coil

Series 9000 variant with thermoplastic body
“fast” connection for d.n. Ø4mm teflon pipe beforhand ogived
Direct action (minimum pressure not required)
Suitable to be cleaned inside DN insert made of stainless steel for the maximum resistance
Low cost
Small size (22mm coil)

Air, water, steam, food & beverage. Other fluids after checking compatibility.

The main construction components of the solenoid valves of the 9900 series are:

Thermoplastic for food contact body
EN12164-CW614N brass or AISI 303 stainless steel sleeve
AISI 302 stainless steel spring
Sealing gaskets: NBR, EPDM, FKM for food contact, FKM PLUS for food contact
22mm coil H class

SERIES 9900

N.C. 3/2 ways serviceable solenoid valves food-grade thermoplastic - 22mm
